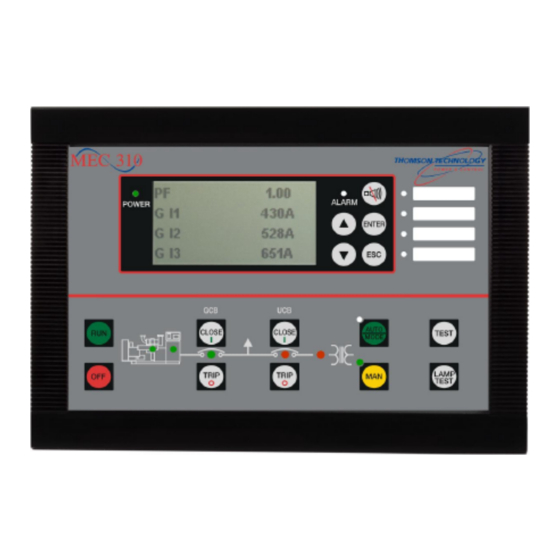

THOMSON MEC 310 - APPLICATION NOTES M-LOGIC Application Notes
M-logic internal logic controller
Hide thumbs
Also See for MEC 310 - APPLICATION NOTES M-LOGIC:
- Manual (22 pages) ,
- Application notes (18 pages) ,
- Operator's manual (11 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for THOMSON MEC 310 - APPLICATION NOTES M-LOGIC
Summary of Contents for THOMSON MEC 310 - APPLICATION NOTES M-LOGIC

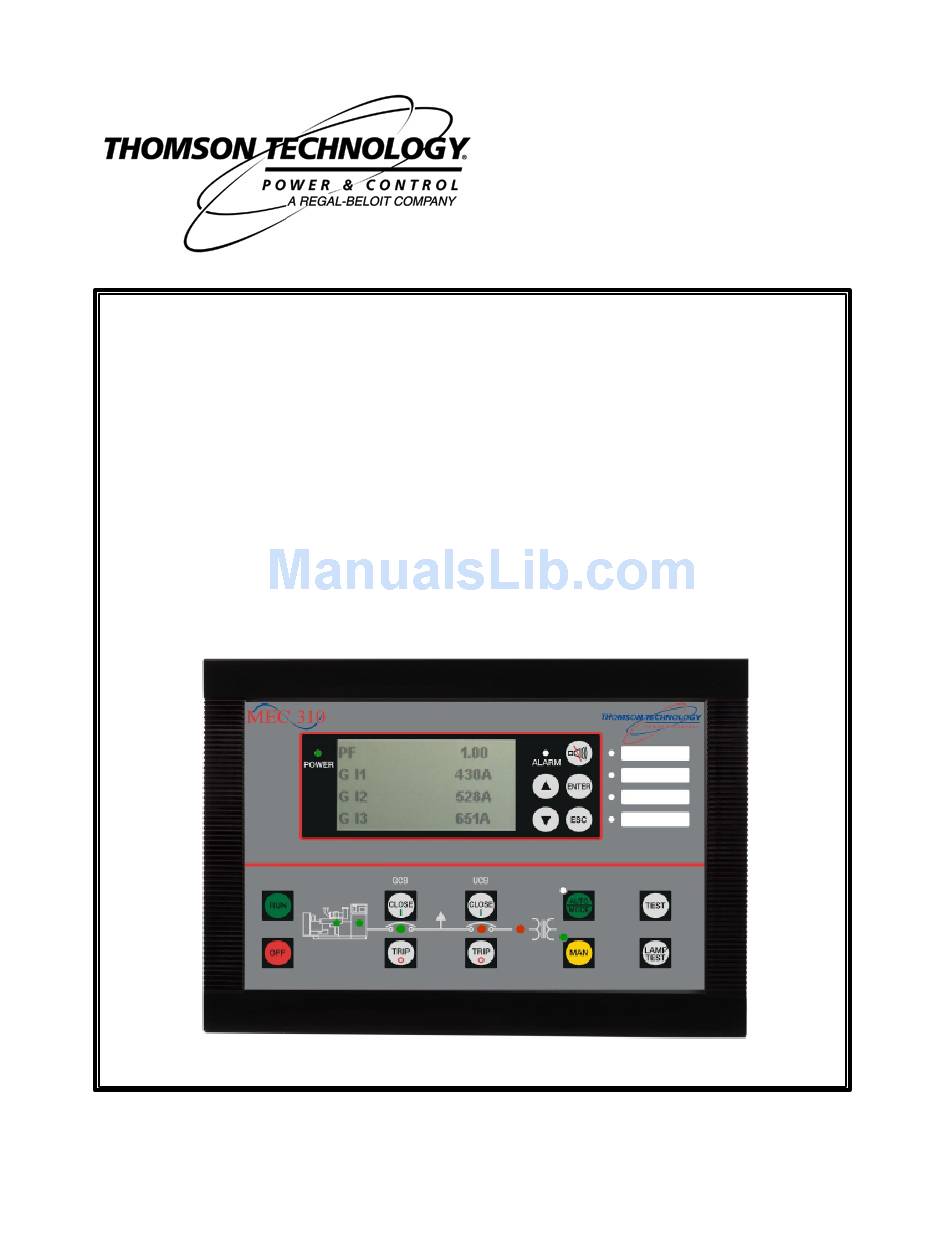

- Page 1 MEC 310 APPLICATION NOTES M-Logic Internal Logic Controller r. 0556B PM103 Rev 0 09/08/20 Street, Langley, BC Canada V1M 3B1 Ÿ Telephone (604) 888-0110 9087A – 198 Telefax (604) 888-3381 Ÿ E-Mail: info@thomsontechnology.com Ÿ www.thomsontechnology.com...
- Page 2 This document covers the following products: MEC 310 SW version 1.2X.X Utility Software TPS300 version 3.10.1 and later.
-
Page 3: Table Of Contents
............................4 NTRODUCTION CONFIGURATION ........................5 .............................. 5 TARTING ............................6 WRITE ............................6 OPEN ........................... 7 ASIC FUNCTIONS ............................9 EFINITIONS ............................. 9 XAMPLES LIST OF EVENTS AND COMMANDS ..................13 MEC 310 ............................13 PM103 R0 09/08/20 THOMSON TECHNOLOGY... -
Page 4: About This Document
M-Logic tool. Intended users The handbook is mainly intended for the person responsible for the unit setup. In most cases, this would be a panel builder designer. Naturally, other users might also find useful information in the handbook. -
Page 5: Warnings And Legal Information
Thomson Technology takes no responsibility for installation or operation of the generator set. If there is any doubt about how to install or operate the generator set controlled by the unit, the company responsible for the installation or the operation of the set must be contacted. - Page 6 MEC 310 APPLICATION NOTES, M-Logic Warnings The warnings indicate a potentially dangerous situation, which could result in death, personal injury or damaged equipment, if certain guidelines are not followed. PM103 R0 09/08/20 Page 3 THOMSON TECHNOLOGY...
-
Page 7: General Description
If 3 operators are not enough, a number of virtual events can be used to pass the control on to another line and carry on there. This makes it possible to build larger event based controls. -
Page 8: Configuration
MEC 310 APPLICATION NOTES, M-Logic 4. Configuration Starting Once TPS 300 has been started, there will be an icon on the lower left- hand side to activate M-Logic. Click the icon, and the following screen appears: PM103 R0 09/08/20 Page 5... -
Page 9: Read/Write
Read/write When the M-Logic screen is shown, the M-Logic toolbar appears at the top of the screen. The toolbar has two buttons which are used to write and read the M-Logic configuration to and from the unit. The M-Logic configuration can also be saved/opened to/from a file using the default save/open buttons. -
Page 10: Basic Functions
MEC 310 APPLICATION NOTES, M-Logic Basic functions The M-Logic consists of a number of “lines”, Logic 1, Logic 2 and so on. Each of these lines have 3 event settings, 2 operator settings, an enable tick box and one output setting. - Page 11 If this tick box is not ticked, the logic in question will not operate. Output This is the selection of the reaction of the system upon activation of the function. Note that the output has a delay function. If set to 0 s (default), there is no delay.
-
Page 12: Definitions
The Event A in Logic 2 is Virtual Event 1. This gives a total of 5 events that can be used in this logic sequence (A + B + C in Logic 1 and B + C in Logic 2). - Page 13 In this example, the button no. 1 on the EAP-2 (configured in a separate tool) is used to activate Virtual event 1. Logic 1 selects AMF if the mode is NOT AMF, and Logic 2 selects LTO mode if the mode is NOT LTO. In this way, one single button can be used for toggling between AMF and LTO modes.
- Page 14 MEC 310 APPLICATION NOTES, M-Logic Click button 1 and you select this: The item text can be written freely and printed, so it can be put in the EAP-2 front pockets. Click OK and close the EAP-2 window. Select M-Logic (bottom left-hand side).
- Page 15 The button of the EAP-2 must be set to activate Virtual Event 1 (VE 1) (in this case). In Logic 1, the VE 1 will activate the relay output (26). At the same time, the relay output (26) will remain ON, unless Virtual Event 2 (VE 2) is activated (AND NOT VE 2).
-
Page 16: List Of Events And Commands
The terms used in the lists are those used in the Designer’s Reference Handbook and the description of options. Please refer to these documents for detailed explanations. If there are no references to the function in question, the reference can be found in the Designer’s Reference Handbook. MEC 310... - Page 17 Fail class Warning Trip GB Trip and stop Shutdown Command Command timer 1-8 The command timers will issue a 1 s timers pulse, enough to trigger an event. Operators Operator Description Notes Using OR between 2 events means that the output will activate when one of these activates.
- Page 18 “alarm ack.” when in AUTO running mode. Inhibit ext. comm. Inhibits alarms related to engine communication (option J). Inhibit 1 Inhibit 1, 2 and 3 are used for alarm inhibit. Remember to activate inhibit in Inhibit 2 the alarm in question. Inhibit 3 Buzzer Activate buzzer on main unit Main unit is the MEC 310 unit.
- Page 19 MEC 310 APPLICATION NOTES, M-Logic Thomson Technology reserves the right to change any of the above. PM103 R0 09/08/20 Page 16 THOMSON TECHNOLOGY...
