REGISTER MAP TAB (ADVANCED MODE ONLY)

Register Tree
The register maps nested list (Label 32 in Figure 20) shows the
full register map in a tree control. Each register is shown.
Clicking the expand button next to each register shows all the
bit fields contained within that register.
Register Tree Search
The register tree search box (Label 33 in Figure 20) allows the
user to search the tree for any register or bit field. Enter a value
into this field to filter the register tree.
Register and Bit Field Control
The register and bit field control section (Label 34 in Figure 20)
allows the user to change the individual bit of the register
selected in the register tree by clicking the bits or by programming
the register value directly into the number control field (Label
35 in Figure 20). This control also shows all bit fields for the
selected register. Change the values by using a dropdown box
(Label 36 in Figure 20) or by selecting or clearing a checkbox
(Label 37 in Figure 20).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
User Guide

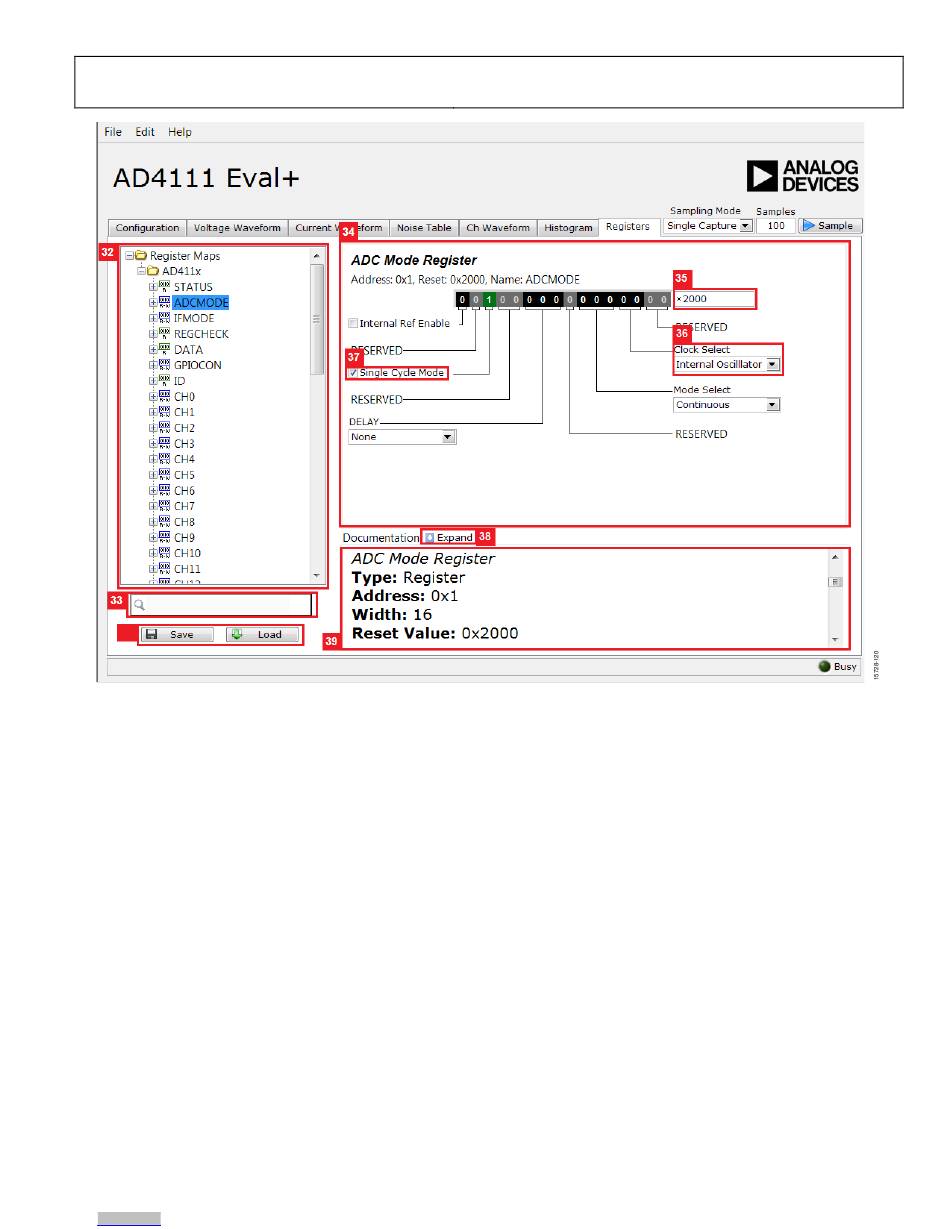

Figure 20. Registers Tab of the AD4111 Eval+ Software
Documentation
The Documentation field (Label 39 in Figure 20) contains the
documentation for the register or the bit field selected. This
field can be updated by selecting a register or bit field in the
register tree or hovering over the register or bit field in the
register tree or register control. This documentation can also be
displayed in a separate window by clicking the expand button
(Label 38 in Figure 20).
Save and Load
Save and Load (Label 40 in Figure 20) allow the user to save the
current register map setting to a file and to load the setting from
the same file, respectively.

EXITING THE SOFTWARE

To exit the software, click the Close button at the top right
corner of the main window.
