Preparing the Cable Cubby F55 UT
The Cable Cubby F55 UT enclosure supports Flex55 and EU modules, which can be installed in a variety of combinations
(see the illustration below). These modules can be installed either before or after the F55 UT installation. Note that optional
Retractor modules can only be installed (with the appropriate brackets, sold seperately) in the left and right ends of the
enclosure. Detailed retractor installation instructions are avaliable with the Retractor bracket kit and on the Extron website.
Flex55 SuperPlate 103
Flex55 AC+USB 130 US

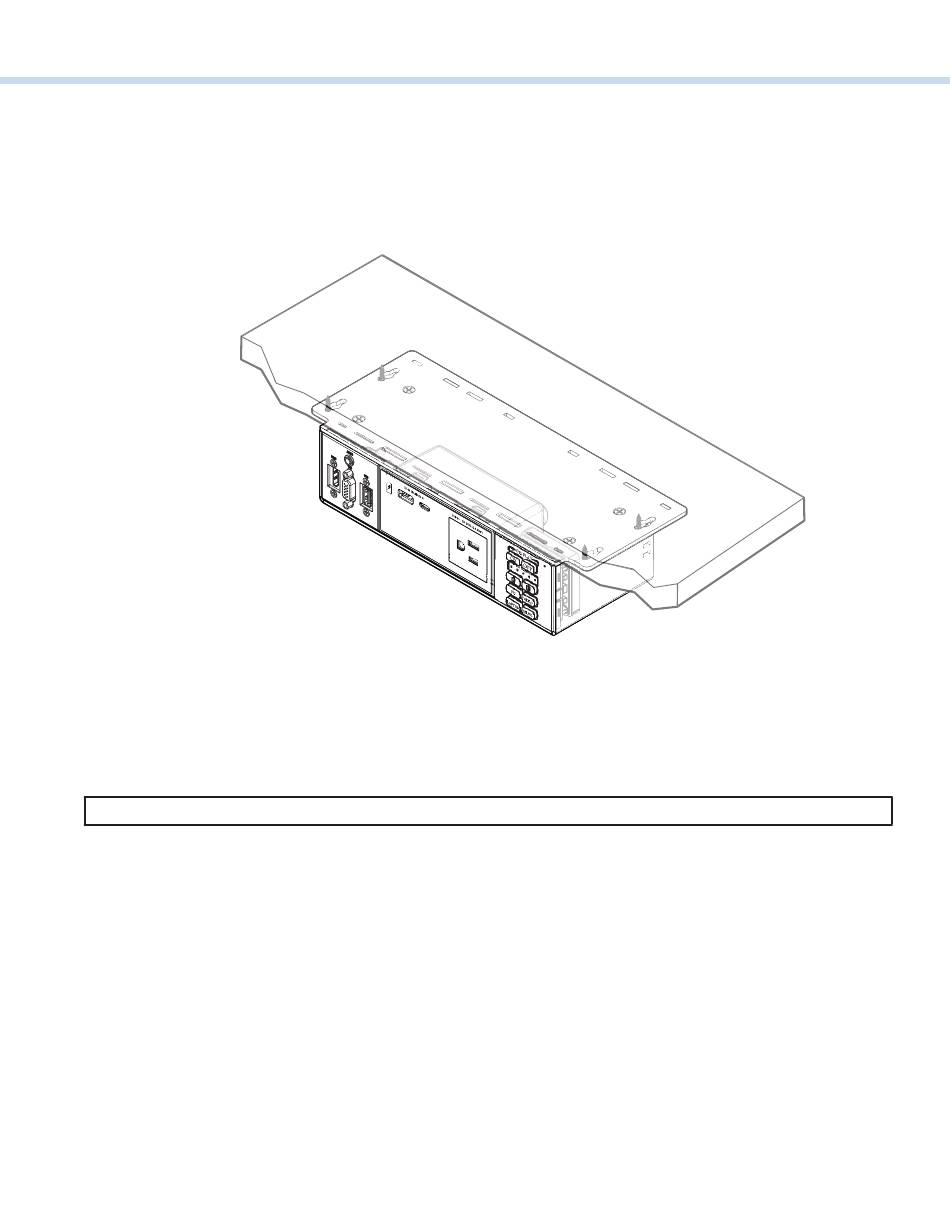

Figure 2. Cable Cubby F55 UT with AV, control, and power modules
NOTE: For a complete and up-to-date list of compatible modules, see the product page at www.extron.com.
