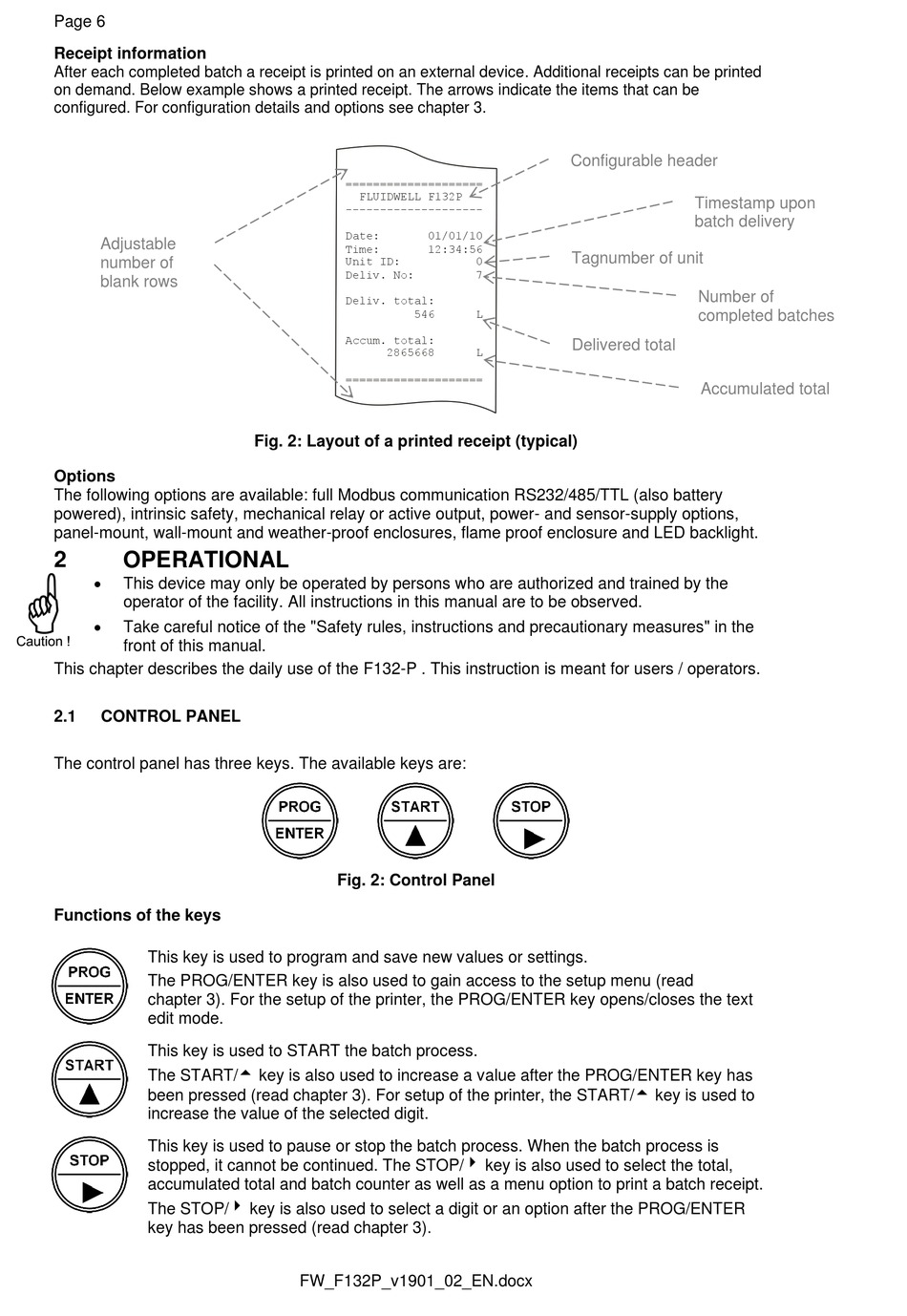

Page 6
Receipt information
After each completed batch a receipt is printed on an external device. Additional receipts can be printed
on demand. Below example shows a printed receipt. The arrows indicate the items that can be
configured. For configuration details and options see chapter 3.
Adjustable
number of
blank rows
Options
The following options are available: full Modbus communication RS232/485/TTL (also battery
powered), intrinsic safety, mechanical relay or active output, power- and sensor-supply options,
panel-mount, wall-mount and weather-proof enclosures, flame proof enclosure and LED backlight.
2

OPERATIONAL

•
This device may only be operated by persons who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
This chapter describes the daily use of the F132-P . This instruction is meant for users / operators.
2.1

CONTROL PANEL

The control panel has three keys. The available keys are:
Functions of the keys
This key is used to program and save new values or settings.
The PROG/ENTER key is also used to gain access to the setup menu (read
chapter 3). For the setup of the printer, the PROG/ENTER key opens/closes the text
edit mode.
This key is used to START the batch process.
The START/ key is also used to increase a value after the PROG/ENTER key has
been pressed (read chapter 3). For setup of the printer, the START/ key is used to
increase the value of the selected digit.
This key is used to pause or stop the batch process. When the batch process is
stopped, it cannot be continued. The STOP/ key is also used to select the total,
accumulated total and batch counter as well as a menu option to print a batch receipt.
The STOP/ key is also used to select a digit or an option after the PROG/ENTER
key has been pressed (read chapter 3).
====================
FLUIDWELL F132P
--------------------
Date:
Time:
Unit ID:
Deliv. No:
Deliv. total:
546
Accum. total:
2865668
====================
Fig. 2: Layout of a printed receipt (typical)

Fig. 2: Control Panel

FW_F132P_v1901_02_EN.docx
Configurable header
01/01/10
12:34:56
Tagnumber of unit
0
7
L
Delivered total
L
Timestamp upon
batch delivery
Number of
completed batches
Accumulated total
