1

INTRODUCTION

1.1

SYSTEM DESCRIPTION

Functions and features
The batch controller model F132-P is a microprocessor driven instrument designed for batching and
filling of small up to large quantities as well as displaying the flow rate, the total and the accumulated
total. This product has been designed with a focus on:
•
ultra-low power consumption to allow long-life battery powered applications (type PB/PC);
•
intrinsic safety for use in hazardous applications (type XI);
•
several mounting possibilities with aluminum or GRP enclosures for harsh industrial
surroundings;
•
ability to process all types of flowmeter signals;
•
transmitting possibilities with analog / pulse outputs;
•
receipt printer interface to print completed batch receipts.
Flowmeter input
This manual describes the unit with a pulse input from the flowmeter. Other versions are available to
process (0)4-20mA signals.
One flowmeter with a passive or active pulse, Namur or sine wave (coil) signal output can be
connected to the F132-P. To power the sensor, several options are available.
Configuration of the F132-P
The F132-P is designed for use in many types of applications. For that reason, a setup menu is
available to program the F132-P according to your specific requirements.
The setup includes several important features, such as K-Factors, engineering units, signal
selection, power management (to extend battery life-time), etc. All settings are stored in a non-
volatile memory and therefore kept in the event of a power failure or an exhausted battery.
Display information
The unit has a LCD with (optional) backlight to show the process information, status and alarm messages.
The display refresh rate is programmed in the setup menu.
At a key press, the display refresh rate will switch to FAST for 30 seconds. When 'OFF' is selected,
the display goes off after 30 seconds after the last key press. The display temporarily comes on after
a key press.
A backup of the total and accumulated total in EEPROM memory is made every minute.

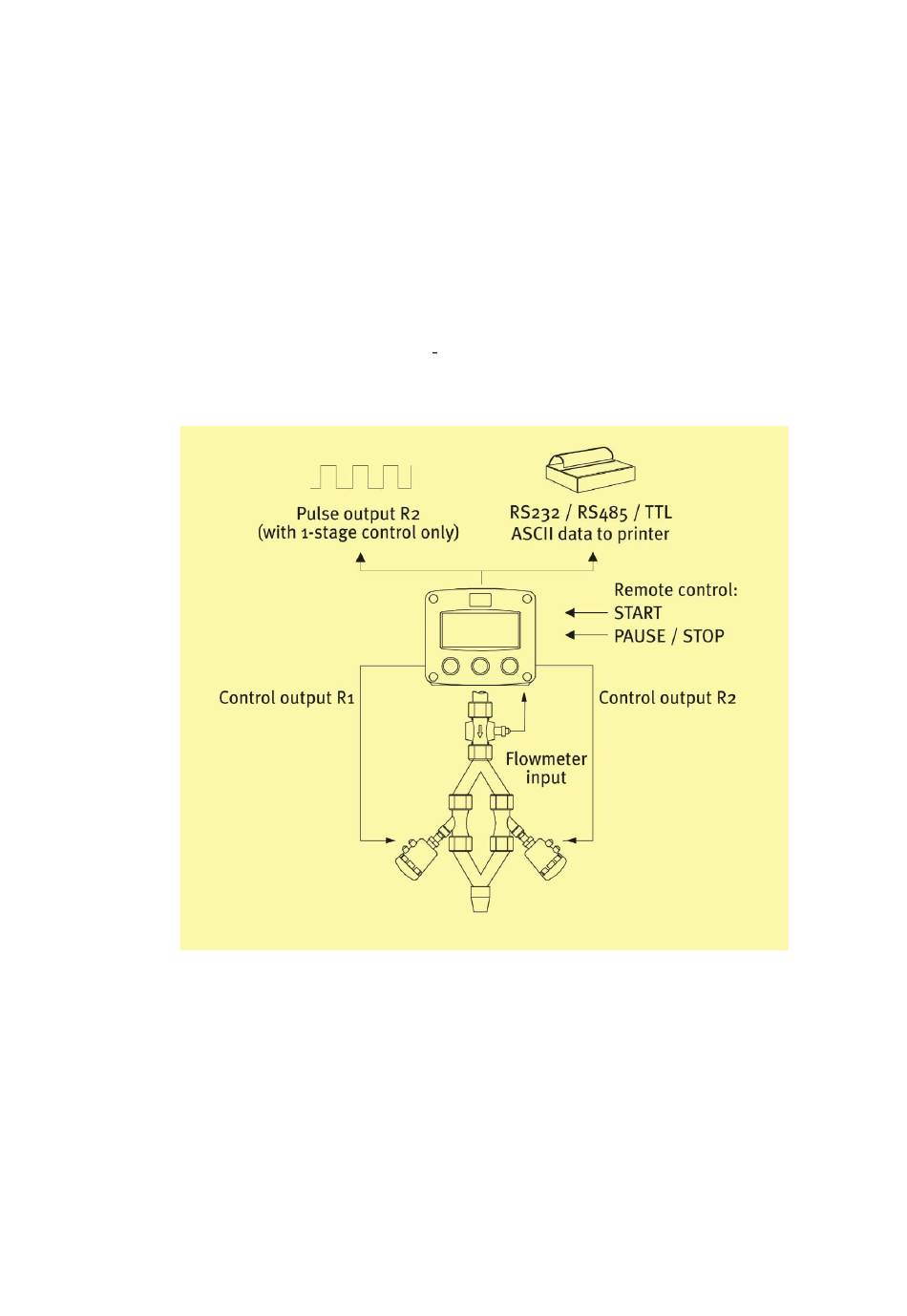

Fig. 1: Typical application
