Honda HRM4000EC Owner's Manual

Honda HRM4000EC Owner's Manual

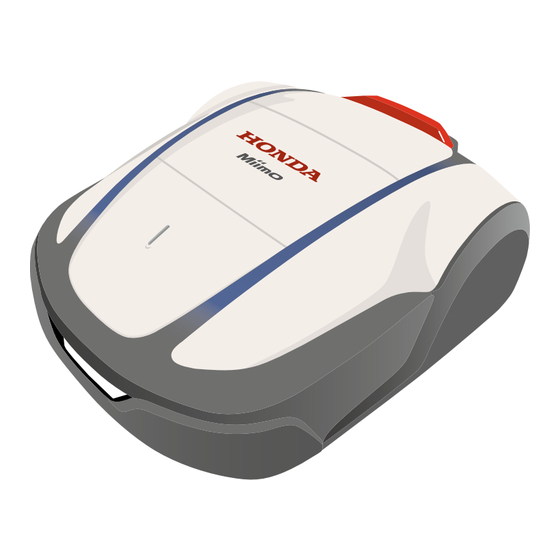

Robotic lawnmower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Robotic
Lawnmower
HRM4000Live
Service & Support
Owner's Manual
Original Instructions
https://www.hondappsv.com/HME/
Please refer to "5.Mii-monitor Preparation" how to install the Mii-monitor with mobile network and Bluetooth
connectivity.
®

Advertisement

Table of Contents
loading

Related Manuals for Honda HRM4000EC

Summary of Contents for Honda HRM4000EC

  • Page 1 Robotic Lawnmower HRM4000Live Service & Support Owner’s Manual Original Instructions https://www.hondappsv.com/HME/ Please refer to "5.Mii-monitor Preparation" how to install the Mii-monitor with mobile network and Bluetooth connectivity. ®...
  • Page 4 Congratulations on your selection of a Honda Robotic Lawnmower. We are confident that you will enjoy the benefit of your Honda Robotic Lawnmower as we take great pride in creating the finest quality lawn care products. We want to help you get the best results from your new robotic lawnmower and to operate it safely. This manual contains all the information on how to do that;...

  • Page 5: Table Of Contents

    CONTENTS Setting Safety Instructions Preparation Menu Settings - Component identification - Setting the work timer (M page 11) (M page 40) - Control panel and - Setting the lawnmower operation Home screen (M page 13) (M page 44) - Installation (M page 15) - Checking the system - Setting up the lawnmower (M page 62)
  • Page 6 1 OVERVIEW ........................4 How the Honda Robotic Lawnmower works ..4 2 SAFETY INSTRUCTIONS ..................6 Precautions ..........6 Observe the following points for your safety ... 8 Label locations ..........10 3 PREPARATION ....................... 11 Component identification ......11 Control panel and Home screen ....

  • Page 7: Overview

    How the Honda Robotic Lawnmower works OVERVIEW How the Honda Robotic Lawnmower works The mowing area is determined by the boundary wire that emits a signal; when the lawnmower detects the boundary it turns and it cuts the grass randomly. When battery starts running out, it goes back to the docking station.
  • Page 8 How the Honda Robotic Lawnmower works Laying boundary wire The boundary wire location determines the parameters of the mowing area, this area may consist of multiple sections in which the lawnmower can operate. For mowing start point setup and detailed information please see “4 MENU SETTINGS” (M page 38).

  • Page 9: Safety Instructions

    Precautions SAFETY INSTRUCTIONS Precautions Carefully observe the following precautions. N WARNING • Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with this owner’s manual to use the lawnmower. Local regulations may restrict the age of the operator.
  • Page 10 Precautions • Parts of this product may become warm in direct sunlight. Make sure you do not touch these parts if they become extremely hot or you may burn yourself. • Do not charge the lawnmower with anything other than the docking station. An accident may occur or the lawnmower may be damaged.

  • Page 11: Observe The Following Points For Your Safety

    Observe the following points for your safety Observe the following points for your safety N WARNING • Do not puncture, crush, short circuit the battery. • Under normal conditions of use, the electrode materials and the electrolyte they contain are hermetically sealed, provided that the integrity of the battery is preserved and the solder remains intact.
  • Page 12 • Use this AC adapter by children shall be under the full supervision of parents. • When extending the cord on the output side of the AC adapter, use an extension cord specified by Honda. • Make sure that the contents of “SAFETY INSTRUCTIONS” are absolutely clear to persons who may come in contact with the robotic lawnmower.

  • Page 13: Label Locations

    You are also asked to carefully read the safety regulations in the applicable chapter of this handbook. The Honda Robotic Lawnmower is designed to give safe and dependable service if operated according to instructions.

  • Page 14: Preparation

    Component identification PREPARATION Component identification Body Top view Bottom view Upper charging socket Lower charging socket Front (caster) wheels (Ï2) Blade disc Control panel Blades (Ï3) Carrying area Manual STOP button When you press the manual Rear (drive) wheels (Ï2) STOP button, the control panel cover pops up. Docking station The lawnmower recharges at the docking station, and returns to the docking station Charging plug when mowing is finished or the battery’s...
  • Page 15 Component identification Supplied items AC adapter Extension cord Screws Connectors for the boundary wire and Install the AC adapter off If the power cord of the Fix with the screws on the shortcut wire the ground. After making AC adapter is not long the ground when laying all other connections, enough, you can extend the docking station.

  • Page 16: Control Panel And Home Screen (M

    Control panel and Home screen Control panel and Home screen Control panel (Up/down) buttons Display Press to navigate to the previous/ The home screen and menus next item in the display. can be seen here while the G (Back) button lawnmower is turned on. Press to return to the previous menu in the display.
  • Page 17 Control panel and Home screen Home screen operation • Displaying the menu screen Select [Menu] on the home screen with the button on the control panel and press the H button. Sat 25/NOV 12:02 Menu top screen is displayed. Menu For details on the menu screen, see “4 MENU SETTINGS” 1 .Wor k ti m er page 38).

  • Page 18: Installation

    Installation Installation We recommend that an authorised Honda dealer performs the installation of your Robotic Lawnmower. Checking conditions for installation Check with the dealer that performed the installation if the docking station and boundary wire are installed according to the conditions below. Also periodically confirm that these conditions are still met.
  • Page 19 Installation Image Condition Example of correct installation The lines in the illustration are distinguished as follows. Boundary wire Shortcut wire Pattern 1 Pattern 1: Perpendicular installation Connect the docking station perpendicular to Without shortcut wires the wire. within 30 cm 0 cm or more With shortcut wires Lay the shortcut wires along the side of the station.
  • Page 20 Installation Image Condition 5 cm or less With shortcut wires Lay the shortcut wires along the left and right sides of the docking station. Lay the boundary wire and the shortcut wire with an interval of 30 cm or more. Lay the shortcut wire at least 1m straight away Shortcut from the docking station’s back.
  • Page 21 Installation Image Condition With shortcut wires Lay the boundary wire around 30 cm or more apart from the docking station sides. Lay the boundary wire and the shortcut wire with an interval of 30 cm or more. Lay the shortcut wire at least 1m straight away from the docking station’s back.
  • Page 22 Installation Image Condition Select Pattern 4 for the following example. 1 m – 3 m 1 m – 3 m 1 m – 3 m...
  • Page 23 Installation Conditions for laying the boundary wire Image Condition Height of objects which the lawnmower might run on top of Lay boundary wire around objects which the lawnmower might run on top of (e.g. rocks, tree roots, etc.); these objects must be removed from the work area. Maximum Crossed The boundary wire entry and exit points for a...
  • Page 24 Installation Image Condition With shortcut wire The shortcut wire can be laid on slopes of less Less than than 15°(27%). 15° (27%) If the shortcut wire is laid on a slope of less than 15°(27%), lay it obliquely to the slope. Boundary wire should be laid so that there is no excess wire.
  • Page 25 Installation Installing boundary wire and connecting to the docking station Image Operation Set the boundary wire by using the “LAWN Boundary wire DIAGRAM” (M page 109). • Leave enough wire to ensure that small adjustments can be made, double backing outside of the loop is acceptable. • Do not fix the wire until finish the layout. •...

  • Page 26: Setting Up The Lawnmower

    Setting up the lawnmower Setting up the lawnmower When turning the lawnmower on initially, the initial settings will appear. Through the initial settings, you can configure the display language, internal date and time, and create your PIN (Personal Identification Number). Once initial settings are done, you can configure the settings for the mowing operation of your lawnmower using the setup wizard.
  • Page 27 Setting up the lawnmower Initial settings You can execute the setup wizard not only on the control panel of the lawnmower, but also in Mii-monitor. If you have not yet installed Mii-monitor, refer to “5 Mii-monitor Preparation” (M page 73). When turning the lawnmower on initially, the initial settings will appear to set the display language, internal date and time, and create your PIN (Personal Identification Number).

  • Page 28: Usage

    Setting up the lawnmower Configuring the settings through the setup wizard This section explains the setup wizard procedure using the control panel on the lawnmower. The setup wizard will guide you to configure the settings for your mowing operation as follows: Configuring and testing the Menu name Usage settings [1. Cutting height] For setting the height of the - Blade height lawnmower blades.
  • Page 29 Setting up the lawnmower Setting the cutting height Through this setting, you can set the height of the lawnmower blades. Select [1.Setup wizard] and press the Select inst all menu button. 1.Setup wi zard Setup wizard top screen is displayed. 2.Advanc ed s etup 3.Res tart init ial s etup Fi ni s h Setup wizard Select [1.Cutting height] and press the H button.
  • Page 30 Setting up the lawnmower Set the “Start cutting height” with the buttons Cutt ing height or number buttons and press the H button. Start height 60(max ) NOTE: - We recommend that your lawn is cut to a height of less than 65mm before using Miimo. - If you selected [1.Auto setup], the cutting height 40(min) will decrease 5 to 20 mm per week.
  • Page 31 Setting up the lawnmower Setting the garden layout Through this setting, you can configure the information of your garden layout for operating the lawnmower. Setup wizard [2.Garden layout] is selected. Press the H button to configure the garden layout. Garden layout screen is displayed. 1.Cutting height 2.G arden lay ou t 3.Start points 4.T es t s tart points 5.Work timer Select the signal type and number of the shortcut Garden layout...
  • Page 32 Setting up the lawnmower Setting the start points Through this setting, you can set the starting point to operate the lawnmower. If you set the start points and combine them with the settings of work timer, you can effectively mow your garden. Select [3.Start points] and press the button Setup wizard to configure the start points.
  • Page 33 Setting up the lawnmower Testing the start points Through this testing, you can check the start points which you added in [3.Start points]. NOTE: - Perform each test when the lawnmower is connected to the docking station. Select [4.Test start points] and press the Setup wizard button to check the start points. 1.Cutting height 2.G arden lay ou t 3.Start points 4.T es t s tart points...
  • Page 34 Setting up the lawnmower Select [Yes] or [No] to the question of the test result Test start points and press H button. If you select [Yes], the Mowing start points screen is Do y ou want to modif y t he displayed to configure the start point settings. s tart point? If you select [No], go to step 4-7. NOTE: Ye s - For details on the start point settings, see step 3-3...
  • Page 35 Setting up the lawnmower Setting the work timer With this setting, you can configure the work day and work time at which the lawnmower operates in the Auto mode. Setup wizard Select [5.Work timer] and press the H button to configure the work day and work time. 1.Cutting height 2.G arden lay ou t 3.Start points 4.T es t s tart points 5.Work timer Select [1. Auto fill up timer] or [2. Manual setup] and Work timer...
  • Page 36 Setting up the lawnmower Confirm the days which are automatically selected Work timer referring to the boundary wire length and garden size. Select [NEXT] and press the H button to Minimum day s required proceed to the timer setting screen. MO N NOTE: T HU F RI - You can select other days to operate the NEXT lawnmower. If you select [1.Auto fill up timer] in step 5-2, confirm the days which are automatically configured referring to the boundary wire length and garden size. If you do not change the setting, select [OK] and press the H button. Go to step 5-11. If you want to change the work time, select the day and press the H button to change the work time of the lawnmower.
  • Page 37 Setting up the lawnmower Select [OK] and press the H button. Confirm the achieved and recommended hours per Work timer week. Select [NEXT] or [No] and press the H button. If you select [NEXT], go to step 5-12. Achiev ed If you select [No], go to step 5-5. 10hrs/ week Rec ommended NOTE: 10hrs/ week - If the set time is shorter than the NEXT [Recommended] time, the Achieved value will blink.
  • Page 38 Setting up the lawnmower Select your region and press the H button. Seas onal timer Selec t y our region. 1.North 2.North Cent ral 3.South Central 4.South Confirm each month’s ratio, select [NEXT]. Seasonal timer J AN 0 0 % J UL 1 0 0 % NOTE: F EB 0 0 0 % AUG 1 0 0 % M AR 0 4 0 % SEP 0 8 0 % - You can modify the values for operating the APR 0 6 0 % OCT 0 4 0 %...
  • Page 39 Setting up the lawnmower Configuring the settings through the advanced setup The advanced setup will guide you to configure the settings for your mowing operation as follows: Menu name Settings [1. Mowing settings] - Mowing pattern - Wire overlap NOTE: - Edge cutting - Spiral cutting - Making the detailed setting can reduce uncut leaves and cut efficiently.
  • Page 40 Setting up the lawnmower Mowing settings Select [ON] or [OFF] and press the H button. If you select [ON], go to step 1-6. Edge cutting If you select [OFF], go to step 1-8. O FF NEXT Select [CW], [ACW], or [Mixed] for the edge cutting Mowing settings direction. Edge cutting Select [NEXT] and press the H button. Direction Mixed NEXT Select the day of the week on which you want the Mowing sett ings lawnmower to run with the edge cutting function, Edge cut ting and press the H button.

  • Page 41: Menu Settings

    Menu overview MENU SETTINGS The control panel menus are used to set how the lawnmower operates. The menu settings can also be accessed in Mii-monitor. You can use Mii-monitor to save the settings. You can also restore saved settings. Menu overview NOTE: - We recommend having your dealer change these settings during installation.
  • Page 42 Menu overview Full menu diagram Menu Work timer Work timer : This indicates that the item can be set 1 From/To (Input value) MON/TUE/WED/THU/FRI/SAT/SUN through the Setup wizard. 2 From/To (Input value) Start points MON/TUE/WED/THU/FRI/SAT/SUN Point 1/2/3/4/5 Seasonal timer Auto setup JAN/FEB/MAR/APR/MAY/JUN/JUL/AUG/SEP/OCT/NOV/DEC (Input value) Manual setup Deactivate...

  • Page 43: Setting The Work Timer

    Setting the work timer Setting the work timer You can set the work day and work time for the lawnmower to operate. You can also specify a specific point to start from for each work time. Work timer You can select the day and time on which you want the lawnmower to operate.

  • Page 44: Start Points

    Setting the work timer Start points You can set the start points for each day of week. For example, if you set the following 5 start points in your garden, you enable the lawnmower to reach other areas through narrow passages for a better efficiency. Boundary wire Point 1 Point 4...

  • Page 45: Seasonal Timer

    Setting the work timer Seasonal timer The growth speed of lawn depends on the season. With this function, you can configure the ratio of the mowing time for each season. Auto setup Menu screen Home screen [1.Work timer] [3.Seasonal timer] [1.Auto setup] Press the H button to return to the previous screen.

  • Page 46: Quiet Timer

    Setting the work timer Deactivate Menu screen Home screen [1.Work timer] [3.Seasonal timer] [3.Deactivate] Select [OK] and press the H button to return to the previous screen. You can deactivate the timer for each season for operating the lawnmower. If the seasonal timer is deactivated, the lawnmower works 100% for each month.

  • Page 47: Setting The Lawnmower Operation

    Setting the lawnmower operation Setting the lawnmower operation Mowing setup You can set up the Mowing settings as follows: Setting the angle to turn from the boundary wire or the shortcut wire Setting the distance to the start point When leaving the boundary wire, set the angle to turn Until the lawnmower reaches a set starting point from the boundary wire.
  • Page 48 Setting the lawnmower operation Distance from the boundary wire when the lawnmower goes toward the mowing start points: The lawnmower moves between the boundary wire and the specified value at random as it goes toward the start point. When setting the proper passage width When the passage width is set too high Narrow passage Narrow passage...
  • Page 49 Setting the lawnmower operation The angle at which the lawnmower departs from the wire: The lawnmower travels to the start points along the boundary wire or the shortcut wire, and then turns away from the wire to start mowing. You can configure the angle (range) at which the lawnmower deviates from the boundary wire or the shortcut wire when it starts mowing as below (Default value is from 10°...
  • Page 50 Setting the lawnmower operation Start points Menu screen Home screen [2.Garden setup] [1.Mowing setup] [1.Start points] [1.Point 1] to [5.Point 5] Menu 12:02 Sat 25/NOV Garden setup Mowing setup 1.Mowing setup 1.Work timer 1.Start points 2.Garden layout 2.Garden setup 2.Mowing pattern 3.Homing setup 3.Diagnostics 3.Advanced setting...
  • Page 51 Setting the lawnmower operation Mowing pattern Menu screen Home screen [2.Garden setup] [1.Mowing setup] [2.Mowing pattern] [1.Auto mode] [1.Point 1] to [5.Point 5] You can select from 3 mowing patterns below: [Directional] With the [Directional] setting, when the lawnmower detects the boundary wire, it turns at a narrow angle.
  • Page 52 Setting the lawnmower operation Advanced setting • Wire overlap Menu screen Home screen [2.Garden setup] [1.Mowing setup] [3.Advanced setting] [1.Wire overlap] Wire overlap: From boundary wire to front of the lawnmower. When the lawnmower detects the boundary wire, it can slightly cross the boundary to mow the outer edges of the mowing area.
  • Page 53 Setting the lawnmower operation • Edge cutting Menu screen Home screen [2.Garden setup] [1.Mowing setup] [3.Advanced setting] [2.Edge cutting] With this function, you can mow the unmown area along the boundary wire. If the edge cutting setting is enabled, the lawnmower goes around your garden along the boundary wire to mow the edge before starting the usual...
  • Page 54 Setting the lawnmower operation Select [ON] and press the H button. [Timer] is set. Go to step 4. Edge cutting O FF T i m er Select [ON] and press the H button. After setting, immediately start edge cutting. Go to step 5. Edge cutting O FF N ow...
  • Page 55 Setting the lawnmower operation • Spiral cutting Menu screen Home screen [2.Garden setup] [1.Mowing setup] [3.Advanced setting] [3.Spiral cutting] With this function, the lawnmower can be focused on mowing the area where the lawn is not completely mown, or the growth speed of the lawn is fast. The lawnmower detects the dense area and mow there spirally.
  • Page 56 Setting the lawnmower operation GNSS NOTE: - GNSS is an abbreviation for Global Navigation Satellite System. Position information can be obtained from satellites. Menu screen Home screen [2.Garden setup] [1.Mowing setup] [4.GNSS] [1.Free zone] With this function, you can set a location that you do not want the lawnmower to mow in. Free zone Select [1.Zone setting] and press H.
  • Page 57 Setting the lawnmower operation Enter the radius of the free zone to be set from 3 to 20m. Select [OK] and press the H button. [Please wait for 10 seconds.] is displayed. Zone setting R a di u s ( 3– 20 m) NE X T [Finish] is displayed, press the H button.

  • Page 58: Garden Layout

    Setting the lawnmower operation Garden layout Docking direction Menu screen Home screen [2.Garden setup] [2.Garden layout] [1.Docking direction] Garden setup 1.Mowing setup 2.Garden layout 3.Homing setup 4.Cutting height Select the set pattern. There are 4 installation methods. You can set the direction for the lawnmower to move in relation to the docking station.
  • Page 59 Setting the lawnmower operation Wire length/Garden size Menu screen Home screen [2.Garden setup] [2.Garden layout] [2.Wire length...] Enter the values of the boundary wire length and garden size. You can configure the information of your garden layout to operate the lawnmower. Garden lay out NOTE: Boundary wire length...

  • Page 60: Homing Setup

    Setting the lawnmower operation Homing setup Garden setup 1.Mowing setup 2.Garden layout 3.Homing setup 4.Cutting height Passage width Menu screen Home screen [2.Garden setup] [3.Homing setup] [1.Passage width] Garden setup 1.Mowing setup 2.Garden layout 3.Homing setup 4.Cutting height Shortcut wire Setup level Passage width You can set the minimum and maximum gap...
  • Page 61 Setting the lawnmower operation Select [1.Boundary wire] or [2.Shortcut wire] and press the H button. NOTE: - [2.Shortcut wire] is not displayed if the shortcut wire is not installed. Passage width 1.Boundary wire 2.Shortcut wire If [1.Boundary wire] is selected, choose clockwise or anti-clockwise and enter the Min and Max values.
  • Page 62 Setting the lawnmower operation Satellite assisted homing Menu screen Home screen [2.Garden setup] [3.Homing setup] [3.Satellite assisted homing] Select [ON] or [OFF], and press the H button. This function remembers the position of the station Satellite assisted homing and the position of the lawnmower based on the GNSS position information, and starts moving toward O FF the docking station from the work end position.

  • Page 63: Cutting Height

    Setting the lawnmower operation Cutting height Auto setup Menu screen Home screen [2.Garden setup] [5.Cutting height] [1.Auto setup] Garden setup 1.Mowing setup 2.Garden layout 3.Homing setup 4.Cutting height Set the “Target cutting height” with the buttons or number buttons and Alternatively, select in the Top screen and press press the H button.
  • Page 64 Setting the lawnmower operation Press the G button, previous screen. 12:02 Sat 25/NOV Cutting height 1.Auto setup 2.Manual setup Cutting height 35 (20-60) Manual setup TIPS Avoid cutting too much at once. Mow gradually step by step. Avoid cutting more than 5 mm of grass at once. If you want to cut more than 5 mm, it should be done gradually in steps of 5 mm maximum per week.

  • Page 65: Checking The System

    Checking the system Checking the system Check signal You can check if the boundary wire signal is correctly reaching the lawnmower and confirm how strong the signal is. Menu screen Home screen [3.Diagnostics] [1.Check signal] Menu 1.Work timer 2.Garden setup 3.Diagnostics 4.History 5.System settings...

  • Page 66: Test Start Points

    Checking the system Test start points You can check whether the lawnmower can correctly return to the docking station, and whether it can reach each start points according to settings. Test start points Menu screen Home screen [3.Diagnostics] [2.Test start points] [1.Point1] to [5.Point5] Select a point from 1 to 5 which you want to test and press the H button.
  • Page 67 Checking the system Home Menu screen Home screen [3.Diagnostics] [2.Test start points] [0.Home] Close the control panel cover. The lawnmower returns to the docking You can test if the lawnmower will correctly return to station. the docking station. When the lawnmower is docked at the NOTE: docking station, press the manual STOP button.

  • Page 68: Viewing History (M

    Viewing history Viewing history Operation history You can check the cumulative time that the lawnmower has operated and recharged. Menu screen Home screen [4.History] [1.Operating history] [1.Operating time] Menu 1.Work timer 2.Garden setup 3.Diagnostics 4.History 5.System settings 6.Setup wizard Select [1.Operating time] and press the H button.

  • Page 69: Work History

    Viewing history Work history Menu screen Home screen [4.History] [1.Operating history] [2.Work history] Check the history by pressing the down buttons to scroll the menu. You can view the lawnmower’s cutting history (when the lawnmower was mowing), return history (when Press the G button to return to the the lawnmower was returning to the docking station), previous screen.

  • Page 70: Fault History

    Viewing history Fault history You can view the lawnmower’s fault history (when a fault occurred). Menu screen Home screen [4.History] [2.Fault history] Select fault history entry by using the buttons. The history of errors that have occurred are logged. Press the H button. NOTE: Fault information is displayed.

  • Page 71: Setting The System (M

    Setting the system Setting the system Language You can set the menus of the display to your preferred language. Menu screen Home screen [5.System settings] [1.Language] Menu 1.Work timer 2.Garden setup 3.Diagnostics 4.History 5.System settings 6.Setup wizard Select your preferred language. Select the language shown in the display from among 12 languages.

  • Page 72: Date And Time

    Setting the system BG color Menu screen Home screen [5.System settings] [2.Display/Sound] [BG color] Select [White] or [Black] by pressing the buttons. You can set the background color of the control panel display. Press the H button to return to the previous screen.

  • Page 73: Security

    Setting the system Security Security settings are used to prevent the lawnmower from being operated by other people. Security settings require you to enter your PIN. If you forget your PIN, enter the PIN written in “DEALER CHECKSHEET” ( page 113) in this manual. If the lock is not released, please contact your dealer.
  • Page 74 Setting the system Accessory option Menu screen Home screen [5.System settings] [4.Security] [3.Accessory option] NOTE: - Before selecting [3.Accessory option], you will need to input your PIN. If you forget your PIN, contact your dealer. - Consult your dealer about accessory option. Select [ON] or [OFF] by pressing the buttons.

  • Page 75: Reset

    Setting the system Reset You can reset all settings to the factory defaults. Factory reset Menu screen Home screen [5.System settings] [5.Reset] [1.Factory reset] Input your PIN and press the H button. Execute this command to revert all settings to their factory defaults.

  • Page 76: Mii-Monitor Preparation

    • Various settings such as cutting height and operation time • Voice operation through AI speaker (Alexa) • Backup and reset your settings on the Honda server • Error notification to user • Theft notification with location acquisition and geofencing (dealer setting) •...

  • Page 77: Registering A User

    [Accept]. Input a password. Register a Serial Number (M page 10). QR code Manual input Tap [Registration] to send the inputted information to the Honda server. Failed Try again after a while. Also, check if you can connect to the network.

  • Page 78: Pairing A Device (Connecting Via Bluetooth ® )

    Pairing a device (connecting via Bluetooth ® Pairing a device (connecting via Bluetooth ® • It is not possible to connect more than one user id to the same lawnmower. If you want to connect more than one smartphone/tablet to your lawnmower, the same user id must be used on all devices. •...

  • Page 79: Menu Display After Connecting To A Device

    Menu display after connecting to a device Menu display after connecting to a device If your smartphone and the lawnmower are connected when you press STOP button, the following screen is displayed. 12:02 Sat 25/NOV Displayed when connected to a paired device. Auto Menu Example : Bluetooth...

  • Page 80: Usage

    Checking the mowing area / Connecting to a power source USAGE Checking the mowing area Before operating the lawnmower, ensure the mowing area is free of animals and foreign objects. Turn off the lawnmower before removing any foreign objects. NOTE: - If there are any holes (such as rabbit holes, etc.) in the work area, fill them in so that the work area is level.

  • Page 81: Checking The Lawnmower

    Connecting to a power source / Checking the lawnmower / Turning on / off the power Attach the station cover to the docking station. N CAUTION Do not secure the power cord with the pegs used to secure the boundary wire. Doing so may damage the power cord.
  • Page 82 Turning on / off the power Press the manual STOP button. The control panel cover pops up. Press the A (On) button on the control panel. The power turns on, and the startup screen on the control panel is displayed. ­Entering­your­PIN­(Personal­Identification­Number) When turning the lawnmower on, you must enter the PIN.

  • Page 83: Operating The Lawnmower In The Auto Mode

    Operating the lawnmower in the Auto mode Operating the lawnmower in the Auto mode These instructions can be used to operate the lawnmower at the time scheduled for the Auto mode settings. NOTE: - For details on settings, see “4 MENU SETTINGS” (M page 38). N WARNING - Make sure to press the manual STOP button before performing the following procedure.

  • Page 84: Operating The Lawnmower In The Manual Mode

    Operating the lawnmower in the Manual mode Operating the lawnmower in the Manual mode Use the Manual mode when you want to ignore work timer settings. As an example, you can move the lawnmower by yourself if there are two or more separated mowing areas within the boundary wire, the mower cannot travel between the areas.
  • Page 85 Operating the lawnmower in the Manual mode Example of the Manual mode operation These instructions can be used to operate the lawnmower for the Manual mode settings. Press the B (Off) button on the control panel. The power turns off. Close the control panel cover.
  • Page 86 Operating the lawnmower in the Manual mode Canceling the Manual mode operation You can cancel the operation which you selected on the Manual mode screen and the lawnmower returns to the docking station. NOTE: - If you select [Mow then resume auto timer], the lawnmower will stop at the time of the work timer configured in the Auto mode.

  • Page 87: Weekly Checks (M

    Weekly checks Weekly checks Check the lawnmower and docking station once a week to remove dirt and grass. Also check if the blades and blade disc have been damaged, and verify that there are no other problems. Cleaning the lawnmower and docking station Dirt and grass may accumulate on the top and bottom of the lawnmower, docking station, and charging plug during and after mowing.

  • Page 88: Carrying The Lawnmower

    Carrying the lawnmower Carrying the lawnmower When carrying the lawnmower, observe the following points. N WARNING - Do not carry the lawnmower with the blades pointed toward you. - Take care to avoid dropping the lawnmower when carrying it. - Make sure to press the manual STOP button and press the B (Off) button to turn the power off before performing the following procedure.

  • Page 89: Troubleshooting

    Before contacting your dealer TROUBLESHOOTING Before contacting your dealer In the unlikely event that you are facing a problem and you need to contact your dealer, ensure that you have the following information available. • Owner’s Manual • Consider any recent work in your garden. •...

  • Page 90: Messages

    Messages Messages If any of the following messages appear in the display, use this troubleshooting guide to address the problem before contacting your dealer. If the problem persists, contact your dealer. Message Cause Solution *Lock out display The PIN code is incorrect. Please enter the correct PIN code.
  • Page 91 Messages Message Cause Solution Mower was Lawnmower has been off for one Check if there are abnormalities or changes week or longer while using automatic with the condition of the lawn before resuming turned off cutting height adjustment or automatic operation.

  • Page 92: Resolving Problems

    Resolving problems Resolving problems Unless having the power on is necessary to check something, turn off the power when checking the condition of the lawnmower or the blade. Problem Solution The lawnmower cannot be Check the cord connections, confirm that the docking station’s LED indicator charged.
  • Page 93 Resolving problems Problem Solution Noticeable wheel tracks. Try to reduce the work timer. You can reduce the work timer automatically by using “Seasonal timer”. Try to increase “passage width”. The lawnmower stops frequently. Operation of this product with other wireless devices, remote controls, or electric fences is not guaranteed.

  • Page 94: Maintenance

    The required service intervals and the kind of maintenance to be performed are described in the following chart. Honda recommends annual service to be completed by your local authorised Honda dealer. The dealer will be able to perform a variety of checks and software updates that cannot be completed by the owner.

  • Page 95: Maintenance Procedures (M

    Maintenance procedures Preparing • Put on a pair of work gloves. • When checking the blades, turn the lawnmower on its side. Cleaning N WARNING - Do not touch the blades with your hands. - Do not lift the lawnmower off of the ground while checking or cleaning it. - Make sure to press the manual STOP button and press the B (Off) button to turn the power off before performing the following procedures.
  • Page 96 Maintenance procedures Cleaning the docking station N WARNING - Unplug the AC adapter’s plug from the power outlet (House) before cleaning it. NOTE: - Do not wash the docking station with water. The docking station may be damaged. Clean dirt and grass off of the docking station using a plastic brush. Brush off dirt and grass from docking station, particularly around parts on which the lawnmower rests and around the charging plugs area: Charging plug...
  • Page 97 Maintenance procedures Checking the docking station Check item(s) Action Damage to the docking Visually inspect the docking station. Docking station station If it is damaged, consult your dealer. Visually inspect the metal contacts on the charging plug for corrosion, which can be identified by a greenish discoloration on the Condition of the charging Charging plug...
  • Page 98 Maintenance procedures Check item(s) Action Check if there is a gap between the docking Gap between the docking station’s charging plug and the lawnmower’s station’s charging plug and Docking station charging socket. If there is none, adjust the the lawnmower’s charging docking station according to the installation socket conditions (M page 15), or consult your dealer.
  • Page 99 Maintenance procedures Checking the docking station screws Check item(s) Action Visually inspect the screws. Loosened screws of the Docking station If they are loose, tighten them with a flat-blade docking station screwdriver. Correct Incorrect Screw Checking the wire connectors and 4 pins connector Check item(s) Action Visually inspect the wire connectors and 4 pins connector.
  • Page 100 Maintenance procedures Checking the rear (drive) tire tread depth Check item(s) Action Measure the depth of the treads at the center of Tread depth of the rear the tire. Rear (drive) tire (drive) tire If they are 7 mm or less, contact a service dealer.
  • Page 101 Maintenance procedures Checking the charge socket Check item(s) Action Visually inspect the metal parts of the charge Charge socket clogged with socket. grass clippings. If the charge socket is clogged with grass, remove the grass clippings. Charge socket Visually inspect the metal contacts of the charge socket for wear, corrosion, or damage.
  • Page 102 Maintenance procedures Checking the blades and blade disc Check the condition of the blades and blade disc as follows. Lifetime of the blades In order to have good cutting performance, maintain the sharp cutting edge on the blades. Typically, the lifetime of the blades is 160 hours. (2 weeks to 2 months) Because the lifetime depends on grass condition, it may be necessary to exchange earlier than usual, especially in the spring season.
  • Page 103 Maintenance procedures Replacing the blades To replace the blades, perform the procedures below. N WARNING - Put on a pair of work gloves before performing the following procedures. - Do not touch the blade while it is spinning. You may be injured if you do so. NOTE: - This work requires technical skill and knowledge, as well as special tools.

  • Page 104: Storage

    Spray electrical contact cleaner on boundary wire terminals before encasing them in a waterproof box (e.g. electrical junction box) to ensure they do not corrode over the winter period. Honda recommends that all electrical components such as the AC adapter should be stored in a dry, frost free environment that is not exposed to the winter weather.

  • Page 105: Technical Information

    Specifications TECHNICAL INFORMATION Specifications Model HRM4000 Live Description code MCPF Type Length 690 mm Width 555 mm Height 300 mm Weight 14.5 kg Electrical system Li-ion Battery 21.6 V / 5700 mAh Input AC 230 V AC 240 V AC 230 V AC adapter Output 40.0 V / 3.25 A...

  • Page 106: Appendix

    Major Honda distributor addresses Major Honda Distributor Addresses Adresses des principaux concessionnaires Honda APPENDIX Adressen derwichtigsten Honda-Haupthändler Elenco dei maggiori distributori Honda in Europa Adressen van Honda-importeurs Major Honda Distributor Addresses Direcciones de los principales concesionarios Honda AUSTRIA DENMARK ITALY...

  • Page 107: Content Outline

    HRM1500 HRM1500 HRM2500 HRM2500 HRM4000 Manufacturer  Honda France Manufacturing S.A.S. Pôle 45 - Rue des Châtaigniers 45140 ORMES – France Authorized representative and able to compile the technical documentation  Honda Motor Europe Ltd Cain Road, Bracknell, Berkshire, RG12 1HL, United Kingdom...

  • Page 108: Content Outline

    HRM4000 EC, SC 3. Manufacturer and able to compile the technical documentation  Honda France Manufacturing S.A.S. Pôle 45 - Rue des Châtaigniers 45140 ORMES - FRANCE 4. References to applied standards EN 60335-1:2012 / AC:2014 / A11:2014 / A13:2017 /...
  • Page 109 “EC Declaration of Conformity” CONTENT OUTLINE Français. (French) Italiano (Italian) Deutsch (German) Déclaration CE de Conformité Dichiarazione CE di Conformità EG-Konformitätserklärung 1. Le soussigné, *1, représentant du constructeur, déclare que la 1. Il sottoscritto, *1 in rappresentanza del costruttore, dichiara qui di 1.
  • Page 110 “EC Declaration of Conformity” CONTENT OUTLINE Magyar ( Hungarian ) Cestina (Czech) Latviešu (Latvian) EK-megfelelőségi nyilatkozata ES – Prohlášení o shodě EK atbilstības deklarācija 1. Alulírott *1, mint a gyártó képviselője nyilatkozom, hogy az általunk 1. Zástupce výrobce, *1 svým podpisem potvrzuje, že stroj popsaný níže 1.

  • Page 111: Lcd Menu Index

    LCD MENU INDEX Menu name Step Page Advanced setting Garden setup → Mowing setup P.49 Alarm System settings → Security P.70 Auto mode Garden setup → Mowing setup → Mowing pattern → Auto mode P.48 BG color System settings → Display/Sound P.69 Capacity for homing Garden setup →...

  • Page 112: Lawn Diagram

    LAWN DIAGRAM...

  • Page 116: Dealer Checksheet

    DEALER CHECKSHEET The following information is provided by your dealer after setup is complete. You can save your settings using Mii-monitor and restore them in case you made unwanted modifications. You can also restore your dealer’s recommended settings from Mii-monitor to your lawnmower. Basic setting information (M pages 24, 68, 70) PIN (Personal Identification Number): Language : English / Deutsch / Français / Italiano / Nederlands / Svenska / Norsk / Español / Polski / Dansk /...
  • Page 117 Other setting item information Please fill the following items if configuring them with the Menu settings. Garden layout setting information (M pages 47, 55, 57) Passage width: Home screen [2.Garden setup] [1.Mowing setup] [1.Start points] [1.Point 1] to [5.Point 5] Point 1: Point 2: Point 3:...

  • Page 118: Quick Guide

    QUICK GUIDE Fundamentals Turning on / off the power Sending back home Mii-monitor (M page 13, 78) (M page 13) Refer to the Mii-monitor Operation Guide. Stopping the lawnmower (M page 11) Daily use Menu settings Check the garden 65 mm or less Configure the operation mode, timer, and other Maintain the area before the lawnmower starts...
  • Page 119 Technical tips Mowing mode You can select from 2 modes of operation (available in “Menu Settings”). Auto mode (M page 80) The lawnmower automatically mows according to inputted time and garden settings. Manual mode (M page 81) Start mowing anytime without timer settings. Cleaning the lawnmower (M page 92) NOTE: - Never use a scraper.
  • Page 120 HRM4000 Live xxxx.xxxx.xx 32VP9700 00X32-VP9-7000 ©Honda Motor Co., Ltd. 2023 Printed in France...
