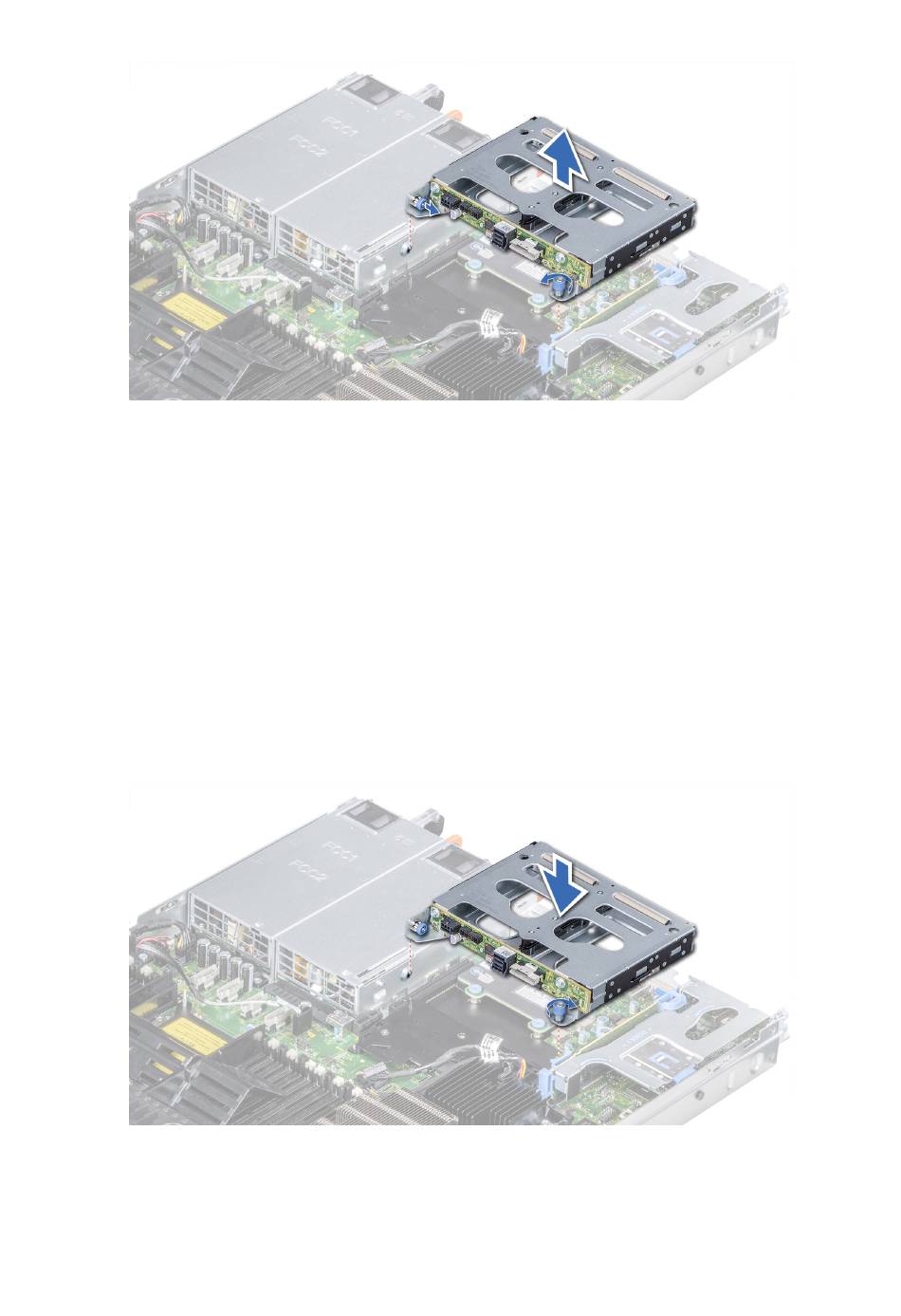

Figure 102. Removing the rear drive cage
Next steps
Install the rear drive
cage.
Installing the rear drive cage
Prerequisites
Follow the safety guidelines listed in
Steps
1. Align the screws on the drive cage with the screw holes on the system chassis.
2. Lower the drive cage into the system until it is firmly seated and the screws locks into place.
3. Using Phillips #2 screwdriver, tighten the screws.
Figure 103. Installing the rear drive cage
Safety instructions
on page 34.
Installing and removing system components
113
