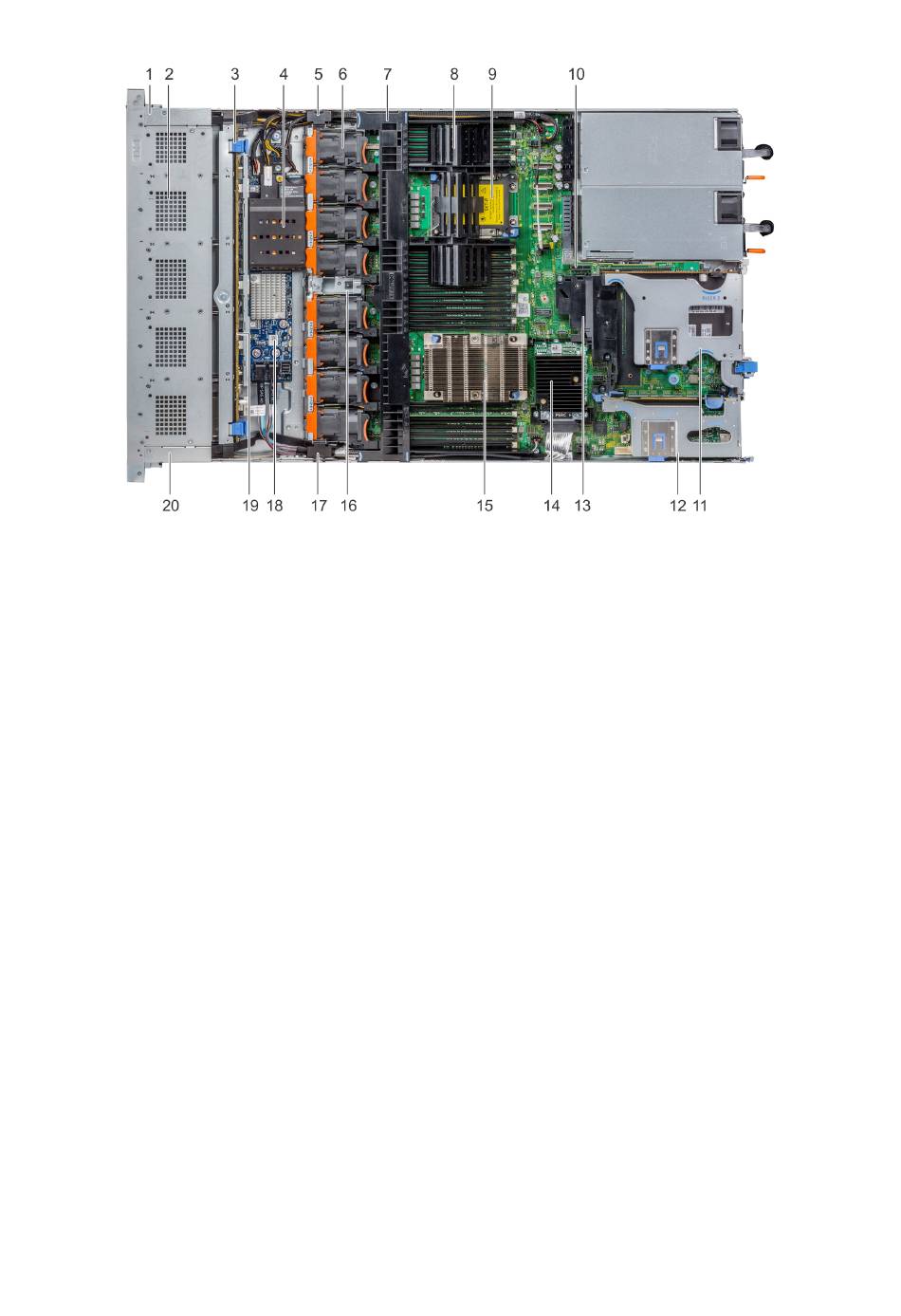

Figure 32. Inside the system - 2 PCIe expansion risers
1. right control panel cable cover
3. backplane release latch
5. cabling latch
7. air shroud
9. processor 2 slot
11. expansion riser 2 B
13. PCIe shroud
15. processor 1
17. cabling latch
19. hard drive backplane
2. hard drive cage
4. NVDIMM-N battery
6. cooling fan (8)
8. processor and DIMM blank
10. IDSDM/vFlash module slot
12. expansion riser 1 B
14. integrated storage controller card
16. intrusion switch
18. SAS expander board
20. left control panel cable cover
Installing and removing system components
47
