Follow the procedure listed in
Inside the system
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
NOTE:
Components that are hot swappable are marked orange and touch points on the components are marked blue.

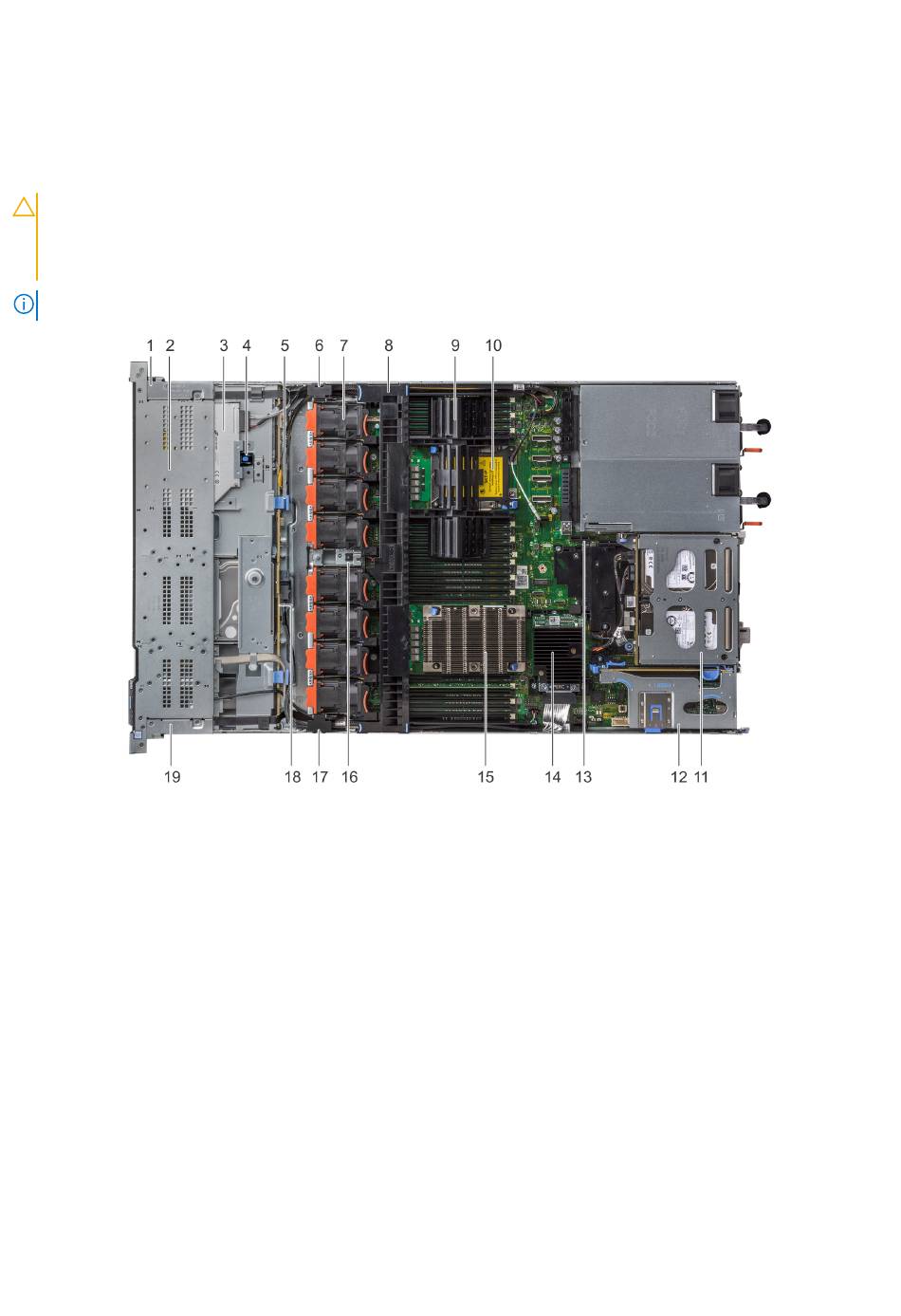

Figure 31. Inside the system - 1 PCIe expansion riser
1. right control panel cable cover
3. optical drive
5. backplane release latch
7. cooling fan (8)
9. processor and DIMM blank
11. rear hard drive module
13. IDSDM/vFlash module slot
15. processor 1
17. cabling latch
19. left control panel cable cover
46
Installing and removing system components
After working inside your system
on page 35.
2. hard drive cage
4. optical drive release latch
6. cabling latch
8. air shroud
10. processor 2 slot
12. expansion riser 1
14. integrated storage controller card
16. intrusion switch
18. hard drive backplane
