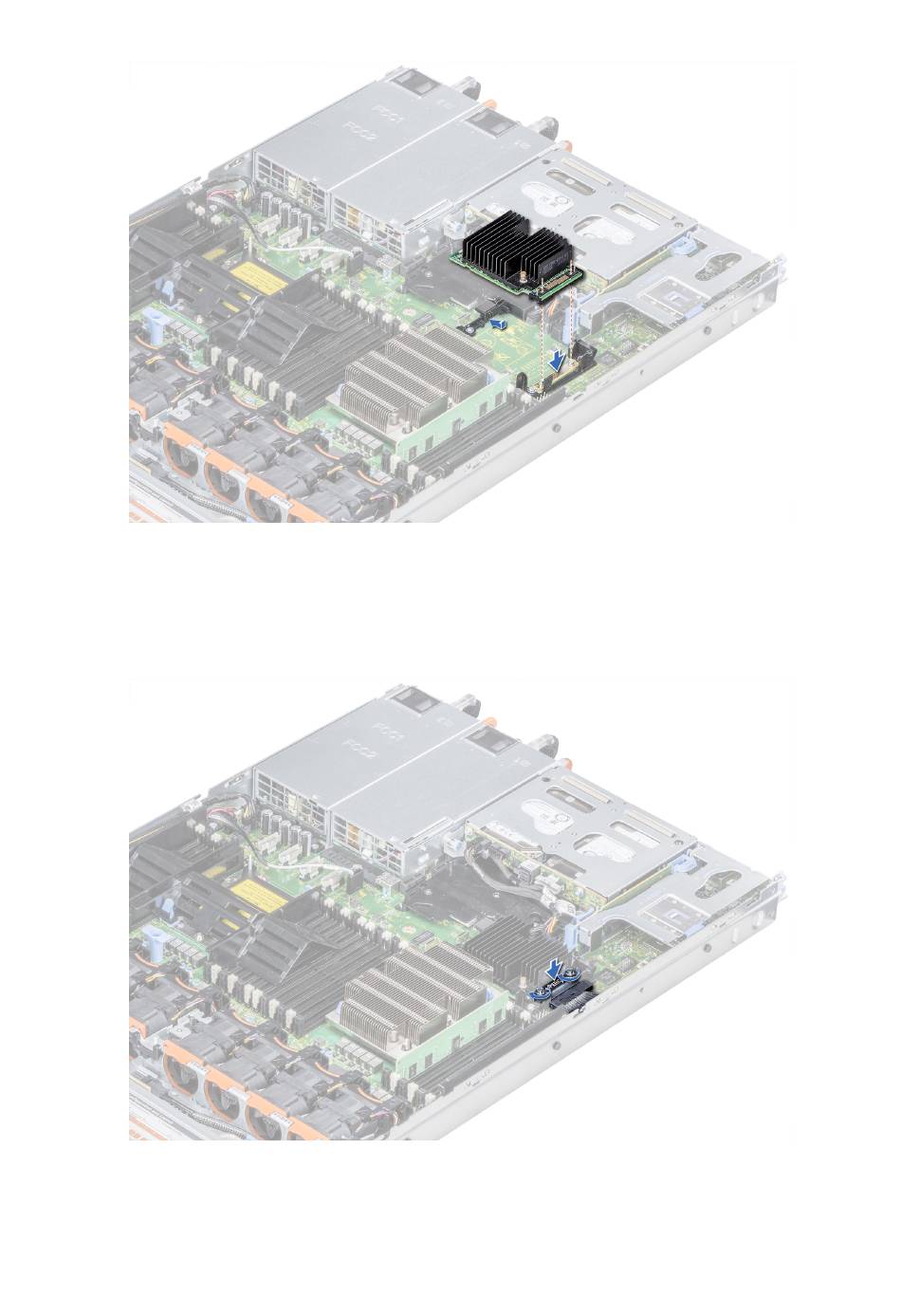

Figure 77. Installing the integrated storage controller card
3. Route the integrated storage controller card cable along the wall of the system.
4. Align the screws on the integrated storage controller card cable with the screw holes on the connector.
5. Using Phillips #2 screwdriver, tighten the screws to secure the integrated storage controller card cable to the card
connector on the system board.
Figure 78. Installing the integrated storage controller card cable
Installing and removing system components
95
