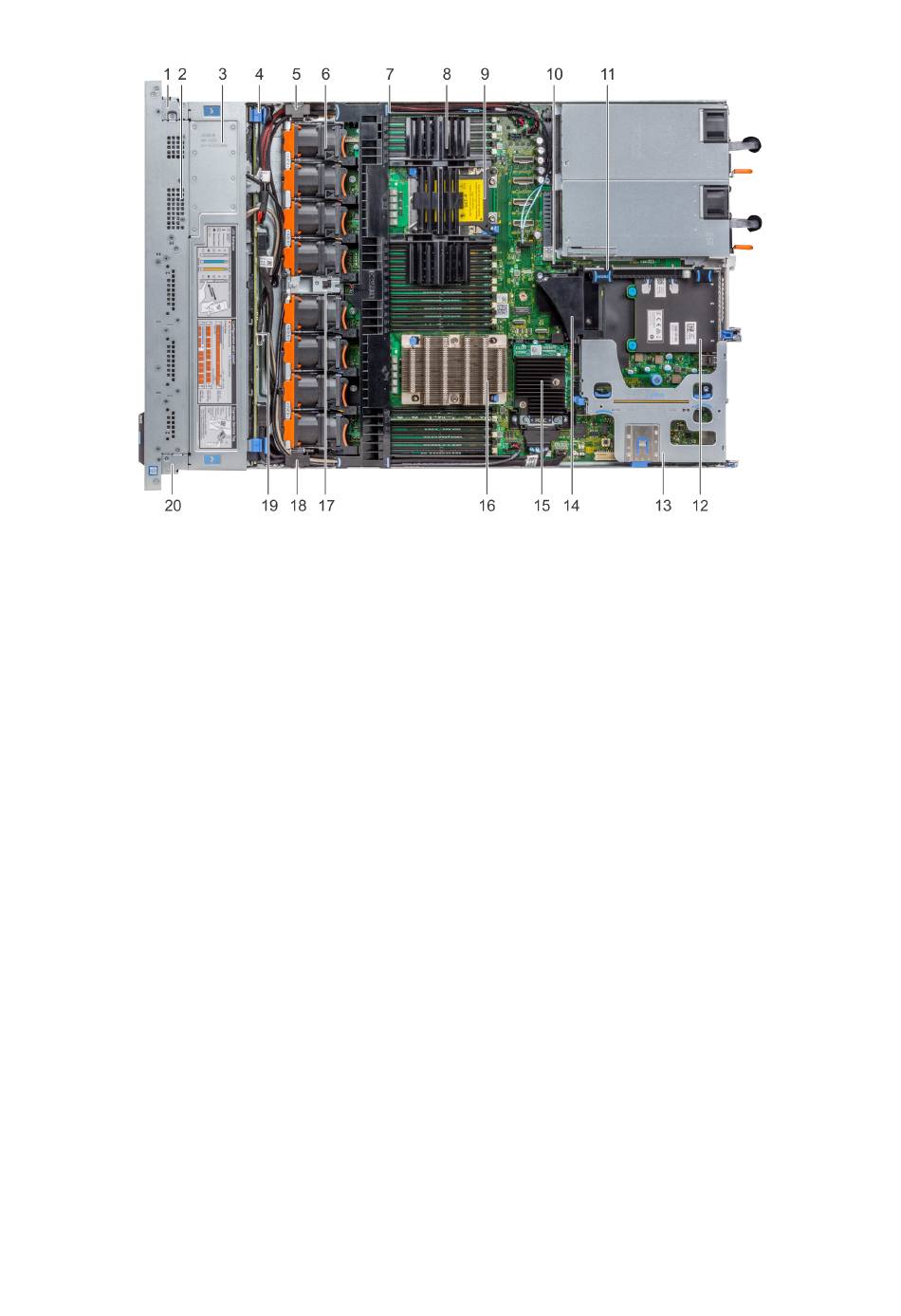

Figure 33. Inside the system - 3 PCIe expansion risers
1. right control panel cable cover
3. backplane cover
5. cabling latch
7. air shroud
9. processor 2 slot
11. expansion riser 2 A
13. expansion riser 1 A
15. integrated storage controller card
17. intrusion switch
19. hard drive backplane
48
Installing and removing system components
2. hard drive cage
4. backplane release latch
6. cooling fan (8)
8. processor and DIMM blank
10. IDSDM/vFlash module slot
12. network daughter card
14. PCIe shroud
16. processor 1
18. cabling latch
20. left control panel cable cover
