SingleSwitch-Control
Turning electrical devices
on or off remotely
EN - Instructions and warnings for installation and use
v3.4
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SingleSwitch-Control and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nice SingleSwitch-Control

Summary of Contents for Nice SingleSwitch-Control

  • Page 1 SingleSwitch-Control Turning electrical devices on or off remotely EN - Instructions and warnings for installation and use v3.4...

  • Page 2: Warnings And General Precautions

    • All works on the device can be performed only by a qualified and licensed electrician in complience with national regulations. • Connecting the SingleSwitch-Control in a manner inconsistent with manual may cause risk to health, life or material damage.

  • Page 3: Product Description

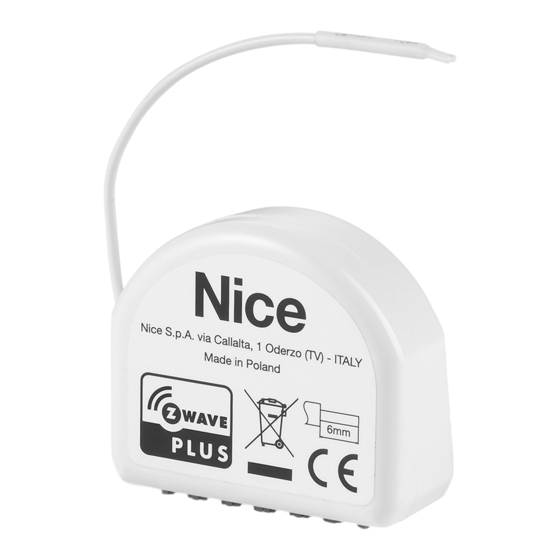

    PRODUCT DESCRIPTION The NICE SingleSwitch-Control is designed for installation in a standard wall switch boxes or anywhere else where the control of electric de- vices is needed. The NICE SingleSwitch-Control enables the control of connected devices either by the Z-Wave Plus® network or by a directly connected switch.

  • Page 4: Installation

    3.1 - SingleSwitch-Control connection rules • Connect only as shown in Figure 1 below.. • SingleSwitch-Control should be installed in a wall switch box compliant with a relevant national safety standards. The box should be at least 60 mm deep.
  • Page 5 • In case of problems with adding/removing the device using S1 switch, use B-button instead (located on the housing). • While adding SingleSwitch-Control to the network with connected toggle switch, ensure that the switch contact is open (off). Otherwise it prevents adding/removing the device to/from the network.
  • Page 6 5.5 - Controlling device with NICE controller After adding the SingleSwitch-Control to the network, it is represented in the interface by two similar icons, one for each channel. The icon for the second channel is hidden for SingleSwitch-Control. For turning the device ON/OFF the ON and OFF icons are used for operating the load.
  • Page 7 • Sends the Notification Report to the controller (Heat Alarm for overheat, Power Management for overcurrent). 5.7.2 - Activating scenes SingleSwitch-Control can activate scenes in the Z-Wave® controller by sending a scene ID and attribute of a specific action using Central Scene Command Class.
  • Page 8 POWER AND ENERGY CONSUMPTION 6.1 - Power and energy consumption measuring • SingleSwitch-Control requires the power consumption of connected load equal to 5 W or greater to correctly measure the power and en- ergy. • Power measurement can contain mains voltage fluctuations within +/- 10%.
  • Page 9 Assocations enable: • Direct control of other devices within the Z-Wave® system network using the wall switch connected to SingleSwitch-Control. • Direct control of a device included in the Z-Wave® network, such as other Dimmer, Relay Switch, Roller Shutter or scene (may be controlled only through a Z-Wave®...
  • Page 10 • To perform a Z-Wave® range test, the device needs to be added to the Z-Wave® controller. Testing is recommended only in special cases, as it can stress the network. • Communication mode of SingleSwitch-Control can switch between direct and the one using routing, especially if the device is on the limit of the direct range.

  • Page 11: Advanced Parameters

    ADVANCED PARAMETERS The device operation can be customized according to the user needs. The settings are available in the NICE interface. They are simple options that can be chosen by selecting the appropriate box. To configure the SingleSwitch-Control: 1. Go to Settings > Devices.
  • Page 12 Table A5 - SingleSwitch-Control - Advanced parameters Default Parameter Parameter Description Available setting setting size This parameter defines the way 0 – none of the groups are sent as secure 15 (all) 1 [byte] of sending commands in speci- 1 – the 2...
  • Page 13 Table A5 - SingleSwitch-Control - Advanced parameters Default Parameter Parameter Description Available setting setting size This parameter determines minimal 0 – reports are disabled 10 (10 s) 1 [byte] 51. First channel time that has to pass before send- 1-120 (1-120 s) – report interval...
  • Page 14 RADIO TRANSCEIVER PARAMETERS Table A6 - SingleSwitch-Control - Radio transceiver parameters Feature Description Radio protocol Z-Wave® (500 series chip) Radio signal power up to 5 dBm 868.4 or 869.8 MHz EU 908.4, 908.42 or 916.0 MHz US Frequency band 921.4 or 919.8 MHz ANZ 869.0 MHz RU...

  • Page 15: Product Disposal

    CAUTION! – Local legislation can envisage serious fines in the event of abusive disposal of this product. DECLARATION OF CONFORMITY Hereby, NICE S.p.A., declares that the radio equipment SingleSwitch-Control is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.niceforyou.com/en/professional-area/...
  • Page 16 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
