Package Checklist

• 1 x ioThinx 4500 (45M) module
• 1 x quick installation guide (printed)
Installation

Installing a 45M Module on a DIN Rail

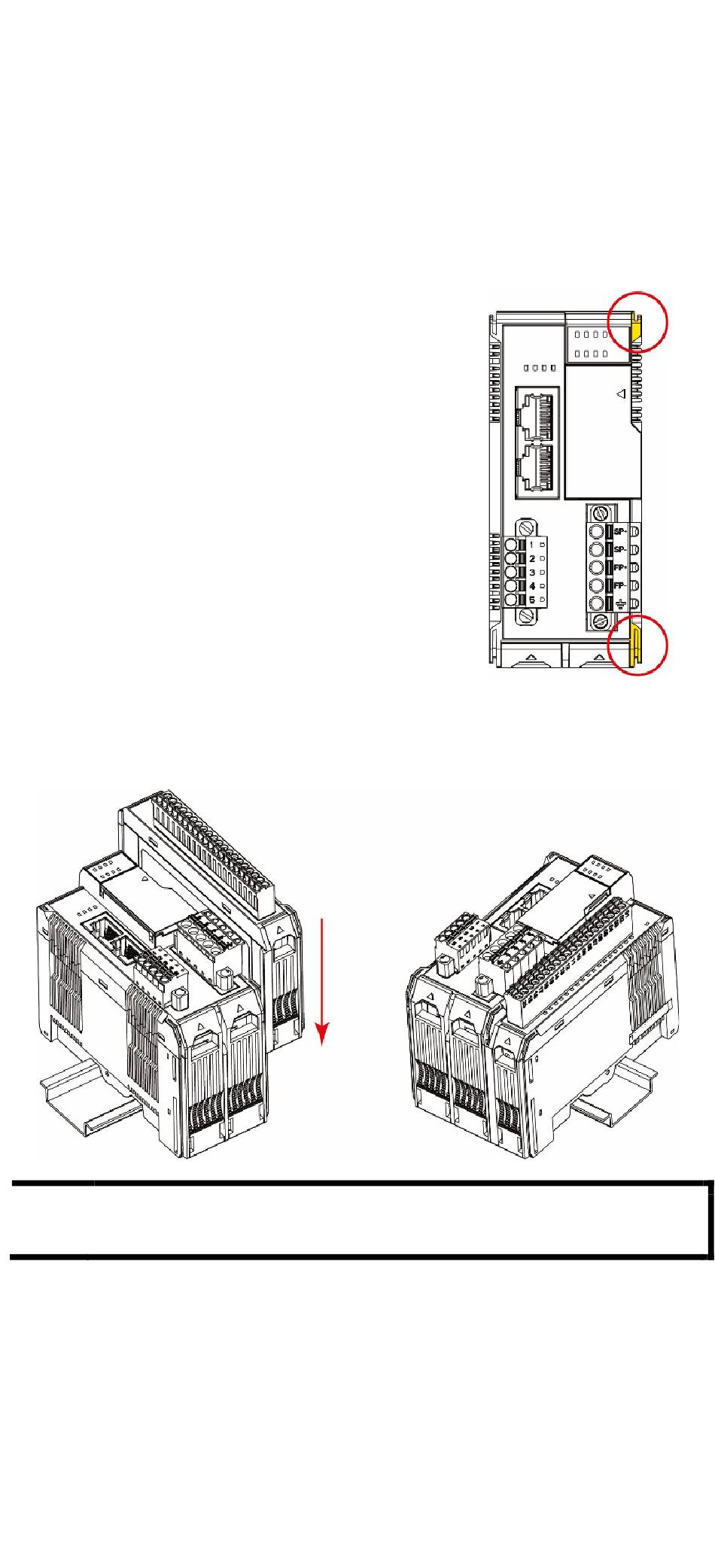

Step 1: Align the 45M module side by side
with the head/CPU module, making sure that
the upper and lower rails are hooked
together.
Step 2: Align the 45M module side by side with the head/CPU module
and then push the 45M module until it touches the DIN rail. Next, apply
more force until the module clips to the DIN rail.
NOTE After the module is firmly attached to the DIN rail, the module
connections to the internal bus will be established.
