Enclosure Dimensions - Altronix Maximal F Series Installation Manual

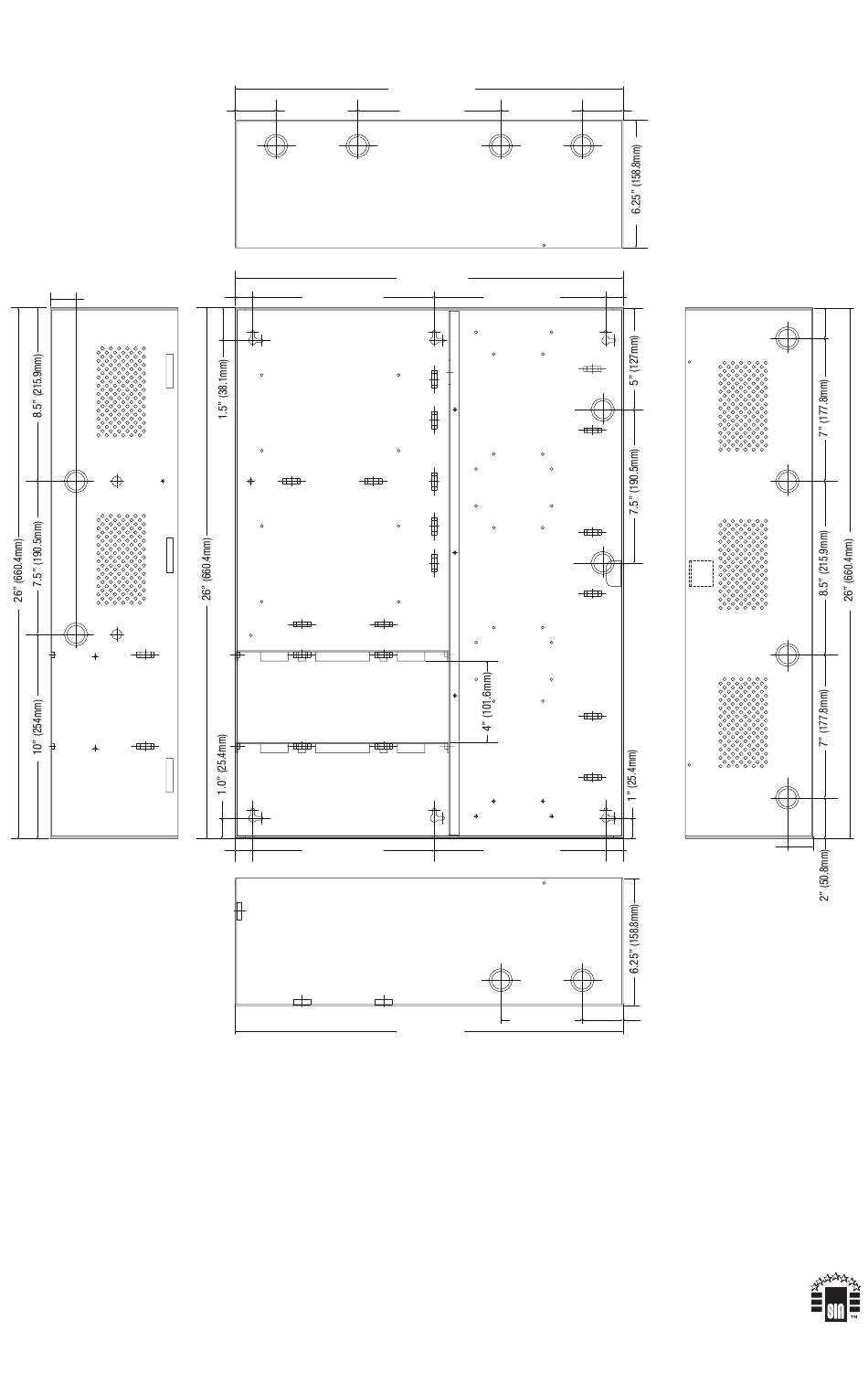

Enclosure Dimensions (H x W x D approximate):
2" (50.8mm)
1.25" (31.8mm)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIMaximal11F/33F/55F/75F/77F Series
Maximal11F/33F/55F/75F/77F Series Access Power Controllers (Fused) Installation Guide
26" x 19" x 6.25" (660.4mm x 482.6mm x 158.8mm)
4" (101.6mm)
0.85"
8.9" (226.1mm)
(21.6mm)
0.85"
8.9" (226.1mm)
(21.6mm)
19" (482.6mm)
7" (177.8mm) 4" (101.6mm)
19" (482.6mm)
8.4" (213.4mm)
8.4" (213.4mm)
4" (101.6mm)
19" (482.6mm)
H11U
2" (50.8mm)
0.85"
(21.6mm)
0.85" 1.25" (31.75mm)
(21.6mm)
2" (50.8mm)
