SM-810 Commercial

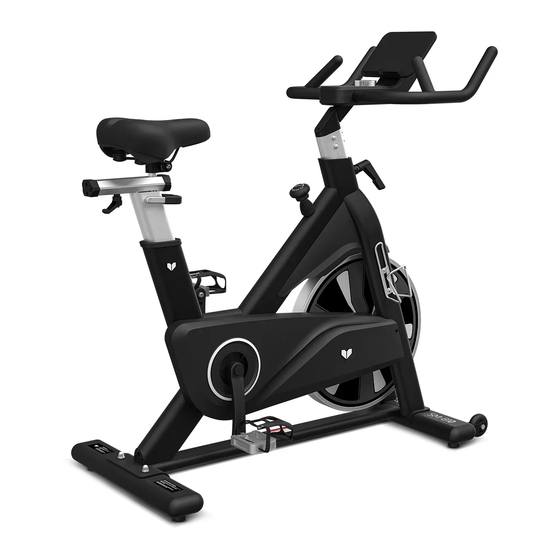

Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at
www.lifespanfitness.com.au
Spin Bike
USER MANUAL
Find the
Digital Manual
Online
Advertisement
Related Manuals for LifeSpan SM-810
Summary of Contents for LifeSpan SM-810
- Page 1 SM-810 Commercial Spin Bike USER MANUAL Find the Digital Manual Online Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Care Instructions ..........04 III. -
Page 3: Important Safety Instructions
I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this machine. It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty. Please always keep this manual with you. •... -
Page 4: Care Instructions
• Always keep this instruction manual and assembly tools at hand for reference. • The equipment is not suitable for therapeutic use. • The pulse or heart rate sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general. -
Page 5: Exploded Diagram
III. EXPLODED DIAGRAM EXPLODED DIAGRAM |... -
Page 6: Parts List
IV. PARTS LIST No. Description Specs No. Description Specs 27 Magnet Main Frame Weldment 30*15*10 20KG*Φ460*46 Belt Board Assembly Weldment 28 Flywheel *89*5PK Handlebar Weldment 29 Fixing Nut M25*1 Connecting Plate Weldment φ25*182 Assembly 30 Crank Axle Vertical Seat Post Weldment φ30*φ25.05*9 31 Metal Tube... - Page 7 No. Description Specs No. Description Specs Phillips Pan Head 52 Hex Flange Nut M12X1.25 Self-tapping Screw ST4.2X9.5 53 Little Hex Flange Nut M12X1.25 ST4.2X9.5 Phillips Pan Head 54 Cap Nut Self-tapping Screw ST4.2*19 ST4.2*19 55 Lock Nut M5 Phillips Pan Head Self-tapping Screw ST4.2*16 ST4.2*16...
- Page 8 No. Description Specs No. Description Specs 94 Rear Bushing φ14*14 332*65*46 109 Plastic Plug U-shaped Handle 110 Saddle C-3604 70*58*20 Cover Flywheel Installation φ59*35 96 Brake Knob M10*100 Cover 97 Square Spacer 20.6*20.6*16 φ69X26 112 Wheel φ40.6*60 98 Flexible Tube φ28*6.5 113 Crank Cap Lower Rail...
-
Page 9: Assembly Instructions
V. ASSEMBLY INSTRUCTIONS 54 54 FIG 1 STEP 1: Assemble Front and Rear Stabilizers A. Attached the Front Stabilizer (pt.11) to the Main Frame (pt.1), Lock the Front Stabilizer on the Main frame with 2pcs of Carriage Bolts (pt.62) and 2pcs of Flat Washers (pt.79) and 2pcs of Domed Nut (pt.54). - Page 10 FIG 3 STEP 3: Assemble Handlebar A. Use tool 5# Hexagonal wrench (pt.47) to secure Flat Washer 6 (pt.78) 4PCS, Elastic washer 6 (pt.81) 4PCS, and Hex socket head screw M6*12 (pt.60) 4PCS to connect the Handlebar (pt.3) to the Handlebar connection assembly (pt.07), as shown in FIG.3.
- Page 11 FIG 5 STEP 5: Assemble Saddle A. Place the Saddle (pt.110) horizontally, as shown in FIG.5, use 2x Wrench (pt.40) to tighten the nuts on both sides at the same time. Do not tighten the nut on one side only as this will not fully secure seat. 107L 107R FIG 6...
- Page 12 FIG 6 STEP 7: Plug to Power The equipment is now fully set up and you can now plug it into power. The plug socket is located at the back of the machine, on the bottom section (refer to image). | ASSEMBLY INSTRUCTIONS...
- Page 13 SEAT & HANDLEBAR ADJUSTMENT UP/DOWN To adjust the seat height, hold onto the seat and pull the seat post up to your desired height. To lower it you will need to pull the release lever underneath the seat up and while holding the lever, push the seat down, then release the lever to lock into position.
-
Page 14: Operation Guide
VI. OPERATION GUIDE 1.1 DISPLAY FUNCTIONS Item No. Items Display Description 1. Display Resistance levels (Levels 1-32) 2. Display work out data "SPEED", "TIME", "DISTANCE", Full View "CALORIE" 3. Display Bluetooth status On scan mode the data will show: 1. Small window for resistance level Scan Mode 2. - Page 15 1.2 DISPLAY INSTRUCTIONS Item No. Items Display Description 1. In sleep mode, the display is off. Awaken 2. The knob will turn on either upon being pressed or Device upon detecting any motion. 1. The knob display enters sleep mode after 3 minutes of inactivity.
- Page 16 While in the READY state, press the knob or commence pedaling to access the exercise mode. The small window will display "LEVEL" every 3 seconds (as depicted in Figure 3). Fig 3 The main window numbers are initially set to a carousel display featuring the illuminated "SCAN" icon. The display cycles through "Speed,"...
- Page 17 Fig 9 Fig 10 Fig 11 Fig 12 1.4 DISPLAY ICON DESCRIPTIONS Item No. Items Display Description 1 ~ 32 Resistance Level The higher the level, the greater the resistance If Selected: Indicates that the data is in carousel mode. SCAN If Not Selected: Indicates that the data is in lock mode of the Data you are viewing.
- Page 18 Item No. Items Display Description Distance 0.0 ~ 999 km 0.0~999kcal There is a direct proportional relationship with the Calories resistance level. For instance, Resistance 1 corresponds to 11.4 kcal/kilometer, whereas Resistance 32 corre- sponds to 44.6 kcal/kilometer. If Displayed: Bluetooth is connected. Bluetooth Icon If Not Displayed: Bluetooth is not connected.
-
Page 19: Exercise Guide
VII. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. - Page 20 COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post- exercise problems.
-
Page 21: Warranty
Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed. If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service... - Page 24 WWW.LIFESPA NF ITN ES S.COM.AU...
