Altronix Trove1DR1 and Trove2DR2 are designed to easily combine Altronix power and sub-assemblies with DIN Rail mountable products such
as access controllers, building automation modules, network switches, utility boxes, terminal blocks and more. The removable backplane
accommodates various lengths of DIN Rail to mount in vertically or horizontally, for any security or industrial application.
• 16 Gauge backplanes and enclosures with ample knockouts for convenient access.
Trove1DR1
Trove1 enclosure with TDR1 Altronix/DIN Rail backplane
• Includes: tamper switch, cam lock, lock nuts, and
mounting hardware.
Enclosure Dimensions (H x W x D): 18" x 14.5" x 4.625"
(457mm x 368mm x 118mm).
TDR1
Altronix/DIN Rail backplane only
• Includes mounting hardware.
Dimensions (H x W x D): 16.625" x 12.5" x 0.3125"
(422.3mm x 317.5mm x 7.9mm).
TDR1 accommodates a combination of the following:
• Altronix Modules:
- One (1) ACM8/ACM8CB, ACMS8/ACMS8CB, AL400ULXB2,
AL600ULXB, AL1012ULXB, AL1024ULXB2,
eFlow4NB, eFlow6NB, eFlow102NB or eFlow104NB.
- Up to four (4) ACM4/ACM4CB, LINQ8PD/LINQ8PDCB,
PD4UL/PD4ULCB, PD8UL/PD8ULCB, MOM5,
PDS8/PDS8CB or VR6.
• DIN Rail:
- Up to three (3) D12.
• UL 294 - 6th edition: Line Security I, Destructive Attack I, Endurance IV, Stand-by Power II*.
*Stand-by Power Level I if no battery is supplied.
• This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
• CE European Conformity.
1. Remove backplane from enclosure prior to mounting (do not discard hardware).
2. Trove1DR1 (Pg. 10):
Mark and predrill holes on the wall to line up with the top two keyholes in the enclosure. Install two upper fasteners and screws in the wall
with the screw heads protruding. Place the enclosure's upper keyholes over the two upper screws; level and secure.
Mark the position of the lower two holes. Remove the enclosure. Drill the lower holes and install the two fasteners.
Place the enclosure's upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws.
Trove2DR2 (Pg. 12):
Mark and predrill holes on the wall to line up with the top three keyholes in the enclosure.
Install three upper fasteners and screws in the wall with the screw heads protruding.
Place the enclosure's upper keyholes over the three upper screws; level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and
install the three fasteners. Place the enclosure's upper keyholes over the three upper screws.
Install the three lower screws and make sure to tighten all screws.

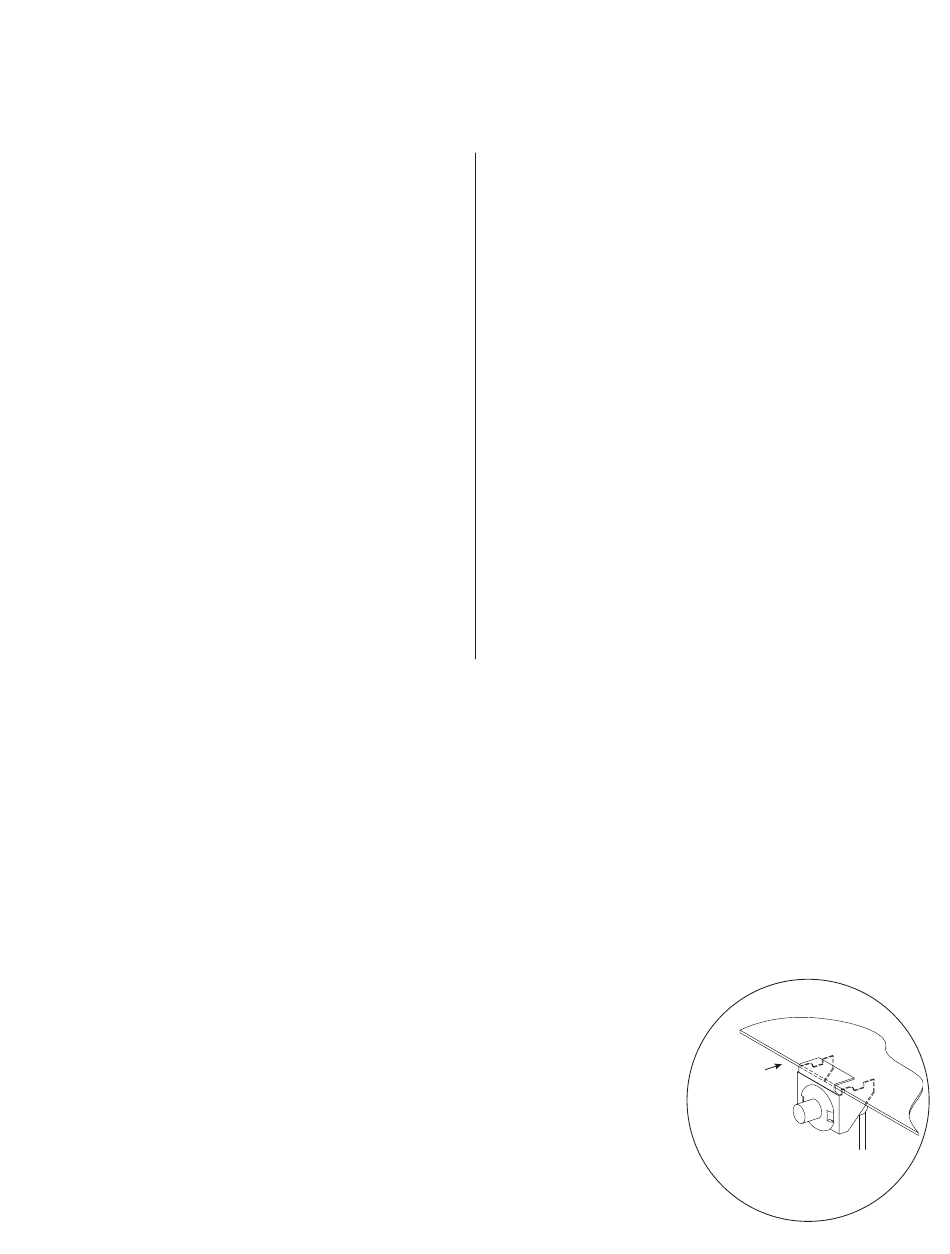

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in
desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the
enclosure approximately 2" from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the appropriate
UL Listed reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Altronix/DIN Rail to backplane, refer to pages 3-5.
- 2 -

Specifications:

Agency Listings:

Installation Instructions for Trove1 and Trove2:
Overview:
Trove2DR2
Trove2 enclosure with TDR2 Altronix/DIN Rail backplane
• Includes: tamper switch, cam lock, lock nuts, and
mounting hardware.
Enclosure Dimensions (H x W x D): 27.25" x 21.75" x 6.5"
(692.15mm x 552.5mm x 165.1mm).
TDR2
Altronix/DIN Rail backplane only
• Includes mounting hardware.
Dimensions (H x W x D): 25.375" x 19.375" x 0.3125"
(644.5mm x 482.6mm x 7.9mm).
TDR2 accommodates a combination of the following:
• Altronix Modules:
- Up to two (2) AL400ULXB2, AL600ULXB, AL1012ULXB,
AL1024ULXB2, eFlow4NB, eFlow6NB, eFlow102NB
or eFlow104NB.
- Up to three (3) ACM8/ACM8CB, ACMS8/ACMS8CB,
LINQ8ACM/LINQ8ACMCB.
- Up to four (4) ACM4/ACM4CB, LINQ8PD/LINQ8PDCB,
PD4UL/PD4ULCB, PD8UL/PD8ULCB, MOM5,
PDS8/PDS8CB or VR6.
• DIN Rail:
- Up to four (4) D10, with Altronix Power and Sub-Assemblies.
- Up to four (4) D19, no Altronix Power and Sub-Assemblies.
- Up to six (6) D24, no Altronix Power and Sub-Assemblies.
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Trove1DR1 / TDR1 / Trove2DR2 / TDR2 Installation Guide
Fig. 1
