Altronix Trove 2 Series Installation Manual page 3

TDR1: Configuration of Altronix Power Supply/Sub-Assembly Boards and DIN Rail
1. Fasten spacers (provided) to pems that match the hole pattern for Altronix power supply/chargers and sub-assemblies (Fig. 2, pg. 3).
Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 2, pg. 3).
Fasten spacers (provided) to pems that match the hole pattern for DIN RAIL.
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2, 2a, pg. 3).
3. Fasten TDR1 backplane to Trove1 enclosure utilizing lock nuts (provided).
Altronix Boards / DIN Rail
AL400ULXB2, AL600ULXB, AL1012ULXB, AL1024ULXB2, eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB,
ACM8/ACM8CB, ACMS8/ACMS8CB, LINQ8ACM/LINQ8ACMCB
ACM4/ACM4CB, LINQ8PD/LINQ8PDCB, PD4UL/PD4ULCB, PD8UL/PD8ULCB, MOM5, PDS8/PDS8CB or VR6
D12

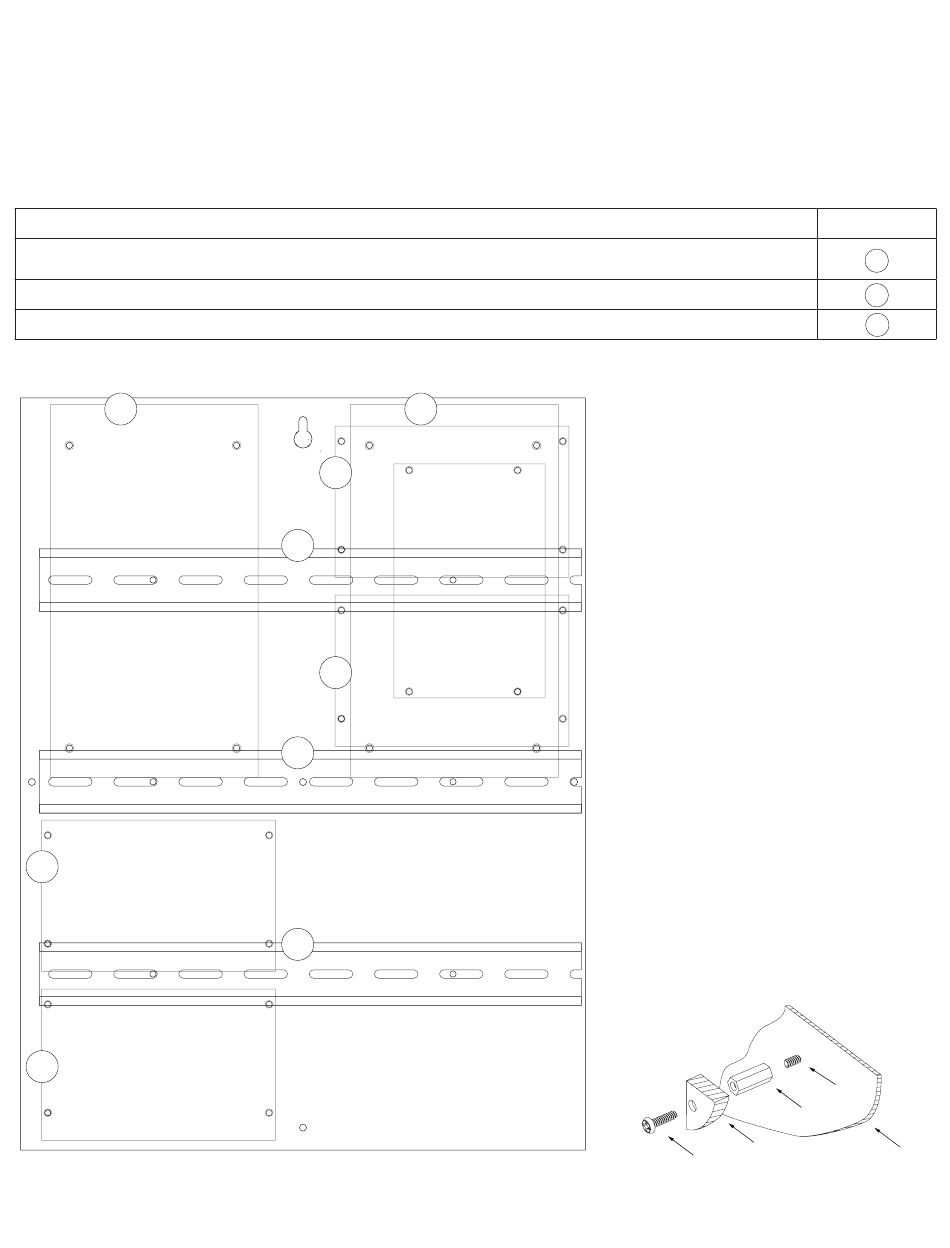

Fig. 2 - Trove1DR1/TDR1 Altronix/DIN Rail Configurations
A
B
B
Trove1DR1 / TDR1 / Trove2DR2 / TDR2 Installation Guide
Power Supply, Sub-Assembly and Access Controller
Position Chart for the Following Models:
B
C
B
C
C
A
Pem Mounting
Pem
Spacer
Altronix
Pan Head
Power Supply or
Screw
Sub-Assembly or DIN Rail
A
B
C
Fig. 2a
Backplane
- 3 -
