Altronix Trove 2 Series Installation Manual page 5

1. Fasten spacers (provided) to pems that match the hole pattern for DIN Rail (Fig. 4, pg. 5).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 4, 4a, pg. 5).
3. Fasten TDR2 backplane to Trove2 enclosure utilizing lock nuts (provided).
Access Controller Position Chart for the Following Models:
DIN Rail
D10, D12, D19
D24

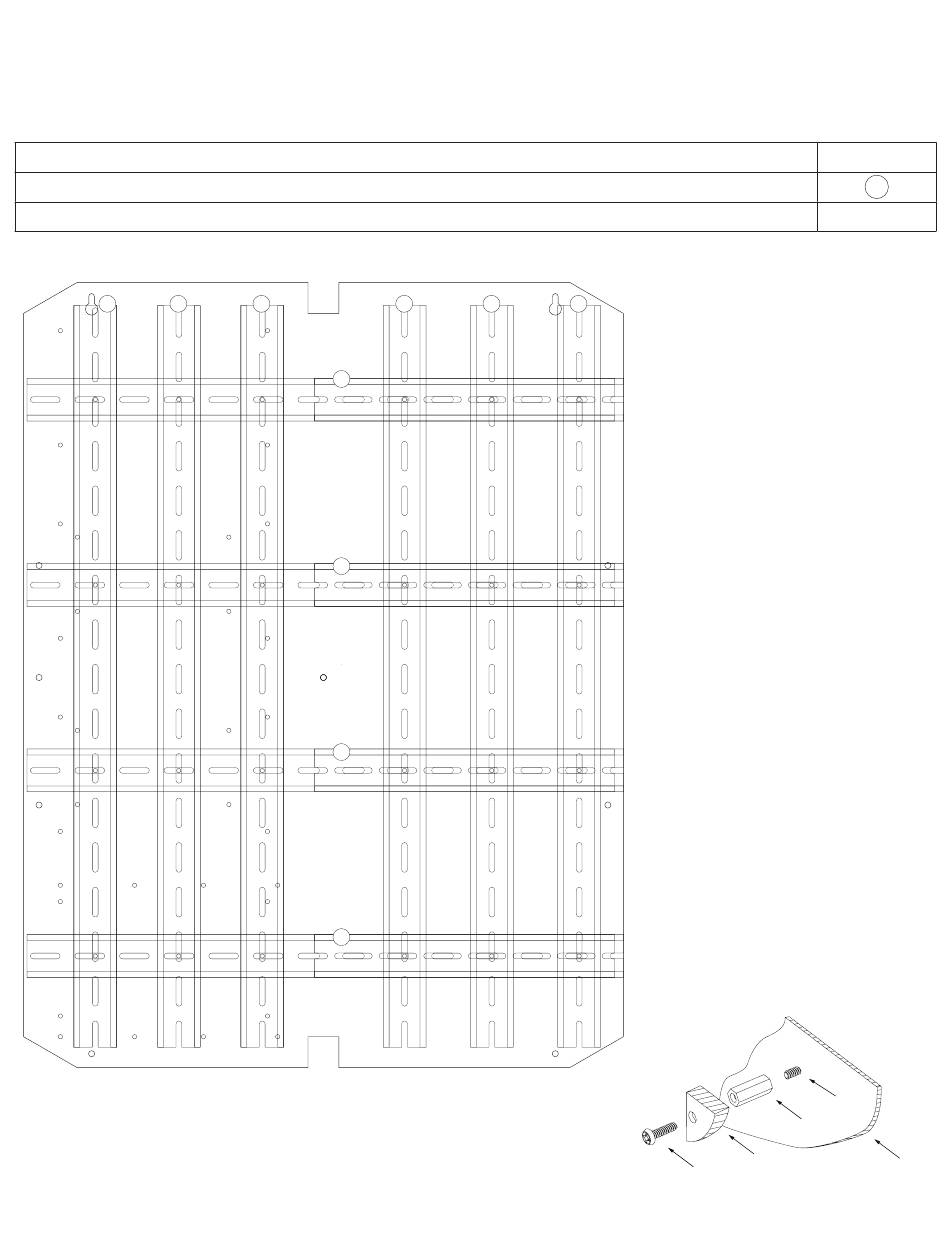

Fig. 4 - Trove2DR2/TDR2 DIN Rail Configuration
D D
Trove1DR1 / TDR1 / Trove2DR2 / TDR2 Installation Guide
TDR2: Configuration of DIN Rail
D D
C
C
C
C
D D
Pem Mounting
Pem
Spacer
Altronix
Pan Head
Power Supply or
Screw
Sub-Assembly or DIN Rail
A
B
Fig. 4a
Backplane
- 5 -
