Overview; Specifications; Installation Instructions For Trove3Bwc And Trove3Swc - Altronix TROVE Trove3WC Series Installation Manual

Altronix Trove3BWC and Trove3SWC are dual-purpose enclosures that can be used as wiring troughs or battery cabinets when mounted above
or below (Trove3BWC) or on either side (Trove3SWC) of the Trove integrated power and access solution. The knockouts on the Trove3BWC and
Trove3SWC have been strategically placed to line up with the Trove3 allowing for easy conduit connections between cabinets.Trove3BWC and
Trove3SWC include camlocks and 2 tamper switches each to ensure access to wiring and batteries is secure.
• 16 Gauge enclosures with ample knockouts for convenient access.
• Cam lock, tamper switches and mounting hardware included.
Trove3BWC:
Trove-compatible enclosure for top or bottom mounting
• Knockout Configuration:
- Five (5) single knockouts 2.415" (2" Conduit)
- One (1) double knockout
1.948" (1.5" Conduit) / 1.701" (1.25" Conduit)
- Six (6) double knockouts
1.362" (1" Conduit) / 1.115" (3/4" Conduit)
• Capacity:
- Accommodates up to four (4) 12VDC/18AH batteries
• Enclosure Dimensions (H x W x D):
30.12" x 7.62" x 7.06" (765.1mm x 193.5mm x 179.3mm).
1. Mark and predrill holes on the wall to line up with the top two (three) keyholes in the enclosure. Install two (three) upper fasteners and
screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the two (three) upper screws; level and
secure. Mark the position of the lower two (three) holes. Remove the enclosure. Drill the lower holes and install the two (three) fasteners.
Place the enclosure's upper keyholes over the two (three) upper screws.
Install the two (three) lower screws and make sure to tighten all screws.
2. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired
location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure
approximately 2" from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the appropriate
UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
3. Mount batteries and/or wires in the enclosure, refer to page 3, 4.
- 2 -

Installation Instructions for Trove3BWC and Trove3SWC:

Overview:

Specifications:

Trove3SWC:
Trove-compatible enclosure for side mounting
• Knockout Configuration:
- Four (4) single knockouts 2.415" (2" Conduit)
- Eight (8) double knockouts
1.362" (1" Conduit) / 1.115" (3/4" Conduit)
• Capacity:
- Accommodates up to four (4) 12VDC/18AH batteries
• Enclosure Dimensions (H x W x D):
36.12" x 8.12" x 7.06" (917.5mm x 206.2mm x 179.3mm).
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Trove3BWC/Trove3SWC Installation Guide

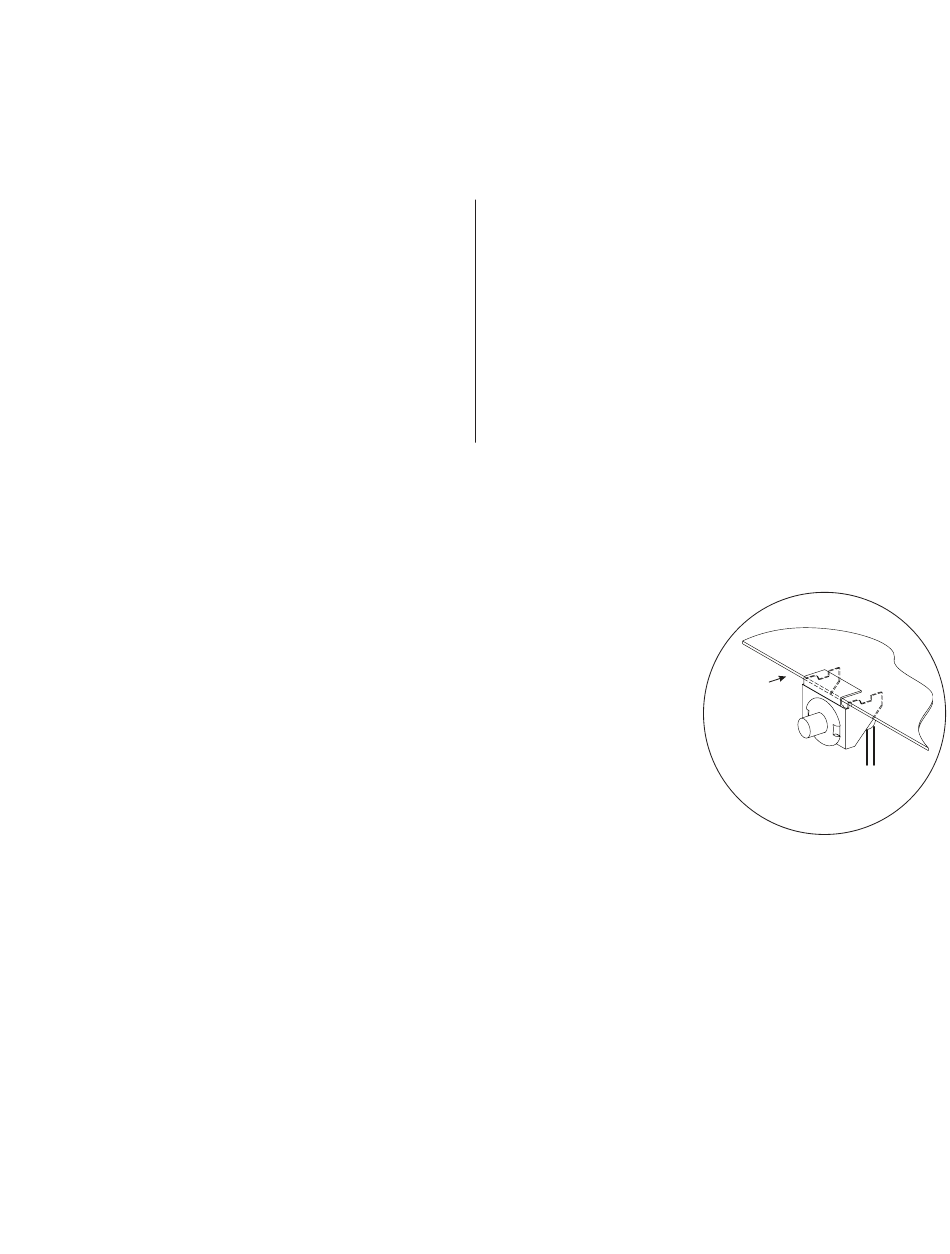

Fig. 1
