Overview; Specifications; Optional Accessories - Altronix TROVE Series Installation Manual

Altronix Trove1V1R rack mount access & power integration solution accommodates various combinations of
®
HID VertX boards with or without Altronix power supplies and accessories for access systems.
Agency Listings:
• CE European Conformity.
Trove1V1R
Trove1R rack mount enclosure with TVR Altronix/HID VertX
• 16 Gauge black enclosure with ample knockouts for convenient access.
• Modular 2U standard EIA 19" drawer with extendable slides up to 48".
• Dimensions (H x W x D): 3.375" x 19.0" x 26.5" (85.8mm x 482.6mm x 673.1mm).
• Includes tamper switch (Altronix Model TS112 or equivalent) and cam lock.
TV1R
®
Altronix/HID VertX
• 16 Gauge backplane.
• Dimensions (H x W x D): 18.5" x 15.25" x 0.3125" (469.9mm x 387.4mm x 7.9mm).

Optional Accessories:

• RE2: Rack Mount Battery Enclosure accommodates up to four (4) 12VDC/7AH batteries
• WM5, WM25, WM100: Magnetic Cable Tie Mounts (5, 25, 100 counts).
• LC3: 6 ft. three-wire line cord.
Backplane Accommodates a Combination of the Following:
Altronix:
• Up to two (2) eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, ACMS8(CB) or ACM8(CB).
• Up to three (3) ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), or VR6.
:
®
HID VertX
• Up to six (6) V100, V200, V300, V1000 or V2000.
Spacer |
- 2 -

Specifications:

backplane.
Hardware and Accessories:

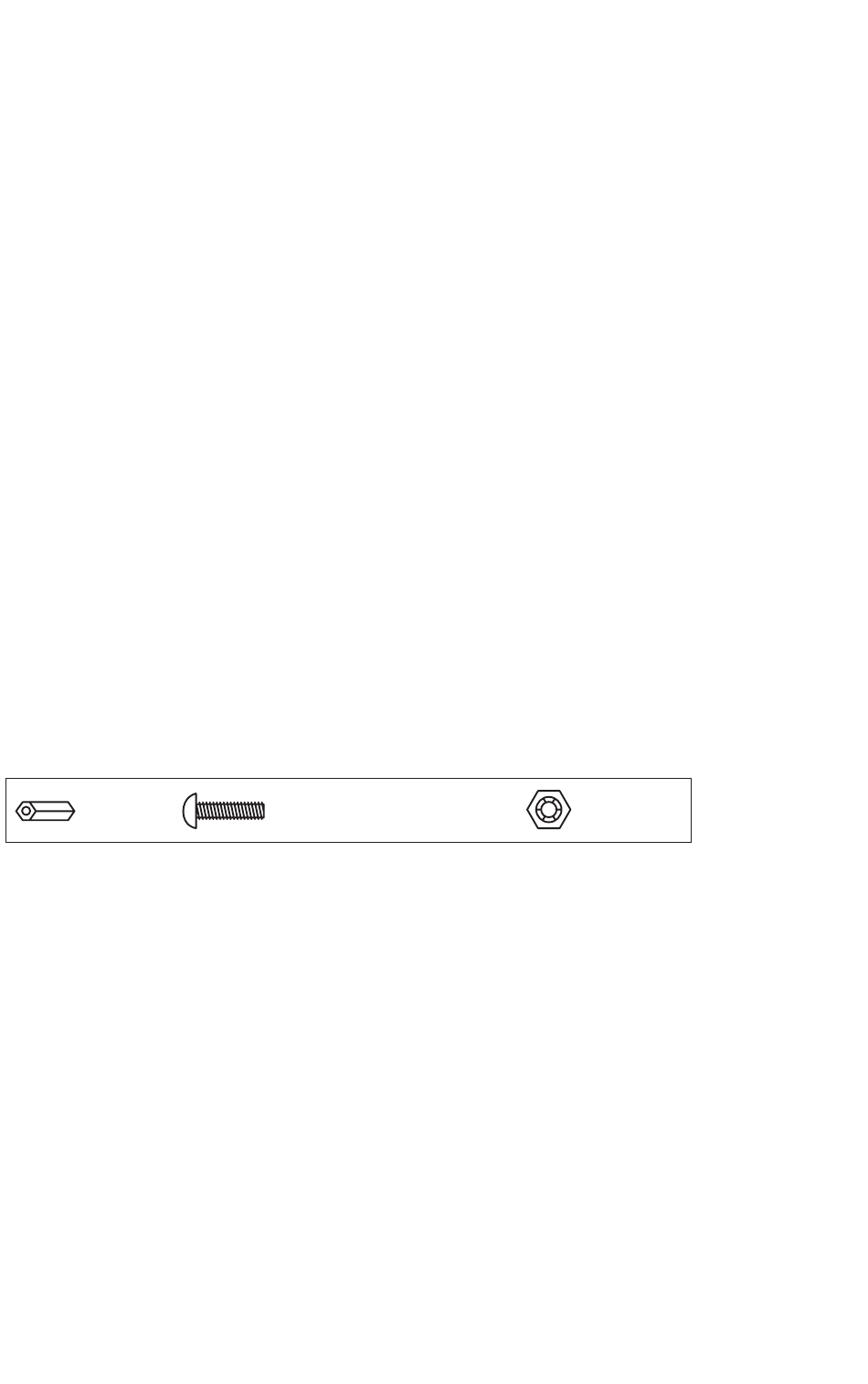

7/8" Pan Head Screw |

Overview:

®
backplane.
Lock Nut
Trove1V1R Installation Guide
