- Page 1 Access & Power Integration Trove2BL2 - Trove2 enclosure with universal blank backplane (TBL2) TBL2 - Universal blank backplane only Trove3BL3 - Trove3 enclosure with universal blank backplane (TBL3) TBL3 - Universal blank backplane only Installation Guide SIGNALING More than just power.™...

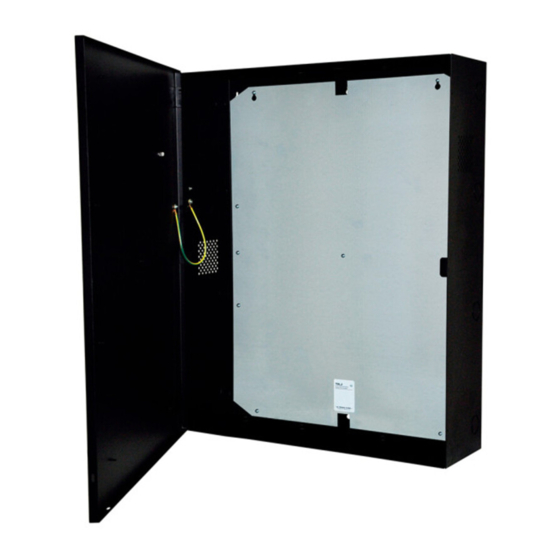

- Page 2 Overview: Trove2BL2 and Trove3BL3 can be customized to accommodate various combinations of access control and power supply boards and accessories for access control systems. TBL2 and TBL3 backplanes are blank, which allows for ultimate flexibility in configuration. Specifications: • 16 Gauge backplane and enclosure with ample knockouts for convenient access.
- Page 3 Trove3 Our Trove™ access and power integration solution lets you easily combine Altronix power with access controllers and accessories available from the industry’s leading manufacturers. A variety of backplanes offer a wide range of scalable access and power configurations. This solution simplifies board Trove2 layout and wire management, while reducing installation and labor costs.
- Page 4 Notes: - 4 - Trove2BL2 / TBL2 / Trove3BL3 / TBL3 Installation Guide...
- Page 5 25.375” x 19.375” x 0.325” (644.5mm x 482.6mm x 8.3mm) 19.375” (492.1mm) 2.2” (55.9mm) 2.2” (55.9mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5” (190.5mm) 7.5” (190.5mm) 9.2” (233.7mm) 9.2” (233.7mm) Trove2BL2 / TBL2 / Trove3BL3 / TBL3 Installation Guide - 5 -...
- Page 6 6.25” (158.8mm) 19.80” (502.9mm) 1.25” (31.8mm) 2.00” (50.8mm) 0.85” (21.6mm) 2.00” (50.8mm) 1.00” (25.4mm) 1.25” (31.8mm) 1.25” (31.8mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.4mm) 7.00” (177.8mm) 5.25” (133.4mm) - 6 - Trove2BL2 / TBL2 / Trove3BL3 / TBL3 Installation Guide...
- Page 7 TBL3 Dimensions 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” (711.2mm) 2.5” (63.5mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 13.5” 13.5” (342.9mm) (342.9mm) Trove2BL2 / TBL2 / Trove3BL3 / TBL3 Installation Guide - 7 -...
- Page 8 8.75” (222.3mm) 2” (50.8mm) Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com...
