Access & Power Integration
Trove1DM1
- Trove1 enclosure with Altronix/DMP backplane (TDM1)
TDM1
- Altronix/DMP backplane only

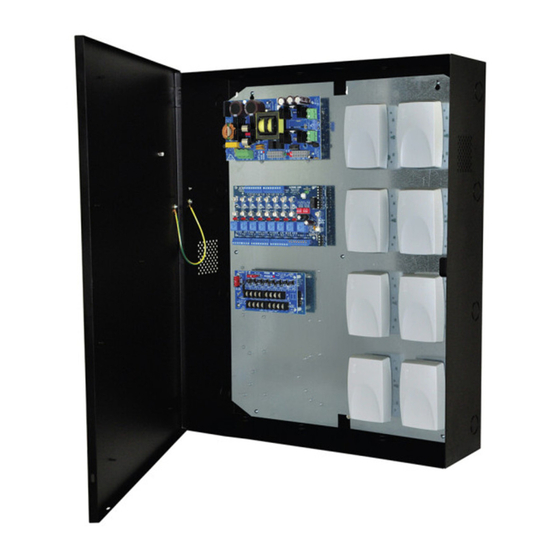

Trove2DM2
- Trove2 enclosure with Altronix/DMP backplane (TDM2)
TDM2
- Altronix/DMP backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TDMP103017
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
More than just power.™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix Trove2DM2
Summary of Contents for Altronix Trove2DM2
-

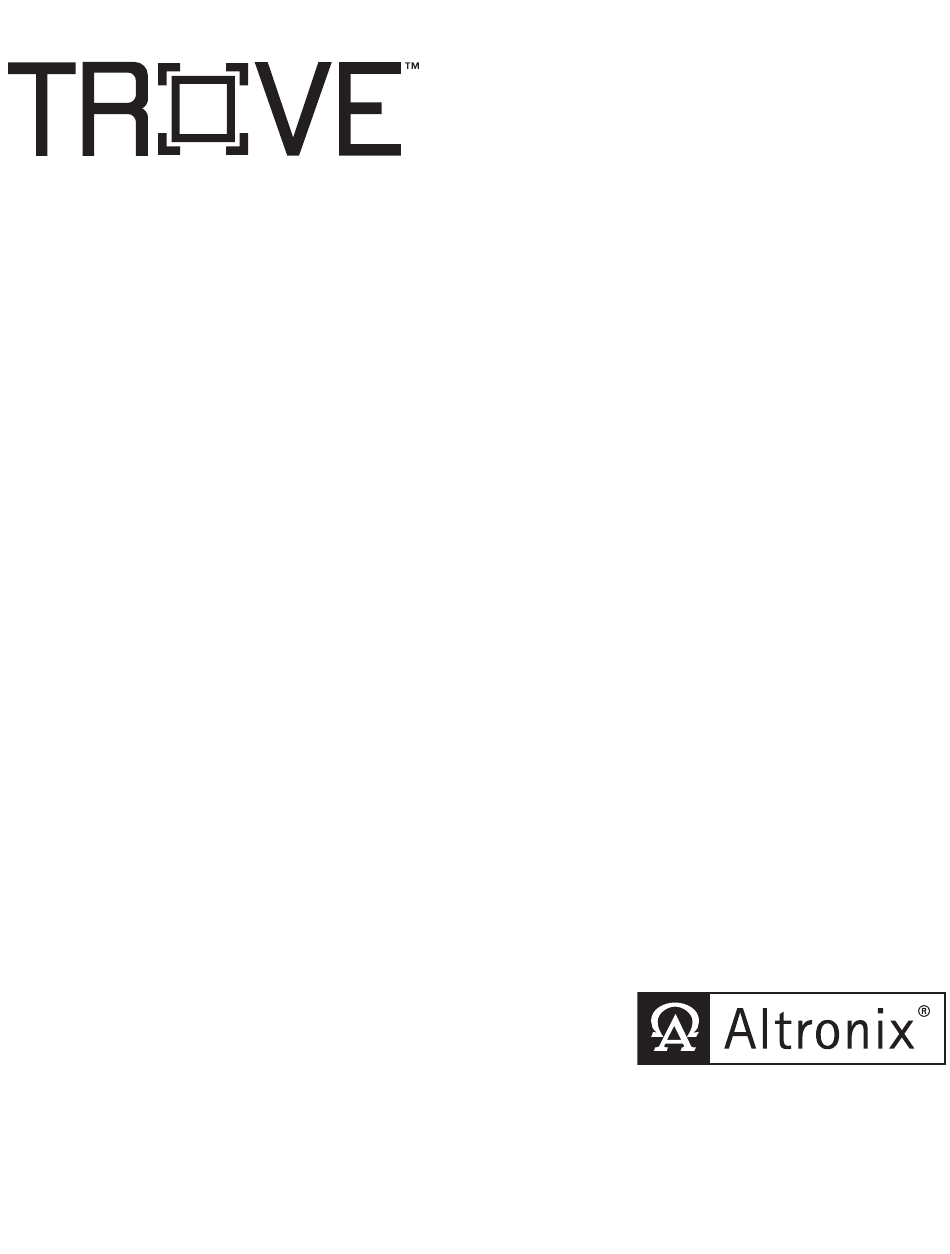

Page 1: Installation Guide
Access & Power Integration Trove1DM1 - Trove1 enclosure with Altronix/DMP backplane (TDM1) TDM1 - Altronix/DMP backplane only Trove2DM2 - Trove2 enclosure with Altronix/DMP backplane (TDM2) TDM2 - Altronix/DMP backplane only Installation Guide More than just power.™ All registered trademarks are property of their respective owners. -
Page 2: Specifications
Overview: Trove1DM1 and Trove2DM2 accommodate DMP 734 and 734N Wiegand Modules with or without Altronix power supplies and accessories for access control systems. Specifications: • 16 Gauge grey backplane and enclosure with ample knockouts for convenient access. Trove1DM1 Trove2DM2 Trove1 enclosure with TDM1 Altronix/DMP backplane Trove2 enclosure with TDM2 Altronix/DMP backplane •... - Page 3 Sub-Assembly Boards and DMP 734 and/or 734N Wiegand Modules 1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 2, pg. 3). Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig.
- Page 4 Sub-Assembly Boards and DMP 734 and/or 734N Wiegand Modules 1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 3, pg. 4). Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig.
- Page 5 TDM1 Dimensions 16.625” x 12.5” x 0.3125” (422.3mm x 317.5mm x 7.9mm) 12.5” (317.5mm) 0.5” (12.7mm) 8.15” (207mm) 15.65” 16.625” (397.5mm) (422.3mm) 0.5” (12.7mm) 6.25” (158.75mm) Trove1DM1 / TDM1 / Trove2DM2 / TDM2 - 5 -...
- Page 6 25.375” x 19.375” x 0.325” (644.5mm x 482.6mm x 8.3mm) 19.375” (482.6mm) 7.5” 7.5” (190.5mm) (190.5mm) 0.156” ( 3.96mm) 25.375” (644.5mm) 12.62” (320.6mm) 1.0” (25.4mm) 0.45” 1.0” (11.4mm) (25.4mm) 7.5” 7.5” (190.5mm) (190.5mm) 9.2” (233.7mm) - 6 - Trove1DM1 / TDM1 / Trove2DM2 / TDM2...
- Page 7 (38.09mm) (14.98mm) 0.569” (14.52mm) 8.5” 8.5” (215.9mm) (215.9mm) 18.0” (457.2mm) 6.5” 6.5” (165.1mm) (165.1mm) 0.6012” (15.27mm) 1.0958” (27.83mm) 4.5” 4.5” 2.75” (114.3mm) (114.3mm) (69.85mm) 1.115” (28.32mm) 1.25” 1.362” (31.75mm) (34.59mm) Trove1DM1 / TDM1 / Trove2DM2 / TDM2 - 7 -...
- Page 8 Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. MEMBER IITrove1DM1 / TDM1 / Trove2DM2 / TDM2...
