Access & Power Integration

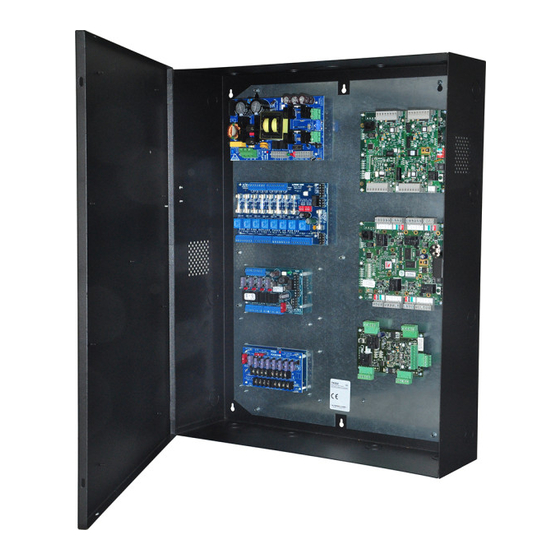

Trove2KS2
- Trove2 enclosure with Altronix/Keri Systems backplane (TKS2)
TKS2
- Altronix/Keri Systems backplane only
Installation Guide
All registered trademarks are property of their respective owners.
TKS2_Rev. 060419
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
More than just power.™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix TROVE Trove2KS2
Summary of Contents for Altronix TROVE Trove2KS2
- Page 1 Access & Power Integration Trove2KS2 - Trove2 enclosure with Altronix/Keri Systems backplane (TKS2) TKS2 - Altronix/Keri Systems backplane only Installation Guide More than just power.™ All registered trademarks are property of their respective owners. TKS2_Rev. 060419 Installing Company: _____________________ Service Rep. Name: __________________________________________...
- Page 2 Overview: Trove2KS2 accommodates various combinations of Keri Systems boards with or without Altronix power supplies and accessories for access systems. Specifications: Trove2KS2 Trove2 enclosure with TKS2 Altronix/Keri Systems backplane. • Includes: tamper switch, cam lock, mounting hardware. • 16 Gauge enclosure with ample knockouts for convenient access.
- Page 3 Installation Instructions for Altronix Power Supplies and Sub-Assemblies to TKS2: Fasten standoffs (provided) into pem configuration (A) or (B) of backplane (Fig. 2, pg. 3). Mount boards to standoffs utilizing 5/16” pan head screws (provided) (Fig. 2a, pg. 3). Mount backplane to enclosure with hardware.
- Page 4 Installation Instructions for Keri Systems Boards to TKS2: Fasten standoffs (provided) into pem configuration (A) or (B) of backplane (Fig. 3, pg. 4). Mount boards to standoffs utilizing 5/16” pan head screws (provided) (Fig. 3a, pg. 4). Note: Keri Systems NXT-2D-MSCNE and NXT-4D-MSCNE boards have one (1) RJ45 jack each. Fig.
- Page 5 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 6 Notes: - 6 - TroveKS...
- Page 7 TKS2 Dimensions (H x W x D): 25.375” x 19.375” x 0.3125” (644.6mm x 492.1mm x 7.9mm) 19.375” (492.1mm) 0.45” 2.2” 2.2” (11.4mm) (55.9mm) (55.9mm) 0.156” ( 3.96mm) 25.375” (644.6mm) 16.25” (412.8mm) 12.625” (320.7mm) 8.5” (215.9mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5”...
- Page 8 (133.35mm) (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. MEMBER IITroveKS F04S - 8 -...
