Trove2AM2
- Trove2 enclosure with
Altronix/AMAG backplane (TAM2)

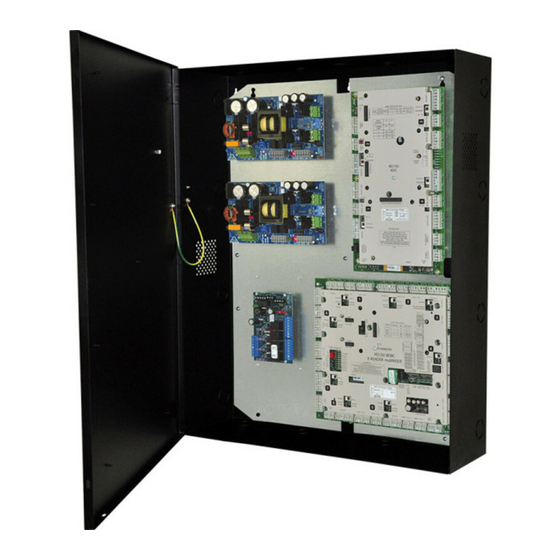

Trove2AM2 accommodates various combinations of AMAG boards with or without Altronix power supplies and accessories for access systems.
Trove2AM2
- Trove2 enclosure with TAM2 Altronix/AMAG backplane.
• Includes: tamper switch, cam lock, lock nuts and
mounting hardware.
• 16 Gauge grey enclosure with ample knockouts for
convenient access.
Enclosure Dimensions (H x W x D):
27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm).
• Two (2) AL400ULXB2, AL600ULXB, AL1012ULXB, AL1024ULXB2, eFlow4NB, eFlow6NB, eFlow102NB, or eFlow104NB.
• One ACM4(CB), ACM8(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), VR6.
• M2150 2DC, M2150 4DC, M2150 AC24/4, M2150 2DBC, M2150 4DBC, or M2150 8DBC.
1.
Remove backplane from enclosure prior to mounting (do not discard hardware).
2.
Mark and predrill holes in the wall to line up with the top keyholes in the enclosure. Install the upper fasteners and screws in the wall
with the screw heads protruding. Place the enclosure's upper keyholes over the screws; level and secure. Mark the position of the
lower holes. Remove the enclosure. Drill the lower holes and install the fasteners. Place the enclosure's upper keyholes over the
upper screws. Install the lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 8).
3.
Mount included UL Listed tamper switch (Honeywell Model 112 or equivalent) in desired location, opposite hinge.
Slide the tamper switch bracket onto the edge of the enclosure approximately 2" from the right side (Fig. 1, pg. 1).
Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4.
Mount Altronix/AMAG boards to backplane, refer to pages 2-4.
Hardware:
Metal or Nylon Standoff
5/16" Pan Head Screw
Lock Nut
All registered trademarks are property of their respective owners.
Installation Guide
Backplane Accommodates a Combination of the Following:
Installation Instructions for Trove2:
TAM2
- Altronix/AMAG backplane only
Overview:
Specifications:
TAM2
- TAM2 Altronix/AMAG backplane.
• 16 Gauge backplane.
• Includes mounting hardware.
Dimensions (H x W x D):
25.375" x 19.375" x 0.3125" (644.6mm x 492.1mm x 7.9mm).
TAM2_Rev. 062216

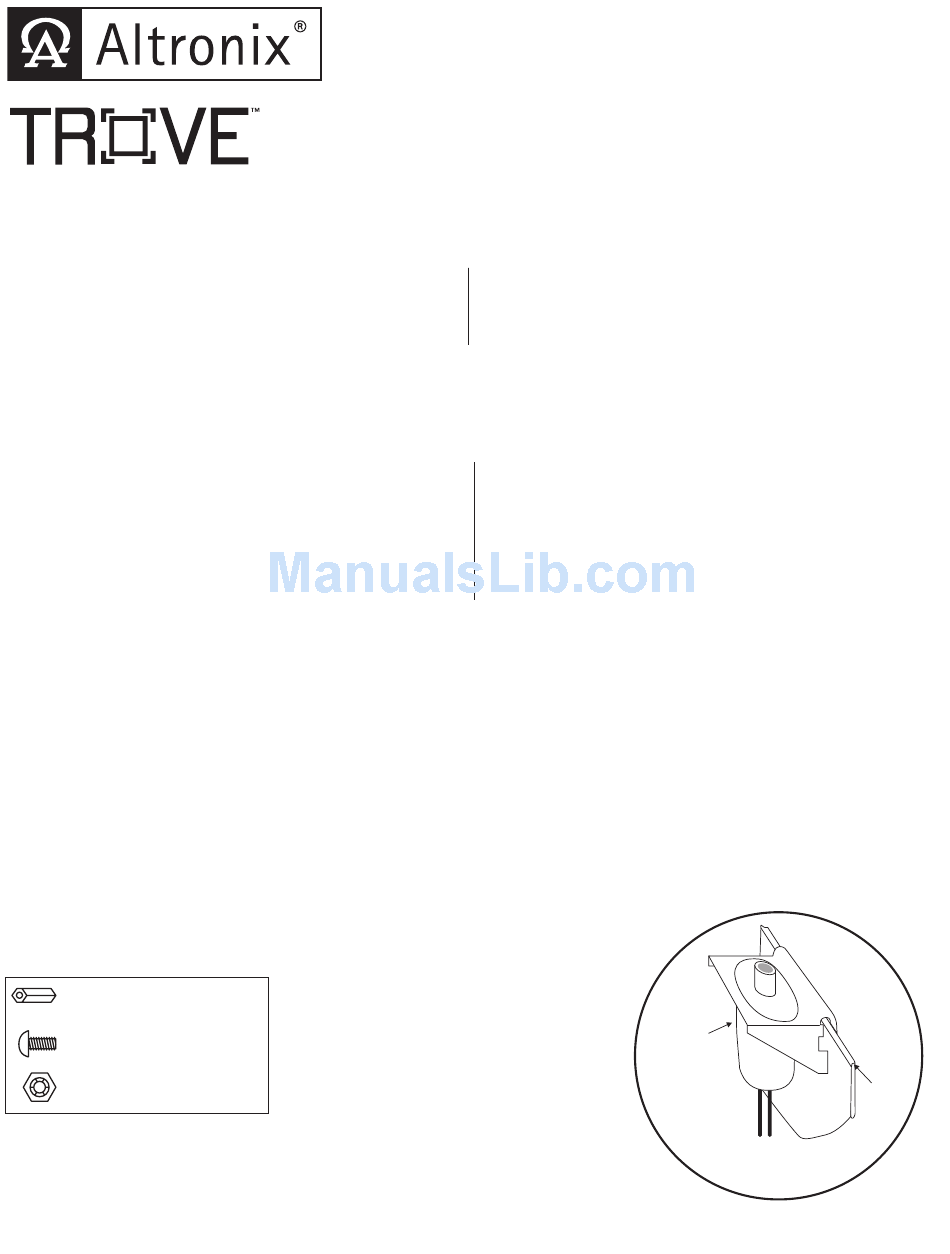

Honeywell
model # 112
Tamper Switch
or equivalent
(provided)
Enclosure
to Access Control Panel
or U.L. Listed
Reporting Device
Fig. 1
Edge of
Enclosure
