Altronix Trove2 Installation Manual

8 door kit with fused outputs

Access & Power Integration

T2PXK7F8

8 Door Kit with Fused Outputs

Fully assembled kit includes:

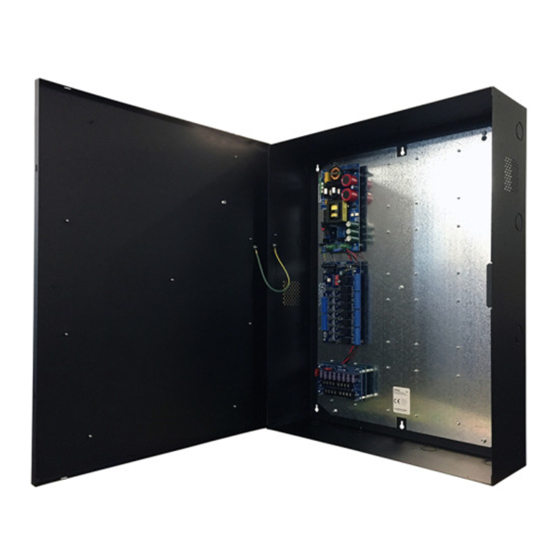

- Trove2 enclosure with TPX2 Altronix/Paxton backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) ACM8 - Fused Access Power Controller

- One (1) VR6 - Voltage Regulator

- One (1) PDS8 - Dual Input Fused Power Distribution Module

All components of this Trove kit are UL Listed sub-assemblies.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

Installation Guide

All registered trademarks are property of their respective owners.

Rev. 040419

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

More than just power.™

Table of Contents

Need help?

Do you have a question about the Trove2 and is the answer not in the manual?

Page 1 T2PXK7F8 8 Door Kit with Fused Outputs Fully assembled kit includes: - Trove2 enclosure with TPX2 Altronix/Paxton backplane - One (1) eFlow104NB - Power Supply/Charger - One (1) ACM8 - Fused Access Power Controller - One (1) VR6 - Voltage Regulator - One (1) PDS8 - Dual Input Fused Power Distribution Module All components of this Trove kit are UL Listed sub-assemblies.
Page 2 Altronix T2PXK7F8 Trove Paxton kit is pre-assembled and consists of Trove2PX2 enclosure/backplane with factory installed Altronix power supply/charger and sub-assemblies. T2PXK7F8 kit also accommodates up to eight (8) Paxton Net2 Plus modules for up to eight (8) doors in a single enclosure.
Page 3 Note: Paxton Net2 Plus modules have one (1) RJ45 jack and one (1) switch each. Please make sure that they are mounted correctly, as shown in Fig. 2 below. 4. Fasten TPX2 backplane to Trove2 enclosure utilizing hardware (provided). Fig. 2...
Page 4 (133.35mm) (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIT2PXK7F8 K05S...
