Access & Power Integration
Trove2HW2
- Trove2 enclosure with Altronix/Honeywell ProWatch/WinPak backplane (THW2)
THW2
- Altronix/Honeywell ProWatch/WinPak backplane only
Trove3HW3
- Trove3 enclosure with Altronix/Honeywell ProWatch/WinPak backplane (THW3)
THW3
- Altronix/Honeywell ProWatch/WinPak backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. THW2103017
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
More than just power.™
Advertisement
Related Manuals for Altronix TROVE Trove2HW2
Summary of Contents for Altronix TROVE Trove2HW2
-
Page 1: Installation Guide
Access & Power Integration Trove2HW2 - Trove2 enclosure with Altronix/Honeywell ProWatch/WinPak backplane (THW2) THW2 - Altronix/Honeywell ProWatch/WinPak backplane only Trove3HW3 - Trove3 enclosure with Altronix/Honeywell ProWatch/WinPak backplane (THW3) THW3 - Altronix/Honeywell ProWatch/WinPak backplane only Installation Guide More than just power.™... -
Page 2: Installation Instructions

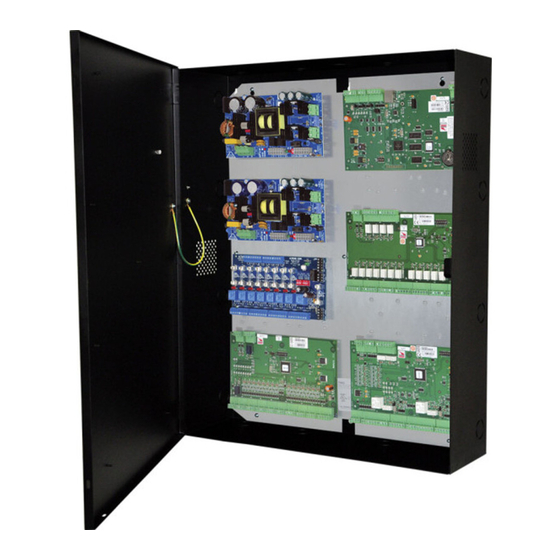

Overview: Trove2HW2 and Trove3HW3 accommodate various combinations of Honeywell ProWatch/WinPak boards with or without Altronix power supplies and accessories for access systems. Specifications: Trove2HW2 Trove3HW3 - Trove2 enclosure with THW2 Altronix/Honeywell backplane. - Trove3 enclosure with THW3 Altronix/Honeywell backplane. • Includes: tamper switch, cam lock, mounting hardware. - Page 3 Installation Instructions for Altronix Power Supplies and Sub-Assemblies to THW2: Fasten standoffs (provided) into pem configuration (A) or (B) of backplane (Fig. 2, pg. 2). Mount boards to standoffs utilizing 5/16” pan head screws (provided) (Fig. 2a, pg. 2). Mount backplane to enclosure with hardware.
- Page 4 Installation Instructions for Honeywell PRO32E1PS or PW6K2E2PS to THW2: Install four (4) mounting screws approximately halfway into mounting holes in the power supply’s frame. Position the power supply over four (4) keyholes (B) on THW2 so the AC Input terminal marked [CN1] (smaller opening in the frame) is positioned to the left.
- Page 5 Installation Instructions for Altronix Power Supplies and Sub-Assemblies to THW3: Fasten standoffs (provided) into pem configuration (A) or (B) of backplane (Fig. 4, pg. 5). Mount boards to standoffs utilizing 5/16” pan head screws (provided) (Fig. 4a, pg. 5). Mount backplane to enclosure with hardware.
- Page 6 Installation Instructions for Honeywell PRO32E1PS or PW6K2E2PS to THW3: Install four (4) mounting screws approximately halfway into mounting holes in the power supply’s frame. Position the power supply over four (4) keyholes (B) on THW3 so the AC Input terminal marked [CN1] (smaller opening in the frame) is positioned to the bottom.
- Page 7 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 8 Notes: - 8 - TroveHW...
- Page 9 THW2 Dimensions (H x W x D): 25.375” x 19.375” x 0.3125” (644.6mm x 492.1mm x 7.9mm) 19.375” (492.1mm) 0.45” 2.2” 2.2” (11.4mm) (55.9mm) (55.9mm) 0.156” ( 3.96mm) 25.375” (644.6mm) 16.25” (412.8mm) 12.625” (320.7mm) 8.5” (215.9mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5”...
- Page 10 Trove2 Enclosure Dimensions (H x W x D approximate): 27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm) 21.50” (546.1mm) 2.00” 5.25” 3.50” 3.50” 5.25” (50.8mm) (133.35mm) (88.9mm) (88.9mm) (133.35mm) 0.685” (17.399mm) 1.25” (31.75mm) 0.5625” (14.29mm) 1.77” Knockouts 6.25” (44.96mm) 1.125”...
- Page 11 THW3 Dimensions (H x W x D): 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” 0.45” (711.2mm) 2.5” (11.4mm) (63.5mm) 0.156” ( 3.96mm) 34” (863.6mm) 25” (635mm) 13.5” (342.9mm) 2” (50.8mm) 1.0” (25.4mm) 1.0” (25.4mm) 13.5” 13.5” (342.9mm) (342.9mm) TroveHW...
- Page 12 (219mm) (222.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. MEMBER IITroveHW I10R - 12 -...
