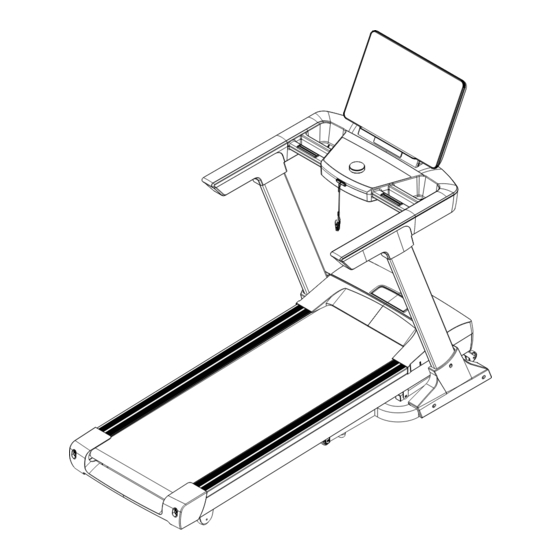

Delta 3.0 Treadmill
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at
www.lifespanfitness.com.au
USER MANUAL
Find the
Digital Manual
Online

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta 3.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LifeSpan Delta 3.0

Summary of Contents for LifeSpan Delta 3.0

  • Page 1 Delta 3.0 Treadmill USER MANUAL Find the Digital Manual Online Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Important Electrical Information ......05 III.

  • Page 3: Important Safety Instructions

    I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. DANGER To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work.
  • Page 4 11) Never drop or insert any object into any openings. 12) The treadmill is intended for in-home use only and not suitable for long time running. 13) To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug from the outlet.

  • Page 5: Important Electrical Information

    II. IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power.

  • Page 6: Important Operating Instructions

    III. IMPORTANT OPERATING INSTRUCTIONS 1) Insert the power plug into the socket directly. 2) The constant running time is less than 2 hours. Be sure to read the entire manual before operating your machine. 3) Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key.

  • Page 7: Assembly Instructions

    IV. ASSEMBLY INSTRUCTIONS The following figure shows the scatter diagram of the parts installed in the whole machine table. Open the packaging box, and you can remove the following parts from the box. PARTS LIST Part No. Description Specs Qty. Part No.
  • Page 8 V. ASSEMBLY INSTRUCTIONS STEP 1 1. Open the package and remove the contents. Lay the machine on flat ground and check all parts are there. STEP 2 1. Use a 6# hexagon wrench (14) to secure the hexagon flat round head screw (68) and the internal serrated locking washer (82) through the base (2) and the right column group (3), and lightly tighten it on the base...
  • Page 9 STEP 3 1. Place the L/R armrest lower cover (99/100) onto the upright post (4/3). STEP 4 1. First, identify the connecting wires in the electronic watch assembly (5). As depicted in the left view, connect the male and female plugs accordingly, place the wires into the column cover, and then insert the electronic watch assembly (5) into the column.
  • Page 10 STEP 5 1. Using a 5# hexagon wrench (13), thread the hexagon flat round head screw (67) and the internal serrated locking washer (86) through the electronic watch assembly and the right column group (3), and gently tighten it on the column.
  • Page 11 STEP 7 1. First, identify the connecting wires in the panel assembly (8). As depicted in the left view, connect the male and female plugs accordingly. Place the wires into the electronic watch, and then insert the panel assembly (8) into the electronic watch assembly.
  • Page 12 STEP 10 1. Insert the power cord (53) into the power cord socket on the main rack. Note that the power cord can be unplugged when the treadmill is not in use. STEP 11 1. Place the safety lock (49) on the electronic watch.

  • Page 13: Folding And Unfolding

    VI. FOLDING AND UNFOLDING FOLDING INSTRUCTION Hold position A with both hands and lift the machine up then push it up slightly until you hear the sound of a click. In the folded size, you can tilt the treadmill onto the transportation wheels and move to desired location.

  • Page 14: Operation Guide

    VII. OPERATION GUIDE 72x72mm 1. WINDOW DESCRIPTION A. "Time" Window: Displays the current time. During the startup process, a 3-second countdown is shown: 3, 2, 1. B. "Speed" Window: Indicates the current speed. C. "Distance" Window: Displays the covered distance. D.
  • Page 15 2. KEY FUNCTION 1. "PROG." Key: Program selection key. The selection order is: Manual Mode, P01-P20, U01-U03, FAT Loop 2. "MODE" button: 2.1 In standby state, it is the reverse counting mode selection key. The selection order is: Manual mode, Distance countdown, Time countdown and Calorie countdown.
  • Page 16 3. Program Mode: • Press the "PROG." button to select one of the built-in programs (P1 to P20). • The "TIME" window displays the default value and flashes. Adjust the exercise time using the "SPEED +/-" (INCLINE +/-) keys. • The built-in program consists of 16 segments, with each segment’s running time set at time/16. Press the START key to begin, and the treadmill adjusts speed and elevation for each segment automatically.
  • Page 17 Body Fat Index Control Body fat index (BMI) Degree of obesity <19 Lean 19--26 Normal 26--30 Overweight >30 Obesity 6. SLEEP FUNCTION After stopping without any operation for 2 minutes, the system resets to standby state, and the backlight goes out. When it is more than 10 minutes, the system turns off all displays and enters sleep state.
  • Page 18 11. IN-BUILT PROGRAM CHART 20 built in Program with 16 Segments Set the set time/16 time periods = the running time of the upper and lower time periods PROGRAM TIME 15 16 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
  • Page 19 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE OPERATION GUIDE |...

  • Page 20: Maintenance Instructions

    VIII. MAINTENANCE INSTRUCTIONS To ensure optimal maintenance and extend the service life of your electric treadmill, consider the following recommendations: 1. After continuous use for 1.5 hours, it is advisable to turn off the power supply and allow the machine to rest for 10 minutes before resuming use.
  • Page 21 2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of the equipment. Inspect and tighten bolts regularly. 3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done on a regular basis.

  • Page 22: Exploded Diagram

    IX. EXPLODED DIAGRAM | EXPLODED DIAGRAM...

  • Page 23: Parts List

    X. COMPLETE PARTS LIST Name Specification Qty. Name Specification Qty. Main frame assembly Blue single branch Brown single branch Base frame assembly Power cord socket Right column group Type I non-metallic insert hexa- Left column group gon lock nut Electronic watch assembly Type I non-metallic insert hexa- gon lock nut Lifting frame assembly...
  • Page 24 Standard spring washer Name Specification Qty. Internal serrated lock washer Hexagon socket flat round M10*50 head Internal serrated lock washer Right base shield Self-tapping and self-drilling screws with cross recessed ST4.2*19 Left base shield disc head and pad Annular thread guard plug Acrylic plate Cross recessed pan head self-tapping and self-drilling...

  • Page 25: Exercise Guide

    XI. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 26 COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post- exercise problems.

  • Page 27: Troubleshooting

    XII. TROUBLESHOOTING Error Code Description Troubleshooting Methods 1. The possible reason is that the current ex- ceeds the rated load, and the system protects itself. Restart the treadmill. 2. The treadmill has detected an obstruction in a specific component or is overheated, prevent- ing the smooth rotation of the treadmill.
  • Page 28 1. Check whether the source socket and motor connection are loose. Hardware error 2. Replace the controller. 1. Power off for 2 minutes then re- Saving data exception start the machine. If there is chang- es, please change the controller. Check whether the connection of Motor calibration error incline is loose and the connection...

  • Page 29: Warranty

    Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed. If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service...

  • Page 30: Hand Pulse Technology

    XIV. HAND PULSE TECHNOLOGY This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and must be amplified 1000 times to make the signal viable for the computer to display your pulse. To ensure proper operation: •...
  • Page 32 WWW.L IF ESPAN F ITNE S S . COM . A U...
