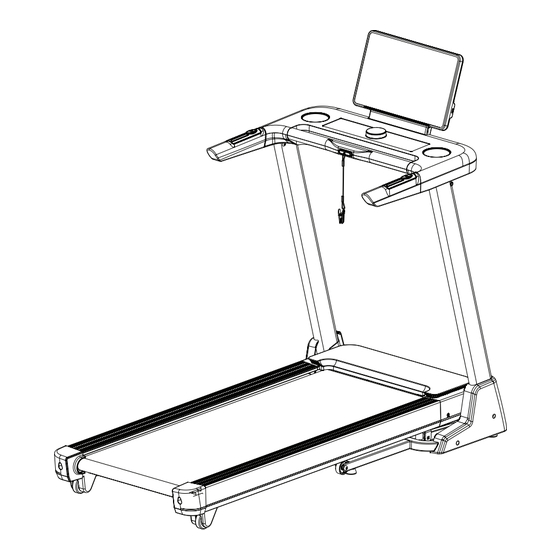

Delta 2.0 Treadmill
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at
www.lifespanfitness.com.au
USER MANUAL
Find the
Digital Manual
Online

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LifeSpan Delta 2.0

Summary of Contents for LifeSpan Delta 2.0

  • Page 1 Delta 2.0 Treadmill USER MANUAL Find the Digital Manual Online Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Important Electrical Information ......05 III.

  • Page 3: Important Safety Instructions

    I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. DANGER To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work.
  • Page 4 11) Never drop or insert any object into any openings. 12) The treadmill is intended for in-home use only and not suitable for long time running. 13) To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug from the outlet.

  • Page 5: Important Electrical Information

    II. IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power.

  • Page 6: Important Operating Instructions

    III. IMPORTANT OPERATING INSTRUCTIONS 1) Insert the power plug into the socket directly. 2) The constant running time is less than 2 hours. Be sure to read the entire manual before operating your machine. 3) Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key.

  • Page 7: Assembly Instructions

    IV. ASSEMBLY INSTRUCTIONS The following figure shows the scatter diagram of the parts installed in the whole machine table. Open the packaging box, and you can remove the following parts from the box. PARTS LIST Description Part No. Specs Qty. Description Part No.
  • Page 8 V. ASSEMBLY INSTRUCTIONS STEP 1 1. Open the package and remove the contents. Lay the machine on flat ground and check all parts are there. STEP 2 1. Hold the upper console by hand, then use the hexagon wrench (54) to lightly secure the hexagon flat round head screw (67) and the internal serrated locking washer (86) to the L/R posts as pictured.
  • Page 9 STEP 3 1. First, use 5 # hexagon wrench to secure the M8*42 hexagon flat round head screw (69) and internal serrated locking washer (86) to the upright post group on the base. 2. Then use 5 # hexagon wrench to secure the M8*16 hexagon flat round head screw (67) and internal serrated locking washer (86) to the column group on the main frame group.
  • Page 10 STEP 5 Place the safety lock (42) on the console . Then connect the power cord (51) to the power supply, and you can then turn on the treadmill. | ASSEMBLY INSTRUCTIONS...

  • Page 11: Folding And Unfolding

    VI. FOLDING AND UNFOLDING FOLDING INSTRUCTION Hold position A with bo th hands and lift the machine up then push it up slightly until you hear the sound of a click. UNFOLDING INSTRUCTION Hold position A with both hands then with your feet push down on the section marked B to release the hydraulic.

  • Page 12: Operation Guide

    VII. OPERATION GUIDE WINDOW DESCRIPTION: 1. "Time" window: Display time. In the startup process, a 3-second countdown is displayed. 2. "Speed" window: Displays the speed. 3. "Distance" window: Displays distance. 4. "Calories" window: Displays calories. 5. "Incline" Window: Displays incline. 6.
  • Page 13 2.2 Under the condition of FAT program, it is used to select the parameters: the selection order is: "gender", "age", "height" and "weight". 3. Knob Key Function: 3.1 "START" button: Press the START button to initiate the treadmill; it will start running three seconds after counting from the lowest speed or program default speed.
  • Page 14 3. Program Mode: Press the "PROG." button and select any one of the built-in programs. The "TIME" window displays the default value and flashes. Use the "SPEED +, -" (INCLINE +, -) keys to adjust to the required exercise time. The built-in program has 16 segments, and the running time for each segment is set time/16.
  • Page 15 Body Fat Index Control Body fat index (BMI) Degree of obesity <19 Lean 19--26 Normal 26--30 Overweight >30 Obesity SLEEP FUNCTION If there is no operation for 2 minutes after stopping, the system resets to the standby state, and the backlight turns off.
  • Page 16 PROGRAM CHART 15 Built-in Program: 16 segments TIME INTERVAL= setting time/16 PROGRAM TIME 15 16 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...

  • Page 17: Maintenance Instructions

    VIII. MAINTENANCE INSTRUCTIONS To ensure optimal maintenance and extend the service life of your electric treadmill, consider the following recommendations: 1. After continuous use for 1.5 hours, it is advisable to turn off the power supply and allow the machine to rest for 10 minutes before resuming use.
  • Page 18 2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of the equipment. Inspect and tighten bolts regularly. 3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done on a regular basis.

  • Page 19: Exploded Diagram

    IX. EXPLODED DIAGRAM EXPLOSIVE DIAGRAM |...

  • Page 20: Parts List

    X. COMPLETE PARTS LIST Carrying wheel Name Specification Qty. Foot pad Main frame assembly Pulse device with start-stop Base assembly Lifting frame assembly Annular thread guard plug B Left column assembly Buffer nut bolt Right column assembly Adjusting roller Console Multi-wedge belt Motor left fixing seat Spacer sleeve...
  • Page 21 Hexagon socket flat round Cross recessed pan head M8*25 M5*8 head screw screws Hexagon socket head Internal serrated lock M8*65 screws washer Hexagon socket head M8*45 Plain washer class C screws Hexagon socket head M6*25 Standard spring washer screws Hexagon socket flat round Internal serrated lock M8*16 head screw...

  • Page 22: Exercise Guide

    XI. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 23 COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post- exercise problems.

  • Page 24: Troubleshooting

    XII. TROUBLESHOOTING Error Code Description Troubleshooting Methods 1. Check connections between electronic watch and lower control line. Ensure each core is fully plugged in. 2. Inspect the connecting line for damage; Poor communication be-tween replace if necessary. watch and controller 3.
  • Page 25 1. Inspect the control motor circuit for abnormalities. 2. Check lower control safety tube; replace if damaged or fallen off. Controller self-test error Ensure proper motor wire connections. 3. Check for burnt IGBT on the lower control; replace if nec-essary. E07/E08 Parameter missing / EEPROM Corrupt 1.

  • Page 26: Warranty

    Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed. If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service...

  • Page 27: Hand Pulse Technology

    XIV. HAND PULSE TECHNOLOGY This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and must be amplified 1000 times to make the signal viable for the computer to display your pulse. To ensure proper operation: •...
  • Page 28 WWW.L IF ESPAN F ITNE S S . COM . A U...
