LifeSpan Delta 2.1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

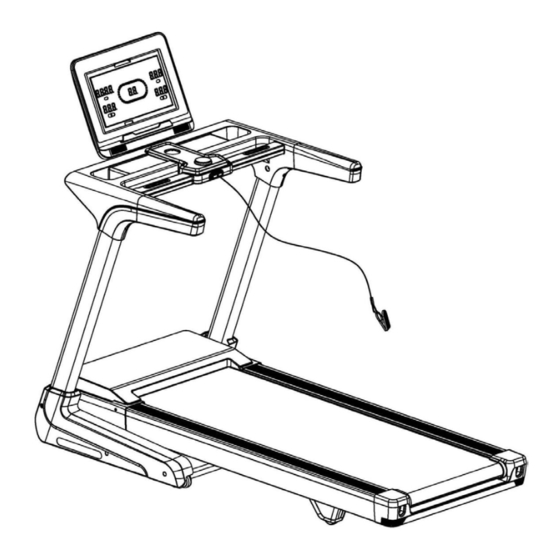

Delta 2.1 Treadmill
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at
www.lifespanfitness.com.au
USER MANUAL
Find the
Digital Manual
Online

Advertisement

Table of Contents
loading

Related Manuals for LifeSpan Delta 2.1

Summary of Contents for LifeSpan Delta 2.1

  • Page 1 Delta 2.1 Treadmill USER MANUAL Find the Digital Manual Online Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Important Electrical Information ......05 III.

  • Page 3: Important Safety Instructions

    I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. DANGER To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work.
  • Page 4 11) Never drop or insert any object into any openings. 12) The treadmill is intended for in-home use only and not suitable for long time running. 13) To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug from the outlet.

  • Page 5: Important Electrical Information

    II. IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power.

  • Page 6: Important Operating Instructions

    III. IMPORTANT OPERATING INSTRUCTIONS 1) Insert the power plug into the socket directly. 2) The constant running time is less than 2 hours. Be sure to read the entire manual before operating your machine. 3) Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key.

  • Page 7: Assembly Instructions

    IV. ASSEMBLY INSTRUCTIONS The following figure shows the scatter diagram of the parts installed in the whole machine table. Open the packaging box, and you can remove the following parts from the box. PARTS LIST Key No. Description Specs Qty. Main Frame Console Base Lubrication Oil...
  • Page 8 V. ASSEMBLY INSTRUCTIONS STEP 1 1. Remove the treadmill from the packaging and place on flat ground. Ensure you have enough space to move. | ASSEMBLY HARDWARE...
  • Page 9 B05 S5 (1x) D11 M8*15 (2x) D28 Ø8 (4x) D07 M8*50 (2x) STEP 2 1. Lift the two up right columns and secure with the bolts D07 and D11, and washer D28 . Ensure the Wire E21 does not fall inside the tube. ASSEMBLY INSTRUCTIONS |...
  • Page 10 B06 S6 (1x) D12 M8*15 (4x) D29 Ø8 (4x) D32 Ø8 (4x) STEP 3 1. Tip the display screen upwards, as pictured. 2. Attach the cables E20 (on display) to E21, see image for reference. 3. Place the display (B) onto the two upright columns and secure with bolt D12 and washers D29 and D32 on both sides.
  • Page 11 STEP 4 1. Cut the safety strap as pictured. ASSEMBLY INSTRUCTIONS |...
  • Page 12 B05 S5 (1x) STEP 5 1. Remove the safety cord (F) by removing bolt B. 2. Lift the machine into the folded position and remove the bolt B on the frame as pictured. | ASSEMBLY INSTRUCTIONS...
  • Page 13 B04 S=13, 14, 15 (1x) STEP 6 1. Install the side covers (C07 & C08) on both sides using bolts D40. ASSEMBLY INSTRUCTIONS |...
  • Page 14 STEP 7 1. Secure the safety key (C19) to the safety key slot on the machine. The other side can be clipped onto your clothing. 2. You can now plug the machine and turn it on. | ASSEMBLY INSTRUCTIONS...

  • Page 15: Folding And Unfolding

    VI. FOLDING AND UNFOLDING FOLDING INSTRUCTION Lift the machine from point K until it clicks at the top. UNFOLDING INSTRUCTION 1. Hold the sides of the machine at point K. 2. With your feet, press at point F to release the hydraulic. The machine will slowly lower. Tip: if it’s not lowering after pressing point F, pull the machine gently at point K towards you to help it slowly lower.
  • Page 16 MOVING INSTRUCTIONS Before moving treadmill ensure the power is switched off and the cord is unplugged. 1. Fold the machine up, then hold onto point K and with your right foot, step on the corner of the right- hand side feet. 2.

  • Page 17: Operation Guide

    VII. OPERATION GUIDE I NCLINE SPEE D PROGRA M ST AR T STOP/P AUS E MODE BUTTON FUNCTIONS: INSTANT INCLINE: Press 4,6,8,10,12 to choose incline quickly. 2. INCLINE +: Press this button to increase the incline. 3. INCLINE -: Press this button to reduce the incline. 4.
  • Page 18 Once your Bluetooth is turned on, from your mobile device, select BHP-02 from the list of available devices and connect. 3. APP CONNECTION: You can connect your mobile with our FitLink App on Google and Apple store. On your mobile device, select Delta 2.1 from the list of available devices and connect. COMPUTER FUNCTIONS: 1.
  • Page 19 TIME INTERVAL= setting time/16 PROGRAM TIME 15 16 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 8.2 Set of 3 User programs: From standby mode, press Mode button, console will show 3 User programs, select between 3 User programs.
  • Page 20 8.3 Set of body FAT test: From standby mode, press Mode button until you get to FAT. - Press Mode button to enter information. Set value with SPEED+/- from F-1 to F-4 (F-1 GENDER, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT) -Press Mode button to enter F-5 (F—5 BODY FAT TEST), hold hands on the hand pulse sensor, the console will display your body fat value after 3 seconds.
  • Page 21 POWER ON ( ) AND POWER OFF ( ): To turn off the treadmill, you can switch off the power, and this action will not cause any damage at any time. We recommend turning it off to preserve control board life if you are not using for a period of time. CAUTION: 1.

  • Page 22: Maintenance Instructions

    VIII. MAINTENANCE INSTRUCTIONS General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the running board and belt.
  • Page 23 2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of the equipment. Inspect and tighten bolts regularly. 3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done on a regular basis.

  • Page 24: Exploded Diagram

    IX. EXPLODED DIAGRAM | OPERATION GUIDE...
  • Page 25 EXPLOSIVE DIAGRAM |...

  • Page 26: Parts List

    X. PARTS LIST Description Remark Qty. Console cover adapter block Panel top cover Base frame Panel bottom cover Main frame Holder Incline bracket Safety key clip Console base bracket Panel connecting bracket Side rail tension seat Left upright tube Running belt Cushion Right upright tube Cushion...
  • Page 27 Bolt M8*30 DC motor Bolt M8*15 Incline motor Bolt M8*15 Switch on-off Bolt M8*65 Power socket Bolt M6*60 Overload protector Bolt M8*40 Magnetic ring Bolt M6*15 Magnetic core Bolt M6*15 Power wire Bolt M8*25 AC signal wire 200 Brown Bolt M5*16 AC signal wire 350 Brown...
  • Page 28 OPTIONAL PARTS LIST Description Remark Qty. Filter Inductance AC signal wire (L 350) Ground wire (L 350) Screw ST4.2*12 Wireless charging adapter board Wireless charging adapter board wire Screw Wireless pulse connecting wire POLAR wireless receiver USB module USB connecting wire 28| PARTS LIST...

  • Page 29: Exercise Guide

    XI. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 30 COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post- exercise problems.

  • Page 31: Troubleshooting

    XII. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in Plug cord into outlet Treadmill will not start Safety Key not inserted Insert Safety Key Running belt tension not Running belt not correct on the left or right sides of the Tighten the adjustment bolts on the centered running board...
  • Page 32 Restart the treadmill. The incoming voltage is too low or too Check the incoming voltage to en- high. The control board is damaged. sure its correct. Inspect moving parts of the tread- mill to ensure that they are operat- ing correctly. E05: Current overload protec- Check the motor, listen for strange tion (Self Protecting System)

  • Page 33: Warranty

    Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed. If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service...

  • Page 34: Hand Pulse Technology

    XIV. HAND PULSE TECHNOLOGY This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and must be amplified 1000 times to make the signal viable for the computer to display your pulse. To ensure proper operation: •...
  • Page 36 WWW.L IF ESPAN F ITNE S S . COM . A U...
