Start-up

Upon start-up the display shows the start screen, which provides information about the device and the
ports. Press the UP/DOWN buttons to navigate between the start screens.
Note:
If no button is pressed, the display will stay on, or turn off after 10 or 30 seconds of inactivity depending on
the display setting. See 6.8.5. Set Display on page 27 for more information.
Product code: 50817

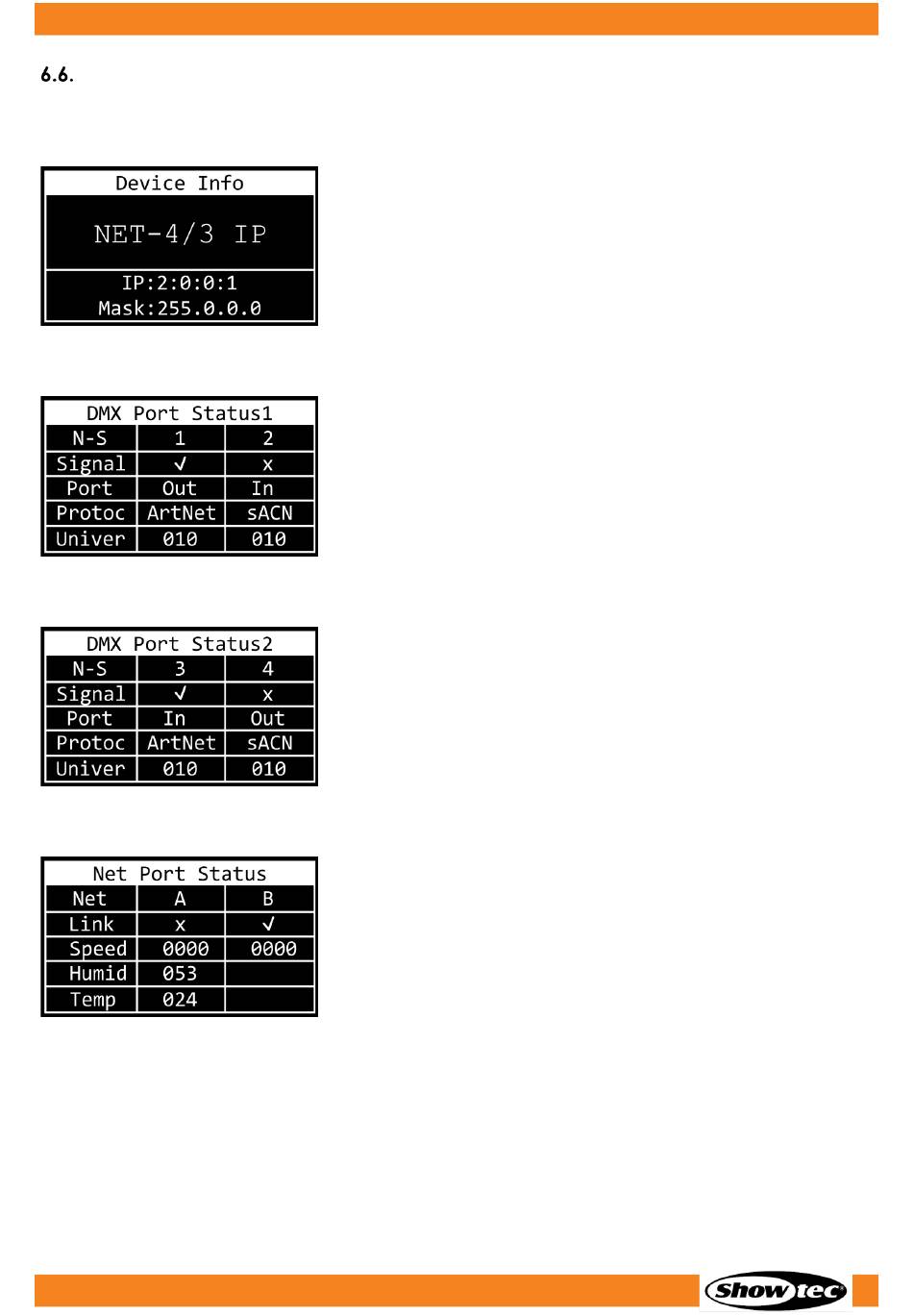

DEVICE INFO
● Name of the device. To change the name, see 6.8.1. Rename
on page 23.
● IP address of the device. To set the IP address, see 6.8.2.1.
Manual IP on page 24.
● Netmask of the device. To set the Netmask, see 6.8.3. Set
Netmask on page 24.
DMX PORT STATUS1
● N-S: Network Status of Port 1 and Port 2
● Signal: () the port is connected; (x) the port is not
connected; (---) the port is disabled
● Port: In – the port is input; Out – the port is output
● Protoc: ArtNet or sACN protocol
● Univer: Art-Net/sACN universe
DMX PORT STATUS2
● N-S: Network Status of Port 3 and Port 4
● Signal: () the port is connected; (x) the port is not
connected; (---) the port is disabled
● Port: In – the port is input; Out – the port is output
● Protoc: ArtNet or sACN protocol
● Univer: Art-Net/sACN universe
NET PORT STATUS
● Net: Network Status of Port A and Port B
● Link: () the port is connected; (x) the port is not connected;
(---) the port is disabled
● Speed: the network speed
● Humid: the humidity of the device
● Temp: the temperature of the device
