NET-4/3 IP, 3-pin
Control Panel
●
Use the MENU button to open the main menu or to exit the current submenu and return to the
previous menu.
●
Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values.
●
Use the ENTER button to open the desired menu, to confirm your choice or to set the currently
selected value.
LED Statuses
There are 2 LED indicators on the device (Ethernet LED indicator (06) and power LED indicator (07)). The
LED indicators have the following functions:
●
ETHERNET:
●
POWER:
In the event that the Ethernet LED indicator (06) or power LED indicator (07) does not light up, see 7.
Troubleshooting on page 31 for more information.
Product code: 50817
If the light is blinking, the device is receiving an Ethernet signal. The faster the flash,
the faster the signal.
If the light is on, the device is powered.

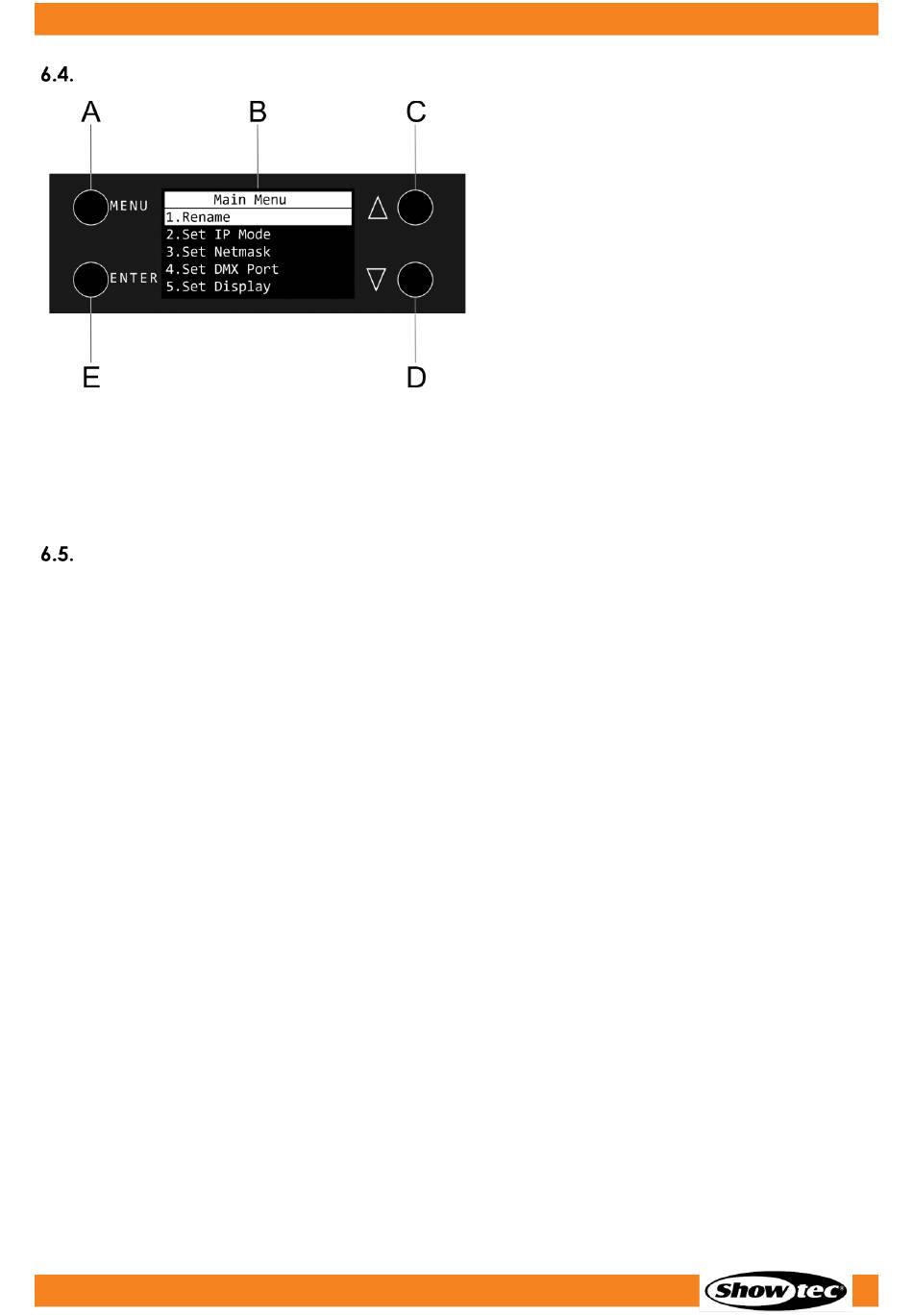

A) MENU button
B) OLED display
C) UP button
D) DOWN button
E) ENTER button
Fig. 14
