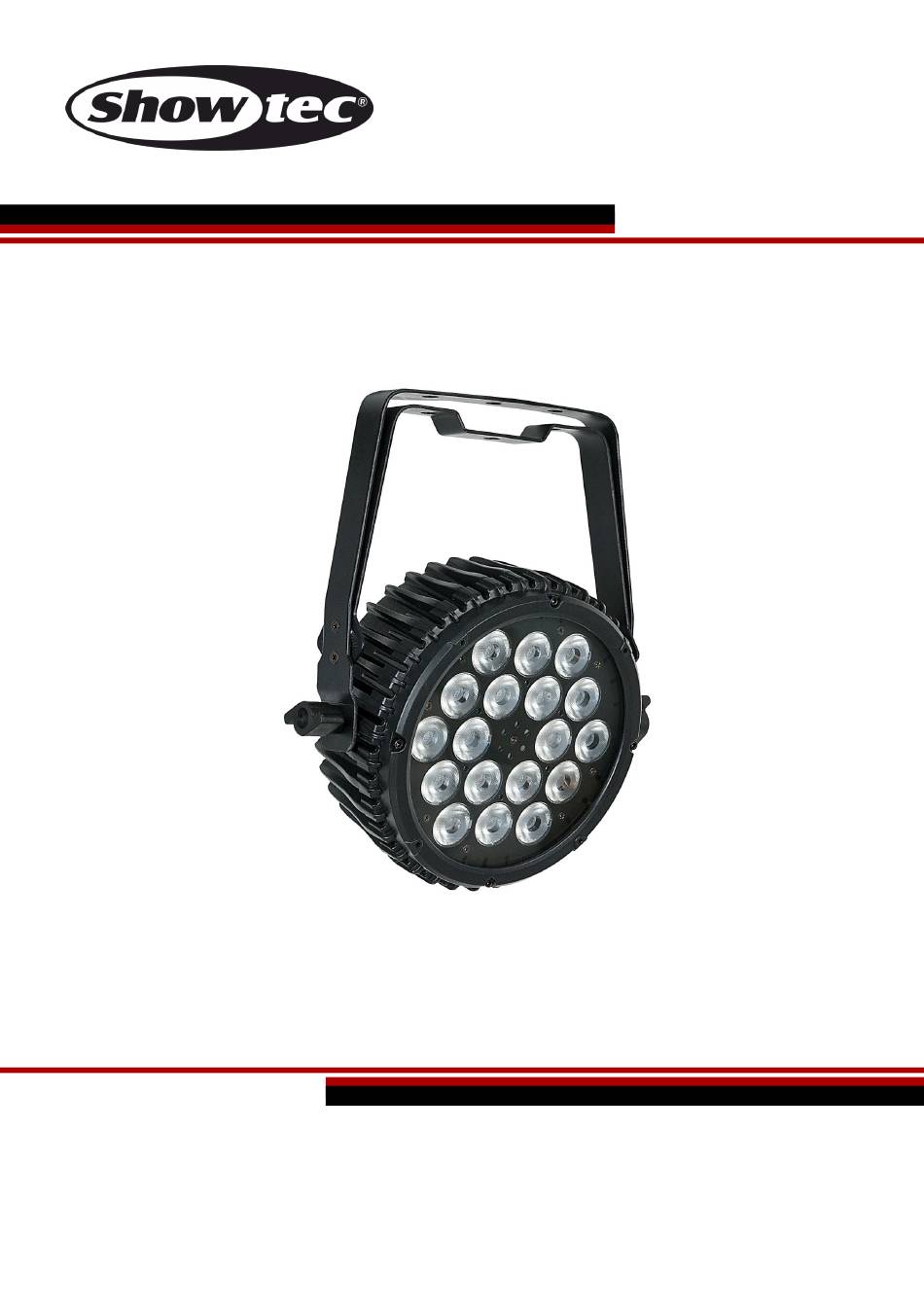

- Page 1 MANUAL ENGLISH Compact Par 18 MKII Ordercode: 42592 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Installation ................................... 8 Set Up and Operation ............................... 8 Control Modes ................................9 One Compact Par 18 MKII (Auto Run Mode, Built-in programs) ..............9 One Compact Par 18 MKII (Sound-controlled) ....................9 Multiple Compact Pars 18 MKII (Master/Slave control) ..................9 Multiple Compact Pars 18 MKII (DMX Control) ....................10... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Compact Par 18 MKII IEC power cable (1,5 m) ... - Page 4 For replacement use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the Compact Par 18 MKII. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
Compact Par 18 MKII ● This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. ● During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective. -
Page 6: Connection With The Mains
Compact Par 18 MKII The Compact Par 18 MKII can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Compact Par 18 MKII Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

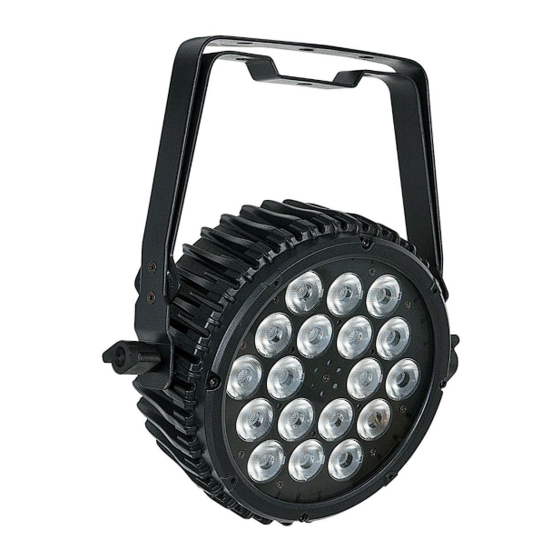

Compact Par 18 MKII Description of the device Features The Compact Par 18 MKII is a compact light effect with high output and great effects. ● Compact flat Par Housing ● Stylish design ● Power Supply: 100-240V AC ● Easy Link Up to 15 units ●... -
Page 9: Backside
09) 3-pin DMX signal connector IN Installation Remove all packing materials from the Compact Par 18 MKII. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
● DMX-512 (1CH, 3CH, 4CH, 6CH) One Compact Par 18 MKII (Auto Run Mode, Built-in programs) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Multiple Compact Pars 18 Mkii (Dmx Control)
Compact Par 18 MKII Multiple Compact Pars 18 MKII (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 12: Fixture Linking
FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). ● DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Compact Par 18 MKII can be operated with a controller in DMX mode or without the controller in stand-alone mode. Ordercode: 42592... -
Page 13: Control Panel
Compact Par 18 MKII Control Panel A) LED display Mode button C) Setup button D) Up button Down button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 14: Menu Overview
Compact Par 18 MKII Menu Overview Ordercode: 42592... -
Page 15: Main Menu Options
Compact Par 18 MKII Main Menu Options Built in programs Auto run DMX address / DMX configuration Master-Slave Sound-controlled Mode Built-in Programs With this menu you can set the built-in programs. 01) Press the Mode button and then the Up/Down buttons, until the display shows 02) Press the Setup button to open this menu. -
Page 16: Auto Run Mode
Compact Par 18 MKII Auto Run Mode With this menu you can start the Auto Run program of the Compact Par 18 MKII. 01) Press the Mode button and then the Up/Down buttons, until the display shows 02) The Compact Par will start immediately the Auto Run program. -
Page 17: Dmx Channels
Compact Par 18 MKII DMX Channels 1 channel Channel 1 – Color macro’s No Function 1-22 23-45 Green 46-68 Blue 69-91 Cyan 92-114 Yellow 115-137 Orange 138-160 Pink 161-183 Purple 184-206 Dark Blue 207-229 Light Green 230-252 White 253-255 Warm White 3 channels Channel 1 –... -
Page 18: Channels
Compact Par 18 MKII 6 channels Channel 1 – Master Dimmer intensity 0-255 Dimmer intensity, from dark to brightest% Channel 2 – Red Dimmer intensity (CH6 must be set to OFF 0-255 Red from 0-100% Channel 2 – RGB Macro (CH6 must be set between 001-024... - Page 19 Compact Par 18 MKII Channel 5 – Strobe (CH1, CH2, CH3, CH4 or CH5 must be set between 001-255 Closed 10-255 Strobe flash frequency, from slow to fast (0-20 Hz) Channel 6 – Color Programs (CH2 must be set 0-24...
-
Page 20: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Compact Par 18 MKII requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 21: No Response To Dmx
Compact Par 18 MKII No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 22: Product Specifications
Compact Par 18 MKII Product Specifications Model: Showtec Compact Par 18 MKII Input Voltage: 100-240 VAC, 50/60Hz Power consumption: 60W (full output) Drive Current: 350mA Refresh rate 7,8 kHz DMX linking: 30 pcs Protection rate: IP-20 Fuse: 1A/250V Dimensions: 250 x 290 x 96 mm (LxWxH) -
Page 23: Dimensions
Compact Par 18 MKII Dimensions Ordercode: 42592... - Page 24 ©2020 Showtec...
