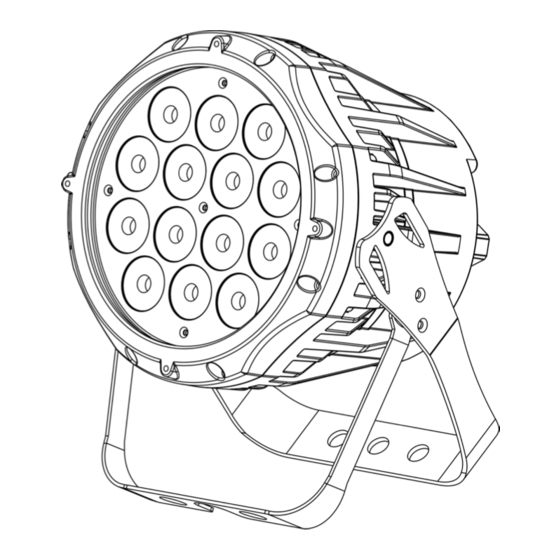

- Page 1 MANUAL ENGLISH Spectral M800 MKII IPX Ordercode: 43532 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
8.2. RGB calibration ..............................21 8.3. Calibration reset ...............................21 9. Safety Lock ................................21 DMX Channels ................................22 9 channels (TOUR) ..............................22 13 channels (TR16) ..............................23 3 channels (ARC1) ..............................25 4 channels (AR1.D) ..............................26 5 channels (AR1.S) ..............................26 3 channels (HSV) ..............................26 Maintenance ..................................27 Ordercode: 43532... - Page 3 Spectral M800 MKII IPX Troubleshooting ................................27 No Light ..................................27 No Response to DMX..............................27 Product Specifications ..............................29 Dimensions ..................................30 Ordercode: 43532...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Spectral M800 MKII IPX Safety cable ... - Page 5 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or safety cable. • When rigging, derigging or servicing the projector, always make sure, that the area below the installation site is secured and that there are not any unauthorized people around. Ordercode: 43532... -
Page 7: Connection With The Mains
UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND Make sure that the device is always properly connected to the earth! Improper installation can cause serious injuries and/or damage of property! Ordercode: 43532... -
Page 8: Return Procedure
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement from which the obligation is resulting. Ordercode: 43532... -
Page 9: Description Of The Device
FL73150 – FL73 – IP65 3-pin XLR/M > 3-pin Neutrik XLR/F (1,5 m) FL733 – FL73 – IP65 3-pin XLR/M > 3-pin Neutrik XLR/F (3 m) FL736 – FL73 – IP65 3-pin XLR/M > 3-pin Neutrik XLR/F (6 m) Ordercode: 43532... -
Page 10: Frontside
Fig. 02 04) 3-pin Neutrik NC3-HD DMX signal cable IN 05) Power cable 100-240V IN 06) Safety eye 07) Power cable 100-240V OUT 08) 3-pin Neutrik NC3-HD DMX signal cable OUT 09) 4-digit LED display + menu buttons Ordercode: 43532... -
Page 11: Installation
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) When the Spectral is not connected with a DMX cable, it functions as a stand-alone device. Please see page 17 for more information about the built-in programs. Ordercode: 43532... -
Page 12: Multiple Spectrals (Master/Slave Control)
04) You can use the same functions on the master device as described on pages 16-17 (Static colors and Built-in programs). This means that you can set your desired operation mode on the master device and all slave devices will react the same as the master device. Multiple Spectrals (Master/Slave control) Fig. 03 Ordercode: 43532... -
Page 13: Multiple Spectrals (Dmx Control)
Do not supply power before the whole system is set up and connected properly. Multiple Spectrals DMX Set Up Fig. 04 Note : Link all cables before connecting electric power Ordercode: 43532... -
Page 14: Fixture Linking
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m). • DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m), FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). Ordercode: 43532... -
Page 15: Control Panel
When no button is pressed for 25 seconds, the display will turn off. To light up the display, you have to press the buttons in the following order: UP, DOWN, UP, DOWN, ENTER. Once you have pressed the buttons, the display will light up. Ordercode: 43532... -
Page 16: Menu Overview
Spectral M800 MKII IPX Menu Overview Ordercode: 43532... -
Page 17: Main Menu Options
05) When the display shows , press the UP/DOWN buttons to increase/decrease the strobe frequency. The adjustment range is between 0-20, from OFF to high strobe frequency. You can combine RED, GREEN, and BLUE to create an infinite range of colors (0-255). Ordercode: 43532... -
Page 18: Built-In Programs
02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to toggle between the following DMX channel modes: TOUR: 9 channels AR1.d: 4 channels TR16: 13 channels AR1.S: 5 channels ARC.1: 3 channels HSV: 3 channels Ordercode: 43532... -
Page 19: Edit Mode
In this way you can add a maximum of 30 scenes. After that, you can start with PR.02 and create a maximum of 30 scenes again. You can repeat these steps, until you’ve reached PR.10, step It is possible to create 300 separate scenes. Ordercode: 43532... -
Page 20: Settings
OFF. 04) If you choose OFF, then RGBW and the master dimmer are linear. 05) The dimmer settings do not have any influence on the device’s performance in DMX TOUR mode. The DMX settings override the dimmer settings. Ordercode: 43532... -
Page 21: Dimming Curve Settings
03) Press the UP/DOWN buttons to toggle between the following 2 options: Classic strobe Special strobe 04) If you have chosen , strobe will be active only if you operate the device in one of the following DMX channel modes/personalities: TOUR, AR1.S and TR16. Ordercode: 43532... -
Page 22: Calibration
05) If this options remains active, the device will always ask for the password upon start-up. 06) In order to unlock the device, press the following buttons in the following order: UP>DOWN>UP>DOWN and confirm by pressing the ENTER button. Ordercode: 43532... -
Page 23: Dmx Channels
Dimmer must be open and strobe must be set to (page 20) Not functional 10-99 Strobe flash frequency, from slow to fast 100-109 Not functional 110-179 Pulse strobe, from slow to fast 180-189 Not functional 190-255 Random strobe, from slow to fast Ordercode: 43532... -
Page 24: Channels (Tr16)
Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 4 – Fine Red Dimmer must be open 0-255 Fine adjustment Red, from 0-100% Channel 5 – Green Dimmer must be open 0-255 Gradual adjustment Green, from 0-100% Ordercode: 43532... - Page 25 Dimmer must be open and strobe must be set to (page 20) Not functional 10-99 Strobe flash frequency, from slow to fast 100-109 Not functional 110-179 Pulse strobe, from slow to fast 180-189 Not functional 190-255 Random strobe, from slow to fast Ordercode: 43532...
-
Page 26: Channels (Arc1)
190-255 Non-linear dimmer 4 (slowest) 3 channels (ARC1) Channel 1 – Red 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue 0-255 Gradual adjustment Blue, from 0-100% Ordercode: 43532... -
Page 27: Channels (Ar1.D)
3 channels (HSV) Channel 1 – Hue (color variations) 0-255 Gradual adjustment hue, from 0-100% Channel 2 – Red color saturation 0-255 Saturation adjustment, from 0-100% Channel 3 – Value (dimmer) 0-255 Gradual adjustment dimmer, from dark to brightest Ordercode: 43532... -
Page 28: Maintenance
Suspect two potential problem areas as: the power supply and the LEDs. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Spectral to your Showtec dealer. 03) If both of the above appears to be O.K., plug the unit in again. - Page 29 Turn up the air conditioning cuts out • Disconnect the fixture and return it intermittently LEDs damaged to your dealer The power supply settings do not • Disconnect fixture. Check settings match local AC voltage and and correct if necessary frequency Ordercode: 43532...
-
Page 30: Product Specifications
Spectral M800 MKII IPX Product Specifications Model: Showtec Spectral M800 MKII IPX Input voltage: 100-240V AC, 60/50Hz Power consumption: 55W (full output) DMX linking: 30pcs Dimensions: 180 x 235 x 320 mm (LxWxH) Weight: 4,4 kg Operating and Programming: Signal pin OUT:... -
Page 31: Dimensions
Spectral M800 MKII IPX Dimensions Ordercode: 43532... - Page 32 ©2015 Showtec...
