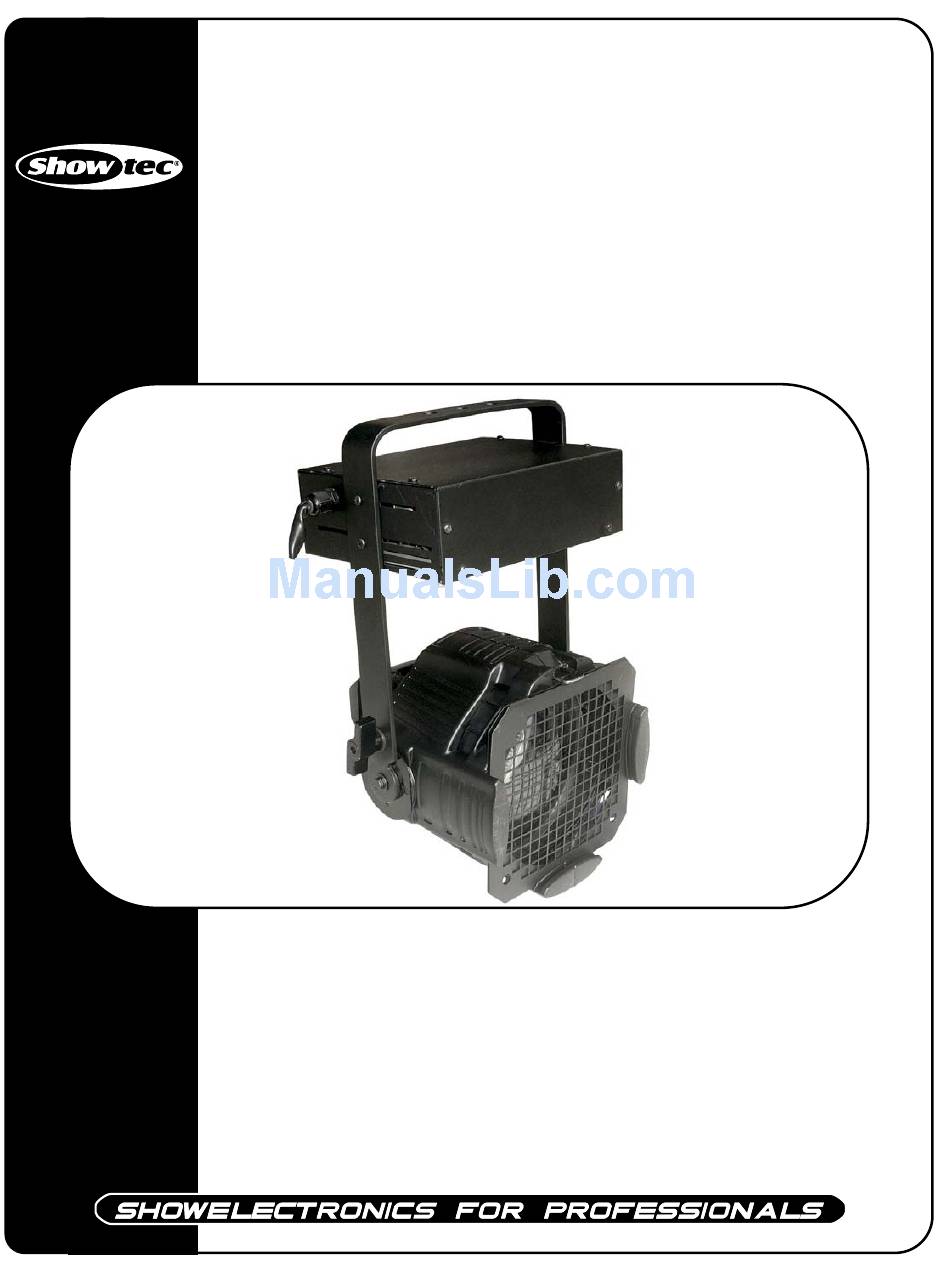

  • Page 1 Studiobeam MSR-575 ORDERCODE 30708...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
  • Page 3: Table Of Contents

    Showtec Showtec Studiobeam Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations…………………………………………………………………………………….. Installing the Studiobeam with a Clamp/Hook……………………………………………………………… Rigging………………………………………………………………………………………………………….. Description..…................……….……………………………….… Features……………………….………………………………………………………….………………….…. Installation................…...……………………….…………….….. Installing the Lamp ............………………………………………..………… Lens Identification............……………………………………………………... Installing a Lens............………………………………………………………... Removing a Lens............…………………………………………………..….. Color Frame Retaining Clip......……………………………………………………………... Set Up and Operation..............……..……………………………….…...
  • Page 4: Warning

    WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.
  • Page 5 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 6: Operating Determinations

    You endanger your own safety and the safety of others! Installing the Studiobeam with a Clamp You can choose an appropriate mounting clamp (ordercode 70109S / 70109B) from Showtec to securely mount your Studiobeam to the trussing system. Once it has been mounted, adjust the mounting position of the Studiobeam.
  • Page 7: Rigging

    Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the Studiobeam is lowered from the ceiling or high joists, professional trussing systems have to be •...
  • Page 8: Description

    Description of the device Features Studiobeam MSR-575 is a Studiobeam from Showtec with RGB-Mix. • Lamp: MSR 575 240V/575W (80915 / 80915O / 80923) • Electronic ballast ensuring maximum and stable light output • 4 lenses included: VNSP, NSP, MFL, WFL Overview Fig.
  • Page 9: Installation

    Installation Installing the Lamp The Showtec Studio Beam uses a MSR 575W (ordercode 80915 / 80915O / 80923) bulbs as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information.
  • Page 10: Installing A Lens

    Installing a Lens 1. When installing the lens, make sure the fixture is on a safe height. Please prevent people from walking under the fixture, when replacing the lens ! 2. Position the fixture with the frontside of the unit (Lens Side) facing you. Then tilt its head slightly (Fig. 5). 3.
  • Page 11: Color Frame Retaining Clip

    Color Frame Retaining Clip The color frame holder is equipped with a spring-loaded retaining clip that prevents color frames and accessories from falling out. Warning !!! Always hang the Studiobeam with the color frame retaining clip in the locked position. 1.
  • Page 12: Maintenance

    3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Studiobeam requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced.
  • Page 13: Troubleshooting

    4. If you are unable to determine the cause of the problem, do not open the Studiobeam, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found.
  • Page 14: Product Specifications

    Product Specification Model: Showtec Studiobeam Voltage: AC 230V-50Hz (CE) Power: 600W Cooling: Ventilator Dimensions: 300 x 250 x 450 mm (LxWxH) Weight: 7,0 kg Lamp Allowed lamp models*: Philips MSR 575 (1000 hr; 6000K) ordercode 80915 Osram HSR 575/2 (750 hr) ordercode 80915O Philips MSR 575 (1000 hr;...
