- Page 1 MANUAL ENGLISH Wipe Out 8RGBW Ordercode: 42569 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Wipe Out 8RGBW Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................7 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Wipe Out 8RGBW with Powercon powercable 1,5m ● 4x Quick locks ●... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Wipe Out 8RGBW Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be more than 1 meter. ●... -
Page 6: Connection With The Mains
Wipe Out 8RGBW Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER... -
Page 7: Description Of The Device

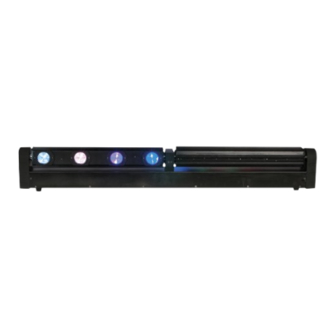

Wipe Out 8RGBW Description of the device Features The Showtec Wipe Out 8RGBW is a compact and powerful fixture for both indoor and outdoor use. ● LED Quantity: 8x 4-in-1 8 Watt RGBW High Power LEDs ● 3 DMX Modes: 1, 37 or 41 Channels ●... -
Page 8: Overview
Wipe Out 8RGBW Overview Fig. 01 01) 8x 4-in-1 8 Watt RGBW High Power LEDs 02) DMX signal connector (IN) 3-pin 03) Neutrik Powercon IN 04) Earth connection 05) Fuse T2AL / 250V 06) ON/OFF 07) LCD Display + Mode, SETUP, UP, DOWN Buttons 08) Neutrik Powercon OUT 09) DMX signal connector (OUT) 3-pin NOTE: Knowledge of DMX is required to fully utilize this unit. -
Page 9: Installation
Wipe Out 8RGBW Installation Remove all packing materials from the Wipe Out 8RGBW. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 10: Multiple Wipe Outs (Dmx Control)
Wipe Out 8RGBW Multiple Wipe Outs (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-p XLR cable to connect the Wipe Outs and other devices. -
Page 11: Fixture Linking
Wipe Out 8RGBW Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
Wipe Out 8RGBW Control Panel LCD Display Mode button Setup Button Up Button Down Button Fig. 04 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the Wipe Out will respond to the controller. -
Page 13: Menu Overview
Wipe Out 8RGBW Menu Overview Ordercode: 42569... -
Page 14: Main Menu Options
Wipe Out 8RGBW Main Menu Options DMX address Master-Slave Settings Auto programs Show (Built-in Programs) Sound-controlled 1. DMX Addressing With this menu you can set the DMX address. 01) Press the MODE button until the display shows 02) Press the SETUP button to open this menu. You can choose 512 different DMX addresses. 03) Use the UP/DOWN buttons to select the required address from 04) Once you have set the desired DMX address, you can also choose the desired DMX Mode. - Page 15 Wipe Out 8RGBW 03) You can use the UP/DOWN buttons to scroll through the 6 options. 04) Use the SETUP button to select one of the 6 menus. Set the value of the LCD dim time Set the value of the motor reset correction Restore to factory default settings No Function at the moment Show the voltage of the main board...
-
Page 16: Auto Run Mode
Wipe Out 8RGBW 4. Auto Run Mode With this menu you can set Auto Run mode of the Wipe Out. 01) Press the MODE button until the display shows 02) Press the SETUP button to open this menu. 03) You can use the SETUP button to choose one of the 2 options. LED Menu BAR Menu 04) You can use the SETUP button to open menu... -
Page 17: Show (Built-In Programs)
Wipe Out 8RGBW 09) You can use the SETUP button to open menu 10) Use the UP/DOWN buttons to change the Colors of the Manual Program. You can now set 11 preset colors, Full On and the flash frequency. 11) You can use the SETUP button to open menu . -
Page 18: Dmx Channels
Wipe Out 8RGBW DMX Channels 1 Channels Channel 1 – Built-in Programs 0-19 LED close, Wipe Out returns to standard horizontal position 20-29 Program 01 30-39 Program 02 40-49 Program 03 50-59 Program 04 60-69 Program 05 70-79 Program 06 80-89 Program 07 90-99... - Page 19 Wipe Out 8RGBW Channel 13 – White Dimmer intensity 0-255 White from 0 – 100% Channel 14 – Red Dimmer intensity 0-255 Red from 0 – 100% Channel 15 – Green Dimmer intensity 0-255 Green from 0 – 100% Channel 16 – Blue Dimmer intensity 0-255 Blue from 0 –...
-
Page 20: Channels
Wipe Out 8RGBW Channel 33 – White Dimmer intensity 0-255 White from 0 – 100% Channel 34 – Red Dimmer intensity 0-255 Red from 0 – 100% Channel 35 – Green Dimmer intensity 0-255 Green from 0 – 100% Channel 36 – Blue Dimmer intensity 0-255 Blue from 0 –... - Page 21 Wipe Out 8RGBW Channel 10 – Red Dimmer intensity 0-255 Red from 0 – 100% Channel 11 – Green Dimmer intensity 0-255 Green from 0 – 100% Channel 12 – Blue Dimmer intensity 0-255 Blue from 0 – 100% Channel 13 – White Dimmer intensity 0-255 White from 0 –...
- Page 22 Wipe Out 8RGBW Channel 30 – Red Dimmer intensity 0-255 Red from 0 – 100% Channel 31 – Green Dimmer intensity 0-255 Green from 0 – 100% Channel 32 – Blue Dimmer intensity 0-255 Blue from 0 – 100% Channel 33 – White Dimmer intensity 0-255 White from 0 –...
-
Page 23: Maintenance
Wipe Out 8RGBW Maintenance The Showtec Wipe Out requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. -
Page 24: Troubleshooting
Response: Suspect three potential problem areas as: the power supply, the LED, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Wipe Out to your Showtec dealer. 03) The fuse. Replace the fuse. See page 22 for replacing the fuse. - Page 25 Wipe Out 8RGBW Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures are cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected. ●...
-
Page 26: Product Specification
Wipe Out 8RGBW Product Specification Model: Showtec Wipe Out 8RGBW Input Voltage: 100-240 VAC Fuse: T2AL / 250V Continuous Power: 91W max @FO (full output) Dimensions: 1065 x 85 x 145 mm (LxWxH) Weight: 8,66 kg Operation and Programming Signal pin OUT:... - Page 27 Wipe Out 8RGBW Email: service@highlite.nl Dimensions Ordercode: 42569...
- Page 28 ©2014 Showtec...
