- Page 1 USER MANUAL ENGLISH Event Bar 2 CCT Product code: 44120 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Event Bar 2 CCT Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Event Bar 2 CCT Table of contents Introduction ................................ 12 Before Using the Product ..........................12 Intended Use ..............................12 Product Lifespan ...............................12 LEDs Lifespan ..............................12 Text Conventions ..............................13 Symbols and Signal Words ..........................13 Symbols on the Information Label ........................13 Safety .................................. 14 Warnings and Safety Instructions ........................14... -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Event Bar 2 CCT ● AC power adapter 15 V DC ● 2 x 25° diffuser ●... -
Page 5: Text Conventions
Event Bar 2 CCT Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons and interface sliders and fields are in bold lettering, for example “Slide the Strobe slider”, “Enter the DMX starting address in the Address field”... -
Page 6: Safety
Event Bar 2 CCT Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 7 Event Bar 2 CCT Attention Power supply Before connecting the AC power adapter to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the AC power adapter.
-
Page 8: Requirements For The User
Event Bar 2 CCT Requirements for the User This product may be used by ordinary persons. Maintenance and installation may be carried by ordinary persons. Service shall be carried out only by instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 9: Description Of The Device

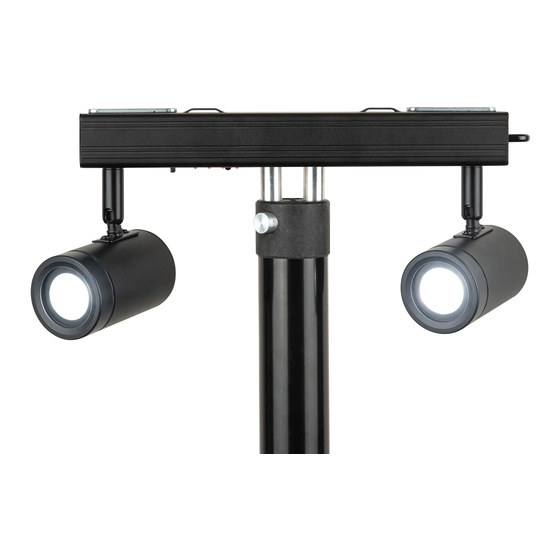

Description of the Device The Showtec Event Bar 2 CCT is designed to be used as a battery LED bar suitable for stage lighting, corporate and private events. The Event Bar 2 CCT can be controlled manually or with a remote control. -
Page 10: Back View
Event Bar 2 CCT Back View Fig. 03 Power switch ON/OFF Charged LED indicator (green) Charging LED indicator (red) DC connector, 15 V DC Bottom View Fig. 04 CCT button Output button Mode button Output level LED indicators Infrared sensor... -
Page 11: Product Specifications
Event Bar 2 CCT Product Specifications Model: Event Bar 2 CCT Electrical: Input voltage: 15 V DC Power consumption: 50 W Physical: Dimensions: 320 x 95 x 147 mm (L x W x H) Weight: 1,4 kg Optics: Light source:... -
Page 12: Dimensions
Event Bar 2 CCT Dimensions Fig. 05 Product code: 44120... -
Page 13: Installation
Event Bar 2 CCT Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 14 Event Bar 2 CCT The mounting options are as follows: Option 1: installation on a rigging structure with clamps Use 2 clamps to attach the device to the supporting structure, as shown in Fig. 06. Secure the device with a secondary suspension, for example a safety cable.
- Page 15 Event Bar 2 CCT Option 4: installation on the WENTEX® Pipes & Drapes system Press and hold down the button on the WENTEX® telescopic upright (Fig. 09). Put the spigots (06) into the openings on the WENTEX® telescopic upright (Fig. 09).
-
Page 16: Diffuser Installation
Event Bar 2 CCT Diffuser Installation The Event Bar 2 CCT is delivered with 2 diffusers: 25°. To install the diffuser, follow the steps below: Put the diffuser on the lens. Gently press the retainer spring as flat as possible and insert it against the diffuser (see Fig. 11). -
Page 17: Charging The Battery
Setup Stand-alone Setup The Event Bar 2 CCT functions as a stand-alone device. It can be operated manually or with an infrared (IR) remote control. For more information about the control modes, refer to 6.3. Control Modes on page Operation... -
Page 18: Turning On/Off
Make sure that the device is turned off with the power switch (07) when the device is not in use. This will prevent the battery from depletion. Control Modes The Event Bar 2 CCT supports the following control modes: ● Maximum Output mode ●... -
Page 19: Remote Control
Event Bar 2 CCT Remote Control The device can be controlled with an IR remote control. DANGER Do not ingest battery, chemical burn hazard The remote control contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. -
Page 20: Maximum Output Mode
Event Bar 2 CCT To operate the device with the IR remote control, point the remote control to the infrared sensor (15). The remote control has the following functions: Button Name Button Name ON/OFF Auto No function No function No function... -
Page 21: Troubleshooting
Event Bar 2 CCT Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 22: Corrective Maintenance
Event Bar 2 CCT Attention ● Do not immerse the device in liquid. ● Do not use alcohol or solvents. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. -
Page 23: Disposal
Event Bar 2 CCT Disposal This device contains a lithium-ion battery. Do not dispose of with the household waste. Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. - Page 24 ©2021 Showtec...
