NET-4/3 IP, 3-pin

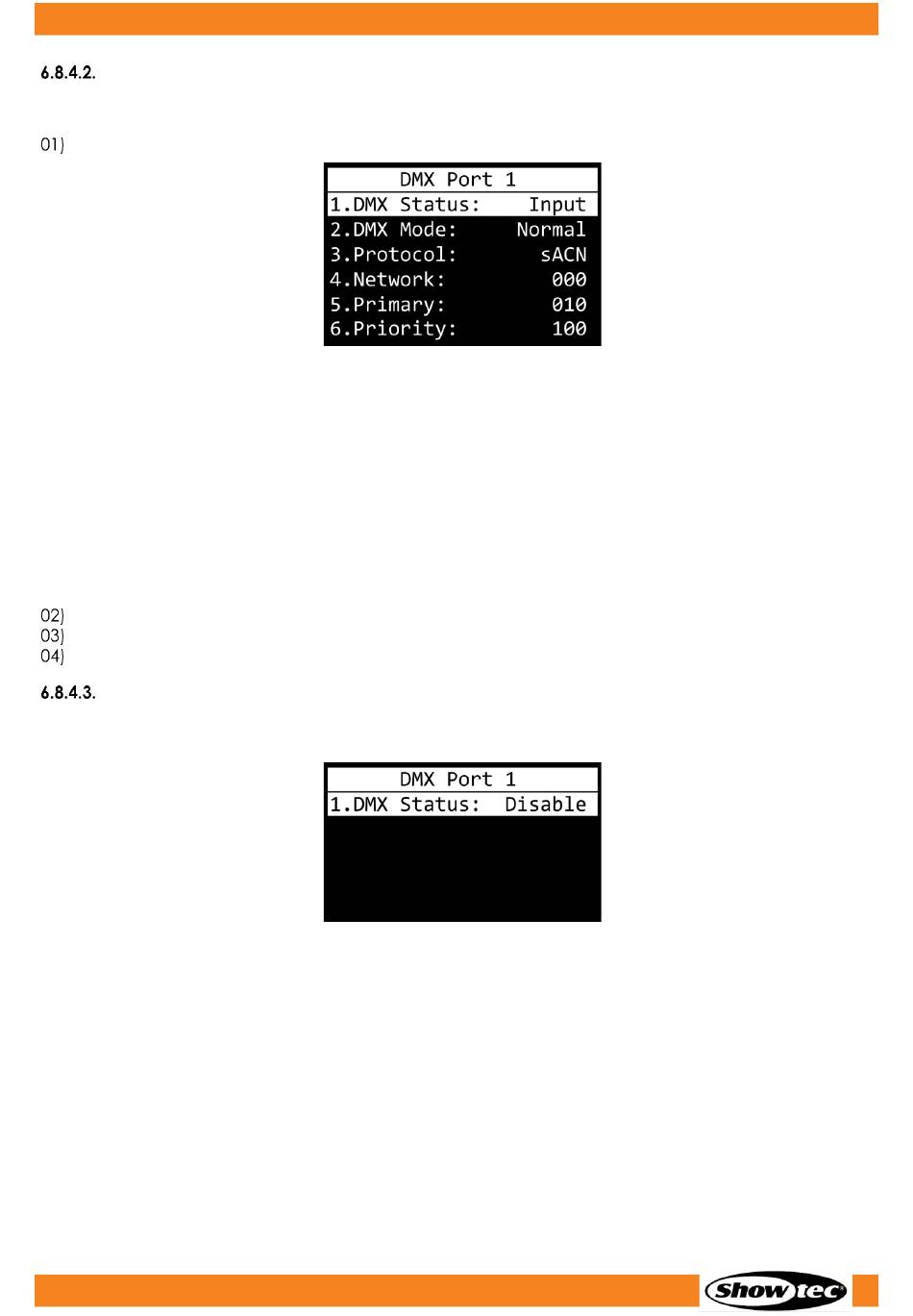

DMX Status: Input

In this submenu, you can adjust the DMX port settings.
Press the UP/DOWN buttons to select one the following 6 options:
● DMX Status:
● DMX Mode:
● Protocol:
● Network:
● Primary:
● Priority:
Note:
Priority is only available with the sACN protocol.
Press the ENTER button to confirm the selection.
Press the UP/DOWN buttons to select the required setting.
Press the ENTER button to confirm the selection.

DMX Status: Disable

In this submenu, the port is disabled.
Product code: 50817
Set the DMX status. The available options are Output, Input and Disable.
Set the DMX mode. The available options are Normal or Backup. In normal DMX
mode, the input port acts as a primary controller. In backup DMX mode, the input
port acts as a backup controller.
Set the protocol. The available options are sACN or ArtNet.
Set the network number. The adjustment range is 0–255.
Set the primary number. The adjustment range is 1–255.
Set the priority. The adjustment range is 0–200.
