MTK982 User Manual
LCD : T
DISPLAY

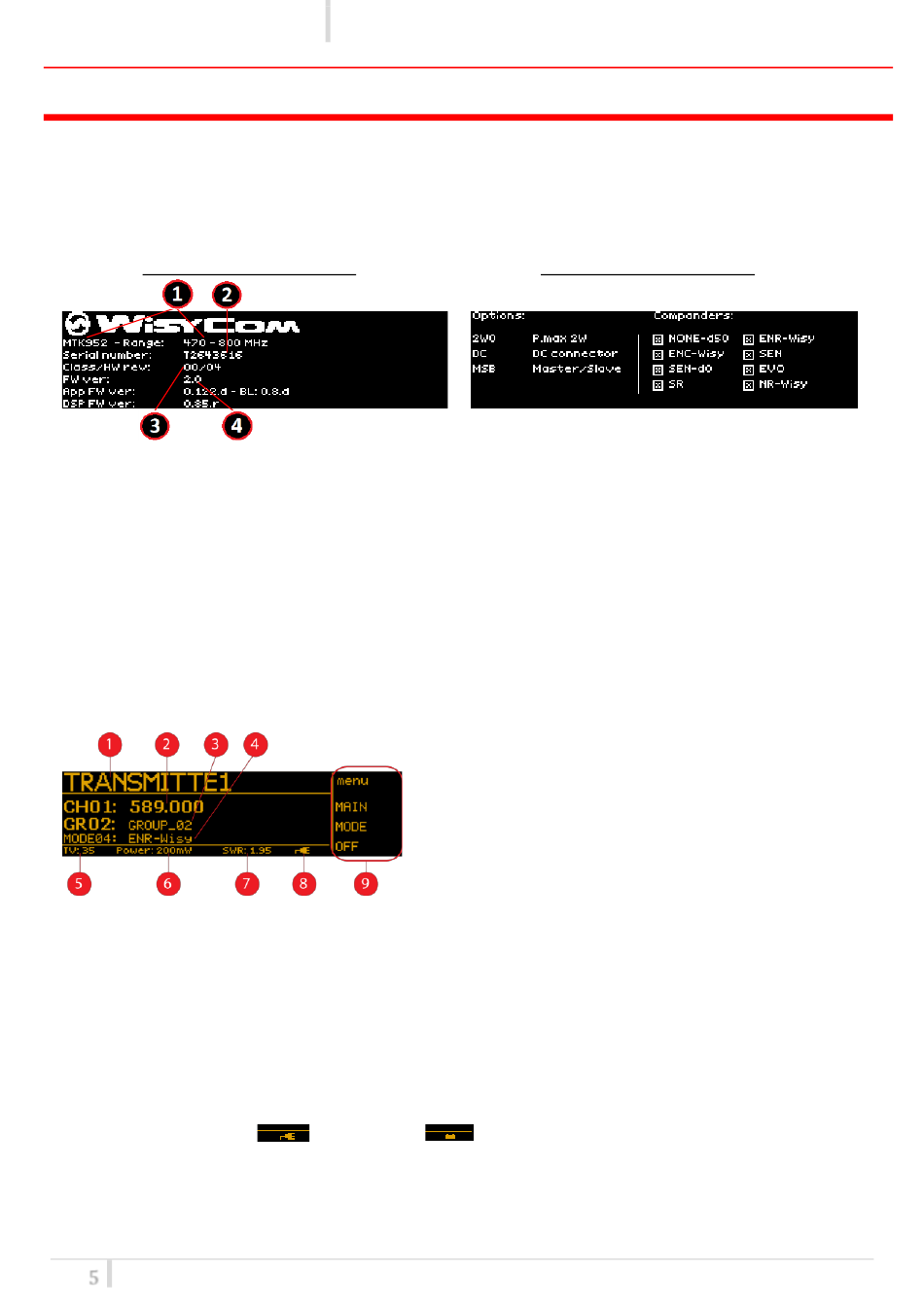

MTK982 info screen
Switch on the MTK982 and by pushing one of rotatory knobs (at the right of the display) all the
basic information are displayed:
Display of TRANSMITTER 1
❶ product and bandwidth
❷ serial number
❸ class and hardware version
❹ Firmware version: it includes application
firmware version and DSP firmware version
Status screen
After switch on, the transmitters display the Status screen
The main view has the following info:
❶ transmitter name
❷ current channel number and current tuning frequency
❸ current group number and group name
❹ current mode
❺ TV channel used for the current frequency
❻ current TX power setting
❼ current SWR (Stationary Wave Ratio)
❽ power supply type (
❾ menu
Thru the main menu on the LCD display and the LED bars for the AF level and modulation the user
has the complete monitoring in real time of the wireless channel in use.
5
rev.03
RANSMITTER MENU
for AC power
Display of TRANSMITTER 2
On the display of TX2, it is possible to check the max
level of power transmitted of the MK952, the
installed options and the companders.
Option:
- W05 / 0W2 /2W0 are the commercial codes to
identificate the max power transmitted
(50/2000/2000mW)
- DC indicate that the DC option (for DC power
supply) is installed
- MSB indicate that the Master-Slave board is
installed (MS option)
for DC power)
