MTP40 User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.04 (rif. FW 110.0P)
Date: 16 July 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTP40 and is the answer not in the manual?

Questions and answers

Related Manuals for WisyCom MTP40

Summary of Contents for WisyCom MTP40

  • Page 1 MTP40 User Manual Wideband Wireless Professional Pocket Transmitter SN: ________________ Rev.04 (rif. FW 110.0P) Date: 16 July 2014...
  • Page 2 MTP40 User Manual Rev.04...

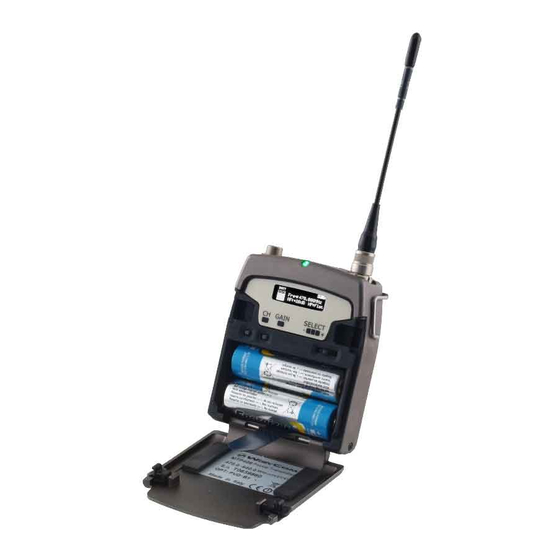

  • Page 3 “MTP40 is an extremely small and light pocket transmitter especially designed for professional wireless microphone applications” Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP40 benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Fig. 1...

  • Page 4: Safety Instruction

    Ptt status: red if active (push to talk “pushed”). ATTERIES MTP40 is working with 2 AA alkaline or NiMH batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking to LED status on power switch (see 1.1).

  • Page 5: Setup Control

    MTP40 User Manual Rev.04 OWERING UP Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: a green LED lights up (blinking when battery is low!) ETUP CONTROL Open transmitter Body to access the “display and controls” area (Fig. 3):...

  • Page 6: Display Menu

    MTP40 User Manual Rev.04 DISPLAY MENU Setup menu are accessed in sequence: STATUS Current FACTORY/USER/PRESET1/2/3/4/5/6/7/8 PRESET Load from Save to USER 00-59 00-39 TUNING 1: 470.000÷640.000 Freq 2: 566.000÷798.000 3: 510.000÷698.000 Name AF In Gain -20÷40 dsB (1dB step) AUDIO...
  • Page 7 First one gives information of antenna to be used. The number displayed is the center-band of the antenna to be used. The second menu gives indication on product: - product id (MTP40), - a number which identify the working band 470-640 566-798...
  • Page 8 PC interface (using the programmer UPK 300 or the receiver MRK950/MRK960). All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible way to pre-program MTP40 configuration. <TUNING> menu This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>).
  • Page 9 Use the selector to change values (<+/->) and <click> to confirm. <NOISE RED> menu This menu can be entered by scrolling selector. MTP40 supports 2 different type of “Companding systems” ENR: designed for maximum noise reduction ENC: designed for maximum audio fidelity (use this in...
  • Page 10 <LOCK> menu This menu can be entered by scrolling selector. Long pressing (2 sec.) selector button (click) it locks MTP40 in transmission mode. To unlock, long pressing (2 sec.) selector button again. <BOOTLOAD> menu This menu can be entered only turning on the transmitter while pushing at the same time both quick channel setup buttons (<ch>...
  • Page 11 The following table sums up which parameters can be set and the related range settings. MENU PARAMETER MEANING RANGE SETTINGS Channel 0 ÷ 59 Group 0 ÷ 39 + SYNC GROUP depends on the MTP40 Model: TUNING 470-640 Freq Frequency 566-798 510-698 Gain of the depends on the mic mode setting...
  • Page 12 MTP40 User Manual Rev.04 MIC Mode setting (only for LEMO option): Pin out MIC Mode: Gain Led Mode Disable None 1=GND Normal ’2 wires’: -40/40 dB Mod. Peak 3=AF Muting No data Disable None 1=GND Normal ‘2 wires + bias’: -20/40 dB Mod.

  • Page 13: Accessories And Parts

    Band 595 ÷ 698 MHz Antenna Code label Antenna Code label CAL48 Cable to connect an MTP30 (with option /PHA) or MTP40/40S to a PHA48 to use microphone with XL3/48V connection CAL120 AF cable (120cm), LEMO 3pole / XLR-3F connectors PHA48 Plug-on for XLR3 Mic with 48V Phantom power.
  • Page 14 Rev.04 . 1.3.1.1 ISYCOM IR PROGRAMMER AND ABOVE Wisycom IR Programmer allows to read, modify and update the MTP40 device configuration. It is necessary to  install Wisycom IR Programmer (version 1.3.1.1 or above) WARNING: If it is the first installation and Wisycom USB driver has not already installed in the PC, install the USB driver (run C:\Program Files (x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)

  • Page 15: Interface And Device Panel

    MTP40 User Manual Rev.04 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed.  USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration.

  • Page 16: Tuning Frequencies Panel

    MTP40 User Manual Rev.04 TUNING FREQUENCIES PANEL With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the...
  • Page 17 MTP40 User Manual Rev.04 Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file. To save the frequencies of all the groups click to the related button above. The legacy option save the channels without the hidden/lock...

  • Page 18: Presets Panel

    Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file.

  • Page 19: Technical Specifications

    FM, with 50 µs pre-emphasis Modulation ±40 kHz (Peak deviation = ±56 kHz) Nominal deviation MTP40 transmits also a digitally modulated sub-carrier, suitable for: Telemetry ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation feature Configurable on ‘mic’...
  • Page 20 (use FVB.00.303.NLAE24 with on Mic) 510-698 MHz 2 PIN MICRODOT CONNECTOR ▪ COLOR (-Y) body color "matt black" Ex. MTP40-L-B1 is 3 pins LEMO connector , matt black color and 470-640 Mhz frequency range MTP40 5.5V (3 wires) AF + 5.5V (2 wires) Option Lemo Conn.

  • Page 21: Declaration Of Conformity

    MTP40 User Manual Rev.04 DECLARATION OF CONFORMITY...
  • Page 22 MTP40 User Manual Rev.04 ENVIRONMENTAL INFORMATION Applicable in the European Union and other European countries with separate collection systems Disposal of Old Electrical & Electronic Equipment (2002/96/EC) This symbol indicates that this products shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment.
  • Page 23 MTP40 User Manual Rev.04...
  • Page 24 Wireless System Communications Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733 www.wisycom.com  e-mail: sales@wisycom.com...
