(only for analog input)
Audio gain left
Audio gain right
AF level meter
Mono config
(only for mono Mode)
Auto switch DIG->AN
Equalizer
This menu allows to of adjusting the gain between frequency components (bass, mid and treble)
within the audio signal. There are 4 windows in cascade:
bass windows: allows to change gain and frequency of low frequencies
mid windows: allows to change gain and frequency of middle frequencies
treble windows: allows to change gain and frequency of high frequencies
eq windows: allows to save the equalization parameter or exit without save
Each window shows the following information:
❼ ❻
HP filter LP filter
set in the set in
mode the
menu mode
menu

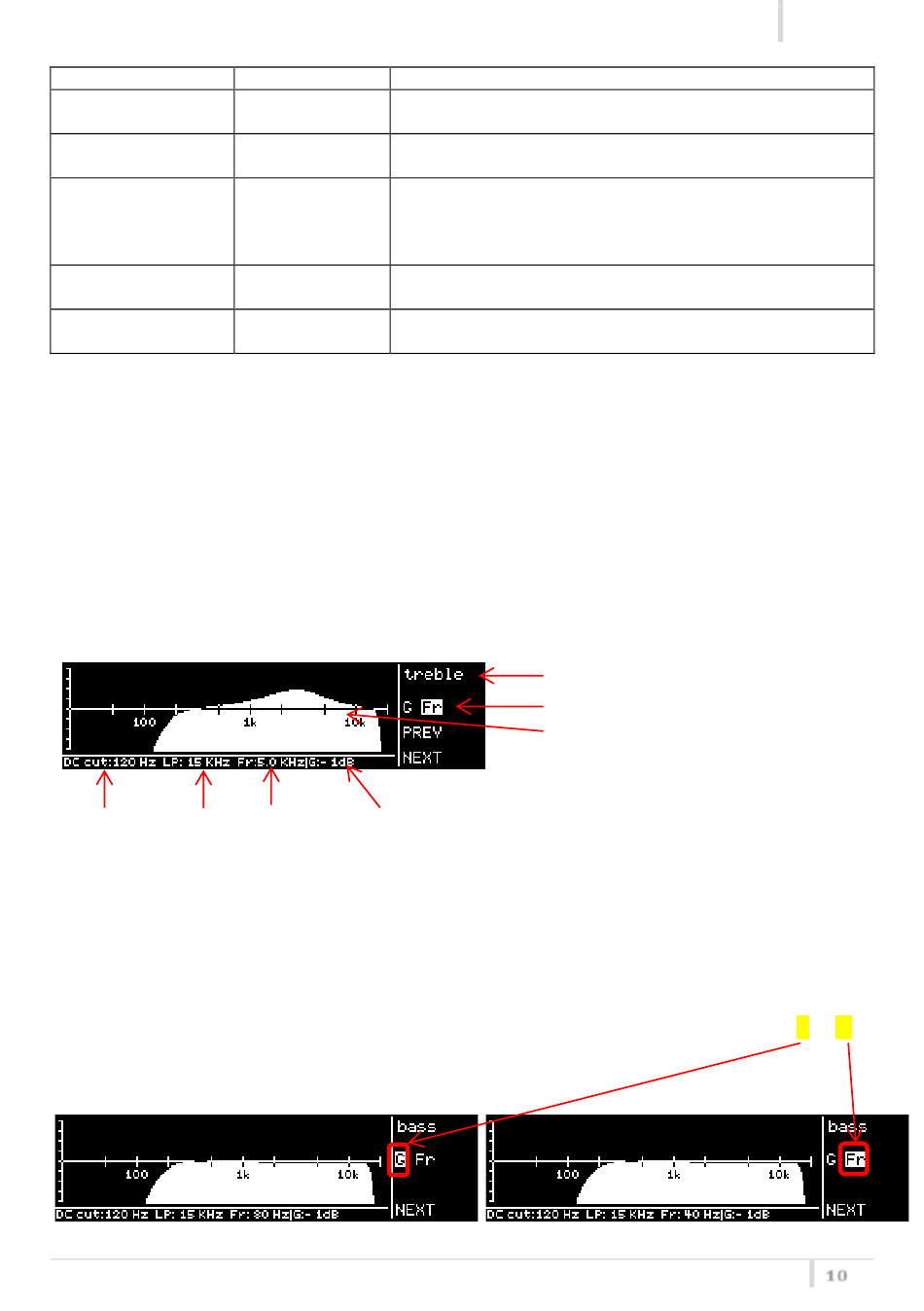

For each window it is showed the graphic equalizer which help to see the set parameters. Push the
rotatory knob to change the parameter between gain and frequency (the respective letter G or Fr
is highlighted during the setting phase) and
both R(right) and L(left) channels input
-20÷24dB To change (increase or decrease) the input level of the left
channel on DSP
-20÷24dB To change (increase or decrease) the input level of the right
channel on DSP
input/modulation To set which AF level is shown in the two LED bars for the AF
levels (L=left & R=right levels): they can show AF input levels or
modulation levels (after the pre-emphasys and compander
phases)
Mono/mono-R/ To set the type of mono input
mono-L
enabled / If enabled and the digital signal is lost (parameter Input set to
disabled digital), the transmitter takes the signal from the analog input.
❺ ❹
set set gain
frequency
MTK982 User Manual
❶ windows name
❷parameter to set (gain or frequency)
❸ graphic equalizer: frequency on
horizontal axis, gain on the vertical axis
