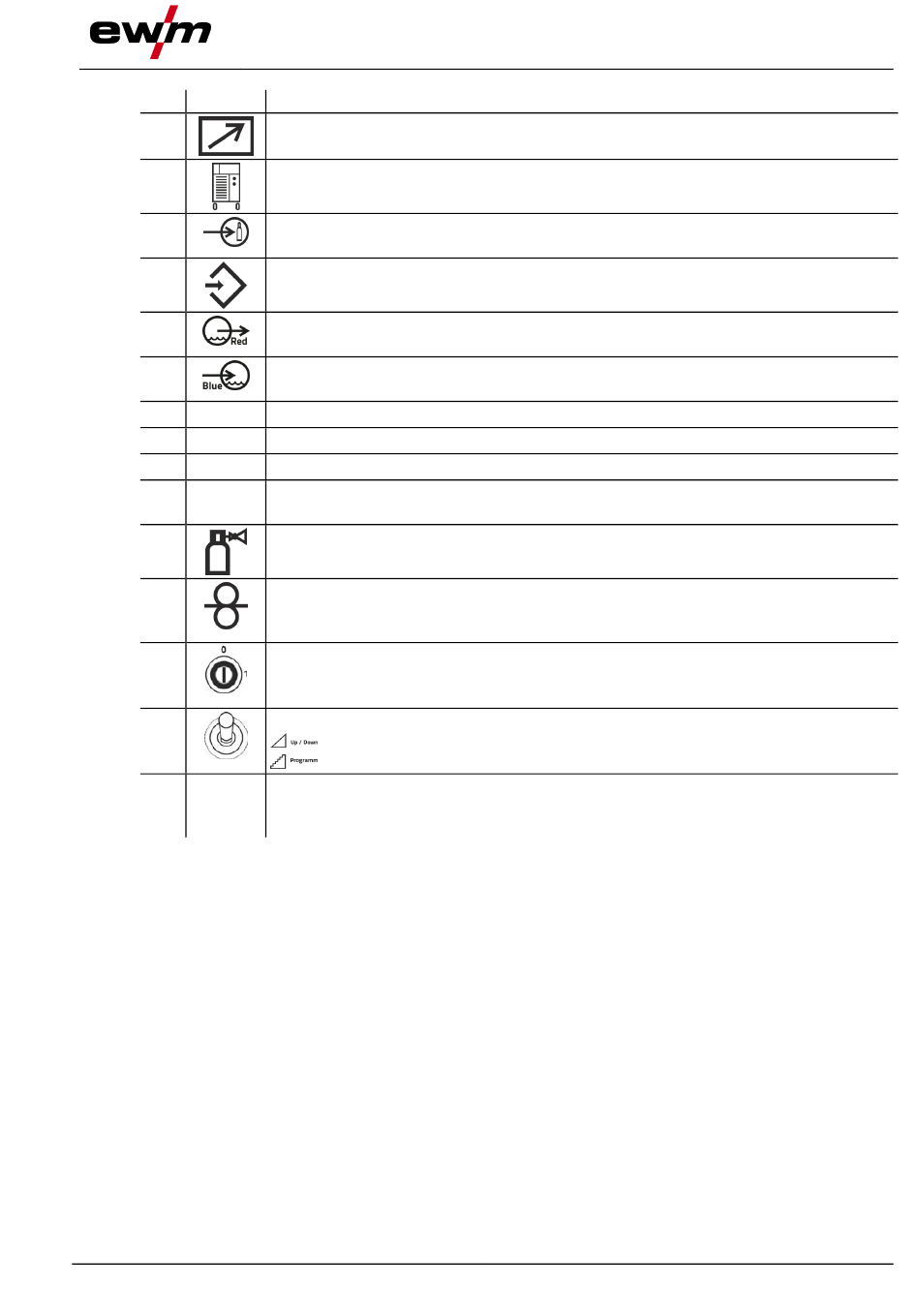

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
099-005613-EW501
05.12.2023
Machine description – quick overview
Description 0
Connection socket 7-pole (digital)
For connecting digital accessory components (remote control, etc.).
Power source welding current connector plug
Welding current connection between power source and wire feeder
Connection thread - G¼"
Shielding gas connection (inlet)
14-pole connection socket
Wire feeder control cable
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Wire spool protective cap
Wire spool holder
Wire feed unit > see 5.2.4 chapter
Lighting, inside
In power-saving mode and with MMA or TIG welding, the lighting is switched off.
Push-button gas test / rinse hose package > see 5.1.6 chapter
Wire inching push-button
For potential- and gas-free inching of the wire electrode through the hose package to
the welding torch.
Key switch for protection against unauthorised use > see 5.6 chapter
1 ---------- changes possible,G front drive-4x-EX
0 ---------- changes not possible.
Welding torch function changeover switch (special welding torch required)
--- Welding power infinitely adjustable
--- Change over programs or JOBs
Protective cap, wire feed mechanism
On the inside of the protective cap the welding task lists (JOB-List) for the relevant
welding machine series can be found.
Rear view / side view from left
