Menü-Übersicht
Messwertanzeige
Measurement display
R [k ]
C [µF]
U L1 L2 [V]
U L1 [V]
U L2 [V]
R [%]
U R [k ]
Parameter
Ansprechwerte abfragen und einstellen
Fehlerspeicher, Alarmrelais und Schnittstelle konfigurieren
Verzögerungszeiten und Selbsttestzyklus einstellen
Gerätesteuerung parametrieren
Software-Version abfragen
Historienspeicher abfragen und löschen
Zur nächsthöheren Menüebene bewegen
>
1.5 s
>
1.5 s
<
1 s
or
t > 5 Min.
ISOMETER® isoCHA425HV + AGH420-1/AGH421-1

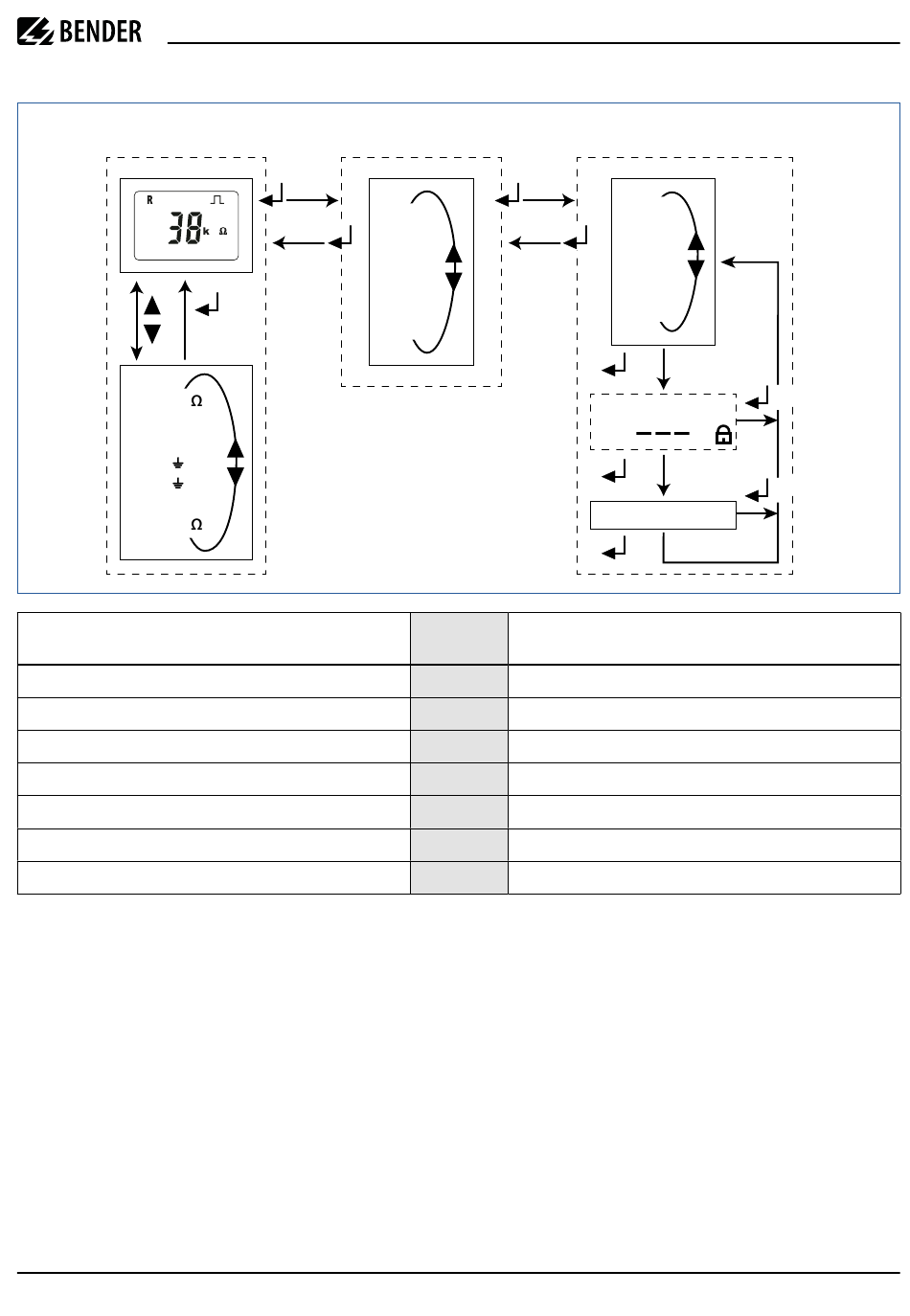

Menu overview
Menüauswahl
Menu selection
<
1 s
AL
>
out
t
SEt
InF
HiS
ESC
Menü/ Menu
Querying and setting response values
AL
Configuring fault memory, alarm relays and interface
out
Setting delay times and self-test cycles
t
Setting device control parameters
SEt
Querying software version
InF
HiS
Querying and clearing the history memory
ESC
Going to the next higher menu level
isoCHA425HV_D00404_05_Q_DEEN / 11.2023
Parametereingabe
Parameter selection
P
1
. . .
1.5 s
P
n
ESC
<
1 s
<
1 s
<
1 s
Parameter
>
1.5 s
>
1.5 s
7
