Hardware Installation and Reference Guide

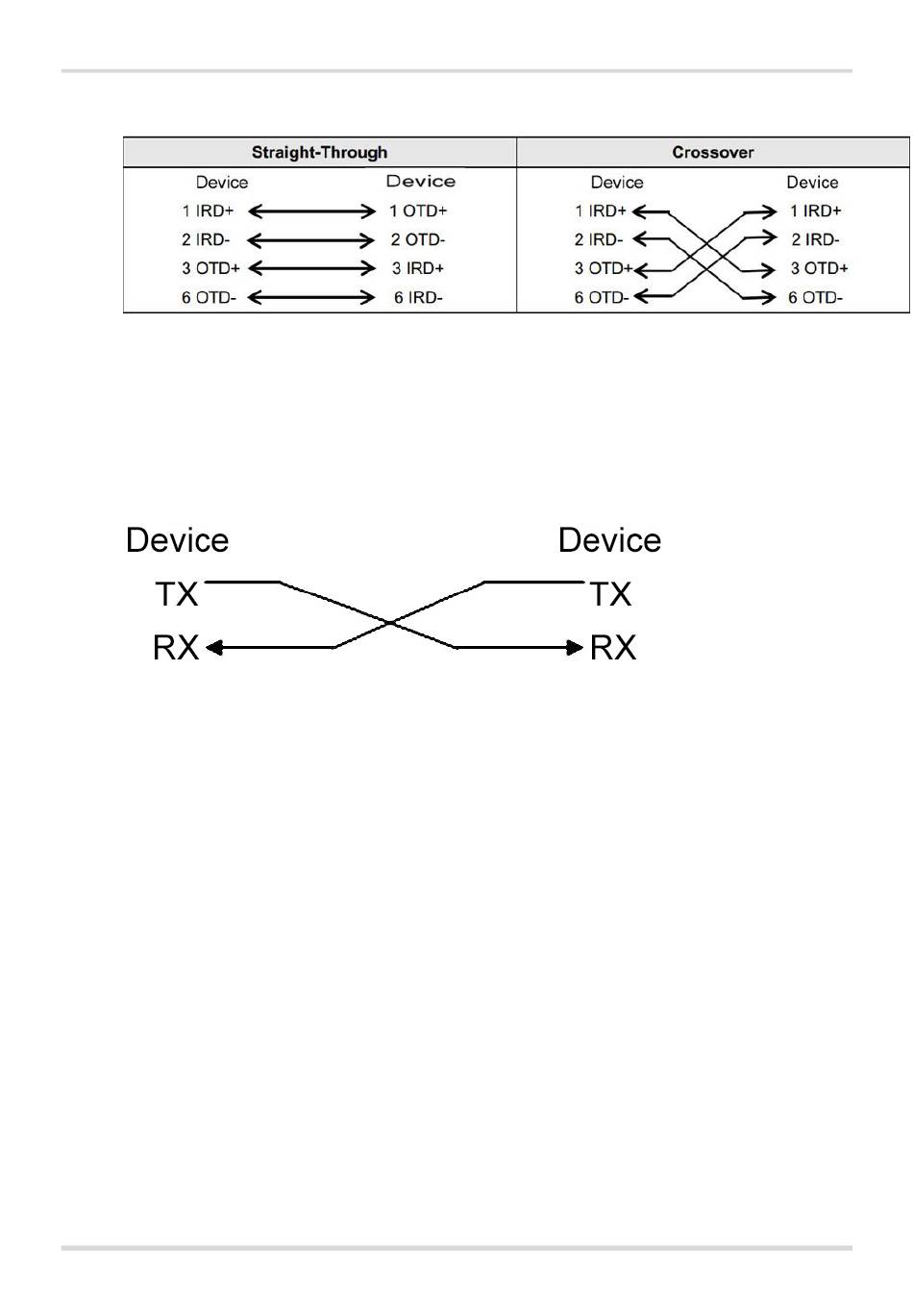

Figure 5-2
100BASE-TX/10BASE-T Twisted Pair Connections
5.2
Optical Cable Connections
Select single-mode or multimode optical cables according to the module types.
Figure 5-3
Optical Cable Connection
- 16 -
Appendix A Connectors and Media
