- Page 1 Ruijie Reyee RG-ES126S-P V2 Switch Hardware Installation and Reference Guide Document Version: V1.0 Date: 2022.11.29 Copyright © 2022 Ruijie Networks...
- Page 2 All rights are reserved in this document and this statement. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee Technical Support Website: https://ruijienetworks.com/support Case Portal: https://caseportal.ruijienetworks.com Community: https://community.ruijienetworks.com ... - Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
-
Page 5: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 Package Contents........................1 1.2 Product Appearance ........................2 1.2.1 Front Panel ........................2 1.2.2 Rear Panel ........................4 1.3 Technical Specifications ......................4 1.4 Cooling ............................6 2 Preparing for Installation ........................7 2.1 Safety Precautions ........................ - Page 6 2.2.7 Anti-interference Requirements ................... 11 2.2.8 Lightning Protection Requirements ................11 2.2.9 Installation Site Requirement ..................11 2.3 Rack Installation Requirements ....................11 2.4 Tools ............................12 3 Installing the Switch ........................13 3.1 Before You Begin ........................13 3.2 Precautions ..........................13 3.3 Mounting the Switch ........................
- Page 7 5.3.2 Installing the Ethernet Port Arrester ................22...
-
Page 8: Product Overview

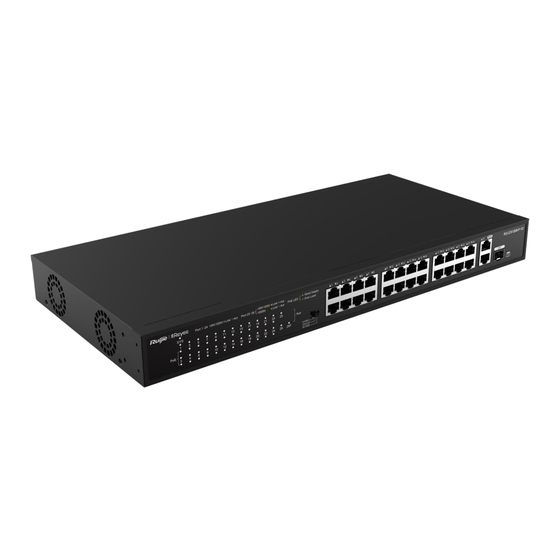

Hardware Installation and Reference Guide Product Overview Product Overview RG-ES126S-P V2 is a PoE switch with high performance and multiple working modes. The switch provides 24 10/100 Mbps self-adaptive Ethernet RJ45 ports, one 10/100/1000 Mbps self-adaptive Ethernet RJ45 port, and one GE combo port. -
Page 9: Product Appearance
Hardware Installation and Reference Guide Product Overview Product Appearance The RG-ES126S-P V2 switch provides 24 10/100 Base-TX self-adaptive Ethernet ports, one 10/100/1000 Base- TX SFP port, one 10/100/1000 Base-TX combo port, one DIP switch, one system status LED, and other LEDs on the front panel. - Page 10 Hardware Installation and Reference Guide Product Overview 10/100/1000Base-TX Copper Solid orange: The port has made a successful Port LED 10/100 Mbps link. Flashing orange: The port is transmitting and receiving data at 10/100 Mbps. Solid green: The port has made a successful 1000 Mbps link up.
-
Page 11: Rear Panel
Hardware Installation and Reference Guide Product Overview 1.2.2 Rear Panel Figure 1-3 Rear Panel of a RG-ES126S-P V2 Switch Table 1-3 Rear Panel Specifications Item Description Grounding Stud Connect the grounding stud to the protection ground with the grounding cable to provide grounding protection. - Page 12 Hardware Installation and Reference Guide Product Overview Ports 1-24 support PoE power supply. Maximum PoE output power per port: 30 W Maximum PoE output power per device: 370 W PoE Power Cable Mode A (1-2, 3-6 pairs) Pairs Maximum Power 432 W Consumption Standard mode: Flow control is enabled and all ports can communicate with each...
-
Page 13: Cooling
Hardware Installation and Reference Guide Product Overview Cooling The RG-ES126S-P V2 switch adopts fan cooling design. To ensure the normal operation of the device, maintain a minimum clearance of 10 cm (3.94 in.) around the device. Dust the device every three months to avoid blocking the ventilation openings. -
Page 14: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note ● To avoid device damage and physical injury, please read the safety precautions carefully before installing the device. ● The following safety precautions may not cover all possible dangers. 2.1.1 General Safety Precautions ... -
Page 15: Electrostatic Discharge Safety
Hardware Installation and Reference Guide Preparing for Installation Check the device carefully before shutting down the power supply. Select a correct leakage protector (also referred to as “leakage current switch” or “leakage current breaker”) for the power supply system. When there is a risk of leakage and electric shock, the power supply is automatically disconnected. -
Page 16: Ventilation Requirements
Hardware Installation and Reference Guide Preparing for Installation 2.2.2 Ventilation Requirements Maintain a proper clearance around the device for air circulation and normal heat dissipation. After various cables are connected, bundle the cables or place them in the cable management bracket to avoid blocking air inlets. -
Page 17: Grounding Requirements
Hardware Installation and Reference Guide Preparing for Installation Apart from dust, the salt, acid, and sulfide in the air in the server room must meet strict requirements. These harmful substances will accelerate metal corrosion and component aging. Therefore, the equipment room should be properly protected against the intrusion of harmful gases, such as sulfur dioxide, hydrogen sulfide, nitrogen dioxide, and chlorine gas. -
Page 18: Anti-Interference Requirements
Hardware Installation and Reference Guide Preparing for Installation Grounding required for electromagnetic compatibility (EMC) includes shielded grounding, filter grounding, noise and interference suppression, and level reference, which contribute to the overall grounding requirements. The grounding resistance should be less than 1 ohm, and the grounding lugs of the cabinet should be grounded before the running of the device. -
Page 19: Tools
Hardware Installation and Reference Guide Preparing for Installation Figure 2-1 A Standard 19-inch Rack (3) The distance between the square hole strip on the rack column and the outer side of the front cabinet door is greater than 180 mm (7.09 in.) and the thickness of the front cabinet door is less than 25 mm (0.98 in.). Therefore, the available space is greater than 155 mm (6.10 in.). -
Page 20: Installing The Switch
Hardware Installation and Reference Guide Installing the Switch Installing the Switch Caution Ensure that requirements in Chapter 2 are all met. Before You Begin The installation site provides sufficient space for heat dissipation. The installation site meets the temperature and humidity requirements of the device. ... -
Page 21: Rack Installation Requirements
Hardware Installation and Reference Guide Installing the Switch 3.3.1 Rack Installation Requirements (1) Before installing the rack, plan the available space for the rack. Reserve sufficient space for the front and rear doors of the rack for device maintenance. (2) Mount and fasten the rack at the designed location as planned. (3) Install the appropriate cable management bracket and cables. -
Page 22: Mounting The Switch On A Workbench
Hardware Installation and Reference Guide Installing the Switch 3.3.3 Mounting the Switch on a Workbench If a standard 19-inch cabinet is unavailable, you can mount the switch on a clean workbench. (1) Attach the four rubber pads to the four recessed areas on the bottom of the switch. (2) Place the switch on the workbench to ensure adequate airflow around the switch. - Page 23 Hardware Installation and Reference Guide Installing the Switch Verify that a minimum clearance of 10 cm (3.94 in.) is maintained around the device for air circulation.
-
Page 24: Verifying Operating Status
Hardware Installation and Reference Guide Verifying Operating Status Verifying Operating Status Powering on the Switch 4.1.1 Checklist before Power-on Check whether the switch is properly grounded. Check whether the switch is properly installed in the rack. Check whether the power cord is properly connected. ... -
Page 25: Appendix
Hardware Installation and Reference Guide Appendix Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps self-adaptive Ethernet port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5 or Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 m (328.08 ft). - Page 26 Hardware Installation and Reference Guide Appendix Figure 5-3 100BASE-TX/10BASE-T Twisted Pair Connection Fiber-Optic Cable Connection Please choose SMF or MMF optic cables according to the module types. Figure 5-4 Fiber-Optic Cable Connection...
-
Page 27: Mini-Gbic And Sfp Modules
Hardware Installation and Reference Guide Appendix Mini-GBIC and SFP Modules We provide GE SFP modules (Mini-GBIC modules) according to the SFP port types. You can select the module to fit your specific needs. The following models and technical specifications of some GE SFP modules are listed for your reference. -
Page 28: Lightning Protection
Hardware Installation and Reference Guide Appendix Lightning Protection 5.3.1 Installing AC Power Arrester (lightning protection cable row) The AC power port must be connected to an external lightning protection power strip to prevent the switch from being struck by lightning when the AC power cord is introduced from the outdoor and directly connected to the power port of the switch. - Page 29 Hardware Installation and Reference Guide Appendix polarity of the arrester power cord should be reversed. In this case, open the power arrester and rectify the polarity of the connection. If the LED is still Red, the arrester PE terminal has not been grounded. 5.3.2 Installing the Ethernet Port Arrester Please connect an Ethernet port arrester to the switch to prevent the damage by lightning before connecting an...
- Page 30 Hardware Installation and Reference Guide Appendix that it is in good contact with the grounding stud of the switch. Use a multimeter to confirm the contact condition after the grounding. Incomplete arrester installation. If there is more than one port connected to the peer device on the switch, arresters need to be installed on all connection ports for the purpose of lightning protection.
