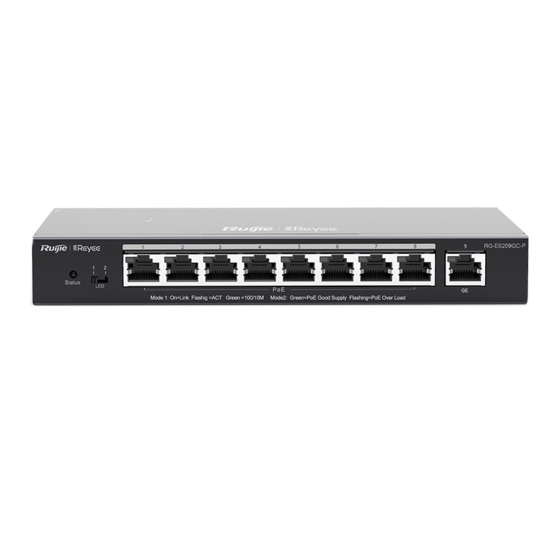

Ruijie RG-ES200 Series Switches
Web-Based Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-ES200 Series and is the answer not in the manual?

Questions and answers

Amantle Seme
February 12, 2025

How do you change deafult ip on RG-ES228GS-P,,,cant find basic setting or Lan settings on web browser

0
1 comments:
Mr. Anderson
May 14, 2025

To change the default IP address on the Ruijie RG-ES228GS switch:

1. Connect a PC to the switch and set the PC’s IP address to be in the same network segment (e.g., 10.44.77.x).
2. Open a web browser and enter the switch's default IP address (10.44.77.200) in the address bar.
3. Log in with the default username and password (admin/admin).
4. After the first login, you must reset the default password to continue configuration.
5. Once logged in with the new password, you can access the network settings to change the switch’s IP address.

The new IP address must be in the same LAN segment if you want to manage the switch from the same network.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-ES200 Series

Summary of Contents for Ruijie RG-ES200 Series

  • Page 1 Ruijie RG-ES200 Series Switches Web-Based Configuration Guide...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 Thank you for using our products. Audience This manual is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support  Case Portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com ...
  • Page 4 This manual uses the following conventions: Convention Description boldface font Commands, command options, and keywords are in boldface. italic font Arguments for which you supply values are in italics. Elements in square brackets are optional. { x | y | z } Alternative keywords are grouped in braces and separated by vertical bars.

  • Page 5: Configuration Guide

    Configuration Guide Overview 1 Overview eWeb is a Web-based management system that manages or configures devices. You can access eWeb via browsers such as Google Chrome. Web-based management involves the Web server and Web client. The Web server is integrated in a device, and is used to receive and process requests from the client, and return processing results to the client.
  • Page 6 Configuration Guide Configuration Guide Deliver or request commands through AJAX. service Return data Administrator Device Remarks The eWeb management system combines various device commands and then delivers them to the device through AJAX requests. The device then returns data based on the commands. A Web service is available on the device to process basic HTTP protocol requests.
  • Page 7 Configuration Guide Configuration Guide The device homepage appears by default. In addition, a dialog box is displayed, asking you whether to change the default password. (The factory settings of the device can be modified only after the password is changed as prompted.) 2.2 Default Password Configuration Under factory default settings, the eWeb management system displays a prompt, asking you whether to change the password.

  • Page 8: Introduction To The Web Gui

    Configuration Guide Configuration Guide Enter a new password according to password rules and then click Save. In the displayed dialog box, click OK. Keep in mind the configured device management password. After password change, the eWeb management system may need re-authentication and login. 2.3 Introduction to the Web GUI The figure below shows the Web GUI of RG-ES226GC-P.
  • Page 9 Configuration Guide Configuration Guide Function menu bar System Switch port status bar information bar Port details list and basic function configuration bar The Web GUI consists of the left and right portions. The left portion is the menu bar and provides links to all configuration functions of the device, such as Monitoring and VLAN Settings.
  • Page 10 Configuration Guide eWeb Configuration When a port is down, the port icon is grayed out . When a loop occurs on a port, the port icon is displayed in yellow . When a port works properly, the port icon is displayed in green Description of the content area: Texts in orange indicate a description of a function.

  • Page 11: System Settings

    Configuration Guide eWeb Configuration Change the device name. Function link Downlink device search Port configuration area The following figure shows a multi-DHCP alarm displayed on the homepage. Move the cursor over the icon. Alarm information (VLAN, port, IP address, and MAC address) is displayed. 3.2 System Settings 3.2.1 Device Info Details about the device are displayed.
  • Page 12 Configuration Guide eWeb Configuration 3.2.2 IP Settings Configure the management IP address and management VLAN for the device. Auto Obtain IP is set to Enabled by default. When VLAN Settings is set to off, the management VLAN is 1. When VLAN Settings is set to on, the following figure is displayed.

  • Page 13: Account Settings

    Configuration Guide eWeb Configuration When VLAN Settings is set to on, select the management VLAN from configured VLANs (you can choose VLAN Settings > VLAN Members to add a VLAN). The device will be disconnected for a short time during IP address configuration. If Auto Obtain IP is set to Enabled, the device needs to obtain an IP address from the uplink device, or you can enter the management IP address (10.44.77.200) for Web management.

  • Page 14: Restore Default

    Configuration Guide eWeb Configuration 3.2.5.2 Online Upgrade Online upgrade will keep your current configuration. If there is a new version available, the Upgrade button can be clicked. Click the Upgrade button and then confirm upgrade. The device will download the new version from the cloud and upgrade to the target version.

  • Page 15: Port Statistics

    Configuration Guide eWeb Configuration The device can discover and display switches in the same management VLAN. The number of discovered switches in a management VLAN varies with the switch model: The following models can discover up to 32 switches in the management VLAN: RG-ES226GC-P, RG-ES218GC-P, RG-ES224GC, and RG-ES216GC.

  • Page 16: Cable Diagnostics

    Configuration Guide eWeb Configuration 3.3.3 Cable Diagnostics You can learn the general cable status of ports through cable diagnostics, for example, whether a cable is short-circuited or disconnected. Click Start. Test results will be displayed.

  • Page 17: Loop Guard

    Configuration Guide eWeb Configuration 3.3.4 Loop Guard After loop guard is enabled (which is disabled by default), a port causing a loop on the current device will be automatically disabled. After the loop is removed, the port is restored automatically. 3.4 Switch Settings 3.4.1 Port Settings On the Port Settings page, you can configure the port status, speed, duplex mode, and flow control attribute in batches.

  • Page 18: Port Mirroring

    Configuration Guide eWeb Configuration A disabled port cannot transmit or receive packets (the PoE function is not affected). Disabling all ports of a switch will make the switch unmanageable. Therefore, exercise caution when disabling ports. 3.4.2 Port Mirroring Port mirroring forwards input/output packets of one or more source port to the destination port to monitor the network. Destination mirroring ports on RG-ES205C-P, RG-ES205GC-P, RG-ES209C-P, and RG-ES209GC-P can only capture packets.

  • Page 19: Port Isolation

    Configuration Guide eWeb Configuration 3.4.3 Port Isolation Port isolation implements layer-2 isolation of packets. After port isolation is enabled (which is disabled by default), data can be forwarded only between uplink ports and downlink ports, and downlink ports cannot forward packets to each other.

  • Page 20: Dhcp Snooping

    Configuration Guide eWeb Configuration After VLAN Settings is set to off, the VLAN ID column will not be displayed. 3.4.6 MAC List The MAC Address Info page lists MAC addresses learned by the device. Click Clear Dynamic MAC. The device re-obtains the list of learned MAC addresses. After VLAN Settings is set to off, the VLAN ID column will not be displayed.

  • Page 21: Vlan Settings

    Configuration Guide eWeb Configuration The port connected to the DHCP server (uplink port) is configured as the trusted port generally. 3.5 VLAN Settings You can add or delete VLANs, and configure port VLANs (only when VLAN Settings is set to on). 3.5.1 VLAN Members When VLAN Settings is set to off, the page is shown in the figure below: When VLAN Settings is set to on, the page is shown in the figure below:...
  • Page 22 Configuration Guide eWeb Configuration When VLAN Settings is set to on, the page is shown in the figure below: The VLAN Settings page is divided into two parts: The upper part enables port VLAN configuration. You can select a port, set the VLAN type (Access or Trunk; when Trunk is selected, Permit VLAN can be configured), Permit VLAN, and Native VLAN, and click Save to save the port VLAN configuration.

  • Page 23: Qos Settings

    Configuration Guide eWeb Configuration 3.6 QoS Settings QoS settings include the port rate and storm control function. 3.6.1 Port Rate You can configure the input and output rates for a port. The Port Rate page is divided into two parts: Configuration part: Select one or more ports, set the port type and whether to enable rate limiting (if yes, enter the rate limit value of the port), and click Save.

  • Page 24: Storm Control

    Configuration Guide eWeb Configuration For RG-ES226GC-P, RG-ES218GC-P, RG-ES205GC-P, and RG-ES209GC-P, the range of the port rate limit is from 1 Mbit/s to 1000 Mbit/s. 3.6.2 Storm Control The Storm Control page consists of the port storm control configuration and display. Configuration part: Specify the storm control type, select ports, enable storm control, and enter the storm control rate.
  • Page 25 Configuration Guide eWeb Configuration System status: The total power, used power, remaining power, and work status of the PoE function of the device are displayed. Port status: The PoE voltage, current, power, and current power status of ports are displayed. You can control whether to enable PoE function on a port and restart PDs.
  • Page 26 Configuration Guide FAQs 4 FAQs Q1: What can I do when I failed to log into the eWeb management system? A: Perform the following steps: (1) Check that a PC network cable is correctly connected to a device port and the port indicator blinks. (2) Before accessing the setup GUI, you are advised to configure a static IP address for the PC.
