- Page 1 Security Intelligent 10G Multi-layer Switch S5750 Series Installation Manual...
- Page 2 The information contained in this manual may be modified without notification. Ruijie Networks has tried its best to maintain the accuracy and reliability of this manual on the website.Ruijie Networks takes no responsibility for the miss, inaccuracy or error and the resulting damage and loss in this manual.
- Page 3 10.34 Deleted Li Lingpeng S5750-48GT/4SFP-A description and modified the product technical specifications. 2009-03-23 1.31 1.31 Modified the dimensions of Li Lingpeng the S5750 series cabinets, that is, product technical specifications. 2009-04-08 1.31 1.32 10.34 Added Pang S5750P-48GT/4SFP V2.0 Dengyuan modified S5750-24SFP S5750-24SFP/12GT.
- Page 4 Appendix A “Connectors and Connection Media”. Related Documents Software Manual——covering CLI commands, software configuration guide, and version release notes. Obtaining Documentation You can obtain the documentation you need through the following channels: Internet: You can obtain the latest on-line documentation at: http://www.ruijie.com.cn...
- Page 5 Documentation CD-ROM: The documentation of Ruijie Networks switches is stored in the CD-ROM package, which is provided to you together with the product you purchase. The CD-ROM is updated frequently, and may be more current than the printed documents. Obtaining Technical Assistance Ruijie Networks provides excellent technical support services for all our products.
-
Page 7: Table Of Contents
Contents Product Overview ..........................1-1 Product Overview ........................1-1 Technical Features of RG-S5750 ....................1-2 1.2.1 Product Features ......................1-2 1.2.2 Technical Specifications ....................1-4 Product Appearance ........................ 1-12 RG-S5750 10G Expansion Module ..................1-17 S5750P POE Function ......................1-18 Installation ............................ -
Page 9: Product Overview
NM, at a high performance-price-ratio, best meeting the requirements of enterprise networks for high speed, security, and intelligence. Currently, S5750 series covers seven models so as to meet kinds of application of users: S5750-24GT/12SFP: 24 10/100/1000M adaptive RJ45 ports, multiplexing 12 1000M SFP ports. -
Page 10: Technical Features Of Rg-S5750
Abundant and perfect routing capability as well as super-large routing table can satisfy dynamic routing of large-scale networks. The routing forwarding based on LPM hardware makes RG-S5750 Series not only fit for large-scale networks, but also prevent the attack of network virus. It can ensure the wire-speed forwarding of telegrams and the security of equipments. - Page 11 Hardware Manual Chapter 1 Product Overview Source-IP-address-control-based Telnet and Web equipment access control reinforces the security of the network management and stops the malicious attack and manipulation of equipment by hackers. Broadcast storm suppression based on port rate percentage and rate PPS to ensure network security;...
-
Page 12: Technical Specifications
Chapter 1 Product Overview Hardware Manual The S5750P-48GT/4SFP supports Ruijie 53.5 V optional redundancy power systems RPS500-A or RPS1100-A, which provide the switch with excellent power redundancy for higher fault tolerance and normal running time. Easy to use and manage The multiplexing multi-gigabit interface can flexibly meet the connection to many gigabit copper and many gigabit fiber links. - Page 13 Hardware Manual Chapter 1 Product Overview M5700--01XFP: 1-port XFP interface 10G conversion board M5700-STACK:Single port 10G stack module. 10G fiber interface module (300M), applied together with the M5700-01XENPAK conversion board 10 G fiber interface module (10KM), applied together with the M5700-01XENPAK conversion board.
- Page 14 Chapter 1 Product Overview Hardware Manual Other protocols DHCP Relay, DNS Client Jumbo Frame Supported Dimensions 440 x 435 x 44 mm (L x W x H) About 8.5 kg for S5750 and S5750S Weight About 9 kg for S5750P S5750, S5750S: AC voltage: 176-264 V AC, at 48 Hz - 60 Hz, with maximum current <0.4 A...
- Page 15 Hardware Manual Chapter 1 Product Overview M5700--01XFP: 1-port XFP interface 10G conversion board M5700-STACK: Single port 10G stack module 10G fiber interface module (300M), applied together with the M5700-01XENPAK conversion board 10 G fiber LR interface module (10KM), applied together with the M5700-01XENPAK conversion board.
- Page 16 Chapter 1 Product Overview Hardware Manual Dimensions 440 x 435 x 44 mm (L x W x H) Weight About 8.5 kg AC voltage: 176-264 V AC, at 48 Hz - 60 Hz, with maximum current <0.4 A Power supply DC voltage (RPS power): 10.6 - 13.2 V DC, with maximum current <6.6 A Power...
- Page 17 Hardware Manual Chapter 1 Product Overview 10G fiber SR interface module (300m), applied together with M5700-01XFP conversion board 10G fiber LR interface module (10 Km), applied together with the M5700-01XFP conversion boards 10G fiber ER interface module (40 Km), applied together with the M5700-01XFP conversion board L2: wire speed (102 Mpps) Packet forwarding...
- Page 18 Chapter 1 Product Overview Hardware Manual consumption Operating temperature: 0ºC - 45ºC Temperature Storage temperature -40ºC - 70ºC Operating humidity: 10% ~ 90% RH Humidity Storage humidity: 5% - 90% RH Table 1-4 Technical speifications for the S5750 - 4 S5750P-48GT/4SFP Product model Fixed port...
- Page 19 Hardware Manual Chapter 1 Product Overview standard Standard IP ACL (hardware ACL based on the IP address) Extended IP ACL (hardware ACL based on the IP address or TCP/UDP port number) MAC extended ACL (hardware ACL based on the source MAC address based, destination MAC address and optional Ethernet type) Time-based ACL...
-
Page 20: Product Appearance

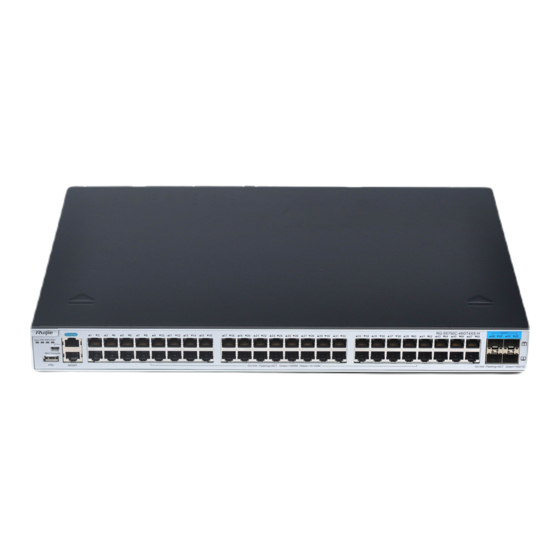

Chapter 1 Product Overview Hardware Manual module: <845 W; Temperature Working temperature: 0ºC to 45ºC Storage temperature: -40ºC to 70ºC Humidity Working humidity: 10% to 90% RH Storage humidity: 5% to 90% RH Product Appearance Figure 1-1 Appearance of the RG-S5750(S)-24GT/12SFP Figure 1-2 Appearance of the RG-S5750P-24GT/12SFP 1-12... - Page 21 Hardware Manual Chapter 1 Product Overview Figure 1-3 Appearance of the RG-S5750-24SFP/12GT Figure 1-4 Appearance of the RG-S5750(S)-48GT/4SFP Figure 1-5 Appearance of the RG-S5750P-48GT/4SFP Table 1-5 LEDs on the Front Panel Identification Applicable Model Description Detailed Information l S5750S-Note 1 OFF: The switch is not powered on.
- Page 22 Chapter 1 Product Overview Hardware Manual Identification Applicable Model Description Detailed Information l S5750P-48 –Note Solid red: The switch is faulty. OFF: The redundancy power supply is not connected or not turned on. l S5750S Orange: The redundancy power supply is l S5750 working.
- Page 23 Hardware Manual Chapter 1 Product Overview Identification Applicable Model Description Detailed Information l S5750P-48 l S5750S l S5750 10/100/1000M l S5750P-24 For the colors of the LED and their RJ45 port adaptive RJ45 meanings, see 0 Descriptions of Port LED. S5750-24SFP port LED /12GT...
- Page 24 Chapter 1 Product Overview Hardware Manual Item Status Description Solid orange POE power failure The port is not connected. The port is not supplying power. Solid green The port is supplying power normally. The power needed by the mounted device exceeds S5750P-48GT/4 the maximum capacity of the port;...
-
Page 25: Rg-S5750 10G Expansion Module
M5700-STACK: one-port 10G stack module, used with our CAB-STACK-CX4/50CM cable or CAB-STACK-CX4/1M cable, to provide the stack function for the S5750 series switch. The following diagrams show the appearances of these three conversion boards. Please note that the conversion board you buy does not include the optical transceiver module shown in the diagram, which should be ordered separately. -
Page 26: S5750P Poe Function
Chapter 1 Product Overview Hardware Manual Figure 1-7 M5700-01XENPAK 10G Conversion Board Figure 1-8 M5700-STACK Single-port 10G Stack Module S5750P POE Function POE, the abbreviation for Power over Ethernet, is the latest specification (802.3af) that transmits both data and electric power on the existing standard Ethernet cable and supports compatibility with the existing Ethernet systems and users. - Page 27 Hardware Manual Chapter 1 Product Overview so that the MOD-LED turns green, the port LED of the switch returns to indicate the switching status. 1-19...
-
Page 29: Installation
Hardware Manual Chapter 2 Installation Installation Prior Preparation This switch is already prepared for installation at delivery. Before connecting the power supply and the network, please check all the accessories against the packing list in the packaging carton. Read the installation instructions carefully before you power on the system. Warning Do not place the switch close to water or in a damp place. -
Page 30: Rack Mounting
Chapter 2 Installation Hardware Manual Rack Mounting You can also mount the switch in the wiring section of a standard 19-inch rack. First fasten the accessories for rack mounting from the carton onto both sides of the switch and then mount the switch into the 19-inch rack with screws. -
Page 31: System Connection
Hardware Manual Chapter 2 Installation Figure 2-2 Schematic Diagram for Fastening the Switch Please ensure that the ventilation holes and fans on both sides and at the back of the chassis are not blocked. Caution System Connection 2.4.1 Connecting the RJ-45 Port Use shielded or unshielded twisted pair cables with RJ-45 connectors on both ends. -
Page 32: Connecting Optical Fibers
Chapter 2 Installation Hardware Manual 2.4.2 Connecting Optical Fibers Connect the optical module on the switch by using an optical fiber whose connector matches that of the optical module. When you are doing this, connect the RX end of one party to the TX end of the other party to ensure correct Rx/Tx channel connection. -
Page 33: Optional Installation Procedure
Hardware Manual Chapter 2 Installation normal and the switch starts initialization. Optional Installation Procedure This section describes the procedure that may be useful to you, depending on your on-site needs and how you configure your switch. If you want to configure the switch via the CLI, you must first connect the Console port of the switch to the computer. -
Page 35: Troubleshooting
Hardware Manual Chapter 3 Troubleshooting Troubleshooting Common Troubleshooting Procedures Symptom Possible Cause Solution Forgetting the Please contact the Ruijie management Networks Customer Service interface login Department for technical password support. The power supply does not Verify that the power socket in The status LED does work;... - Page 36 The RPS power supply used is Use the RPS power supply not the specified model; specified by Ruijie; The RPS power LED The RPS power supply fails; Replace the RPS power supply; does not turn on...
-
Page 37: Connectors And Connection Media
Series Hardware Manual Appendix A Connectors and Connection Media Connectors and Connection Media A.1 1000BASE-T/100BASE-TX/10BA SE-T Port The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m. -
Page 38: A.2 Optical Fiber Connection
Appendix A Connectors and Connection Media Hardware Manual Figure A-3 shows the connections of the straight-through and crossover twisted pairs of the 100BASE-TX/10BASE-T. Figure A-3 Connections of the Twisted Pairs of the 100BASE-TX/10BASE-T Crossover Straight-Through A.2 Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected.
