Evaluation Board User Guide
Double-click the plugin to open the board view. A successful hardware connection is indicated by a green indicator in the
19.
AD8460 Board or AD8460 FMC Eval Board tab.
The AD8460 main functions are labeled in the Block Diagram View or Chip View. This view can be accessed by double-
20.
clicking the AD8460 symbol in the board view. This view provides a basic representation of the board's functionality.
analog.com

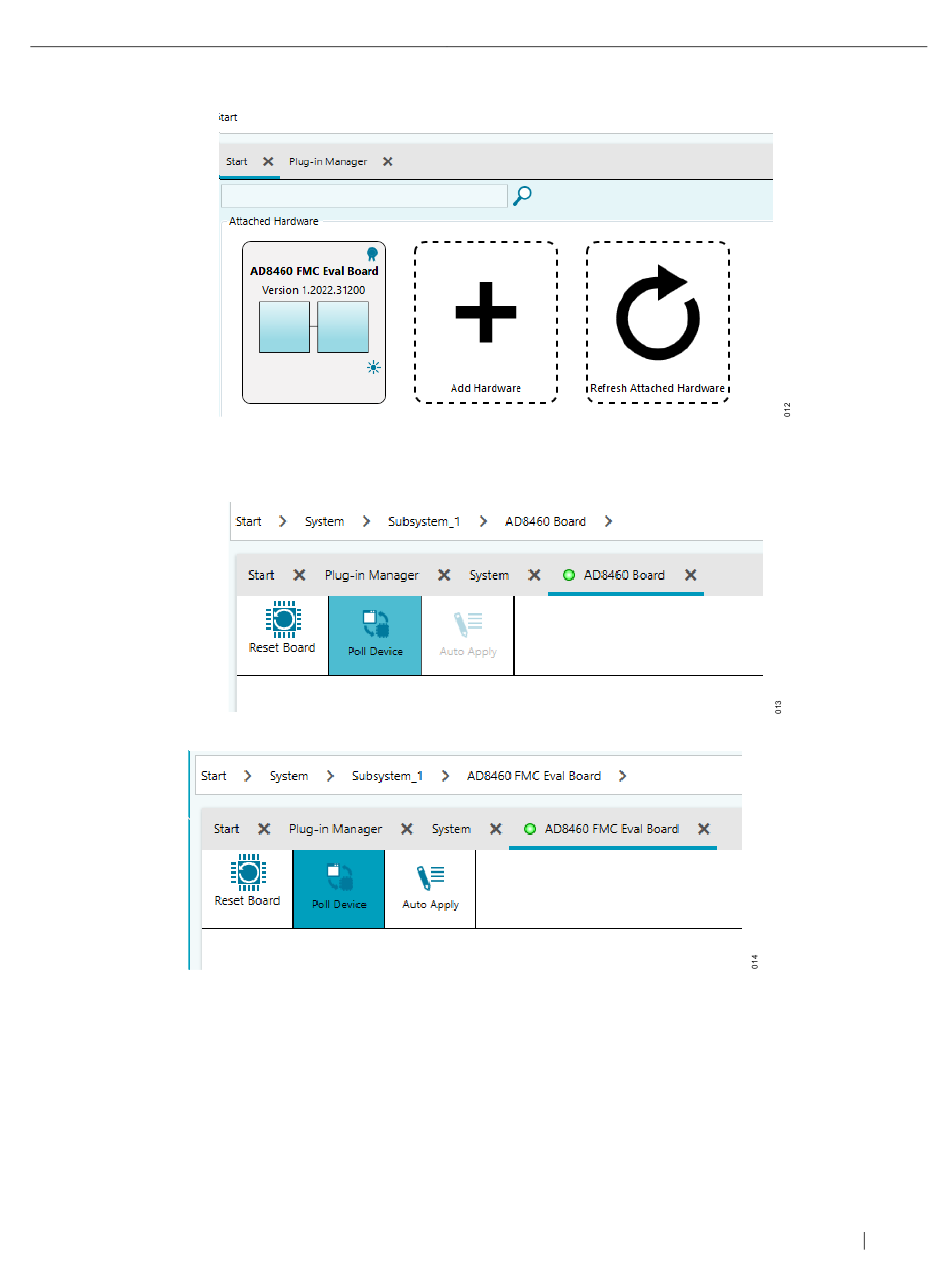

Figure 14. Successful Connection Indicator for FMC Connected Board
Figure 15. AD8460 Board View for SDP Connected Board
Figure 16. Successful Connection Indicator for FMC Connected Board
AD8460
Rev.0 9 of 31
