Mount the heat sink and secure four screws (PN 9902) onto the board with four hex nuts (PN HNSS440), as shown in
3.
7. Use a torque screwdriver to alternatively tighten the four screws, alternating diagonally like tightening lug nuts on a car tire,
to 6 in-oz on each.
Secure the four fan standoffs (PN 2114-440-AL) onto the board with four screws (PN 9900) from the bottom of the board, as
4.
seen in Figure 8.
analog.com

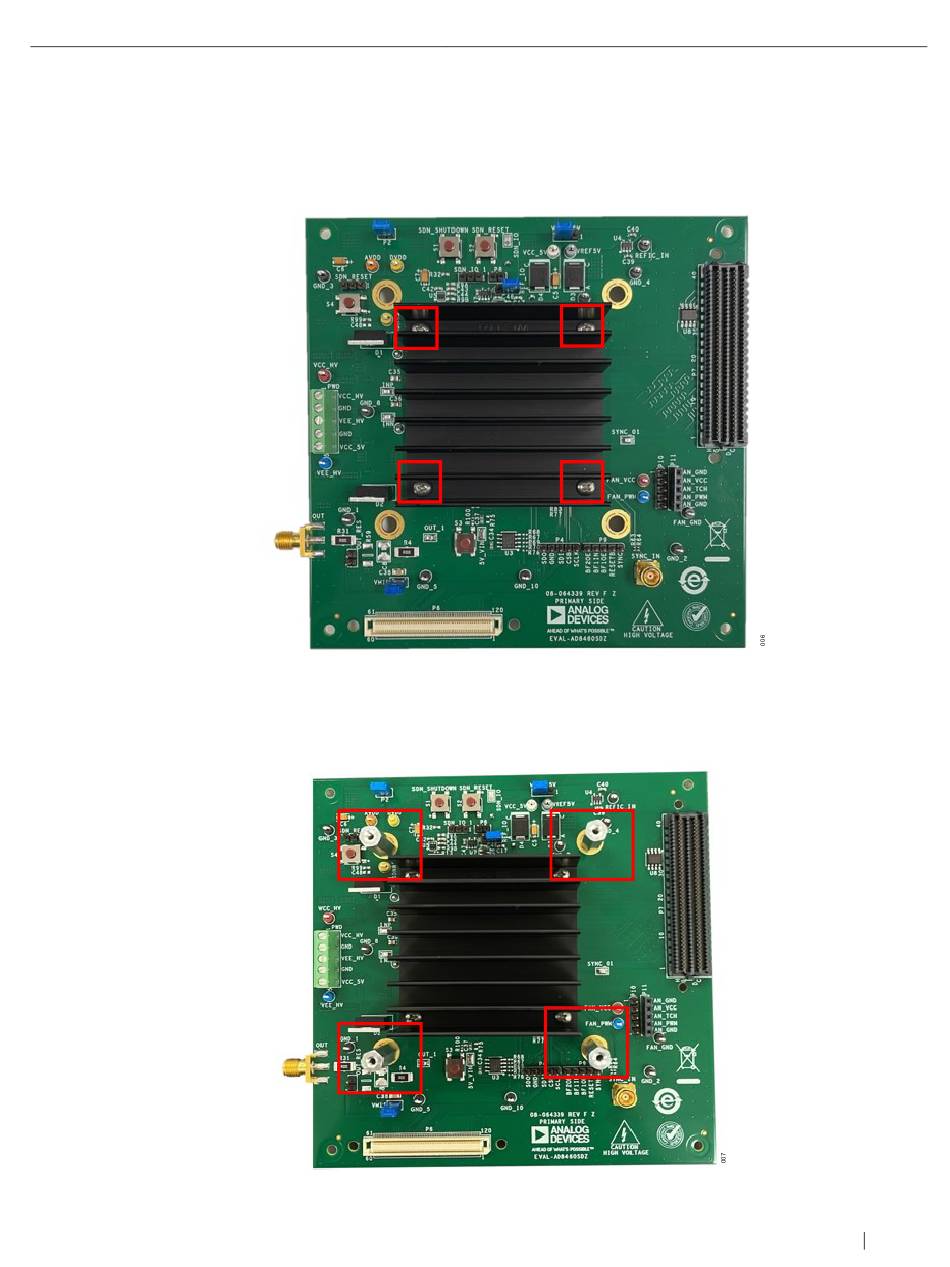

Figure 7. AD8460 Evaluation Board with Heat Sink
Figure 8. AD8460 Evaluation Board with Fan Standoffs Attached
