Evaluation Board User Guide
b. Select the desired vector from the Channel0 Data dropdown.
c. Click Preview to double check the selected vector.
d. Click Zoom to Fit in the waveforms tab so the preview looks like
e. Click Download to transmit the vector to the FPGA. Downloading the vector may take a minute. The
vector is ready when the waveform reverts to default preview, as in
Issues section if the desired output does not appear. There is a known issue where the vector generator tool only
produces a square waveform.
f. Click Play to play the downloaded vector. Upon clicking, this changes to a Stop to cease the vector output
5. The output waveform can be measured at OUT_1 test point using an oscilloscope.
6. For other waveforms:
a. Review the vector generation tool online for information on how to generate waveforms.
b. Select the preferred waveform under the Common dropdown.
c. Set up the desired waveform and see steps 3 to 5 to download and verify the waveform.
Note: It may take multiple Download → Play before the output is displayed.
analog.com
A

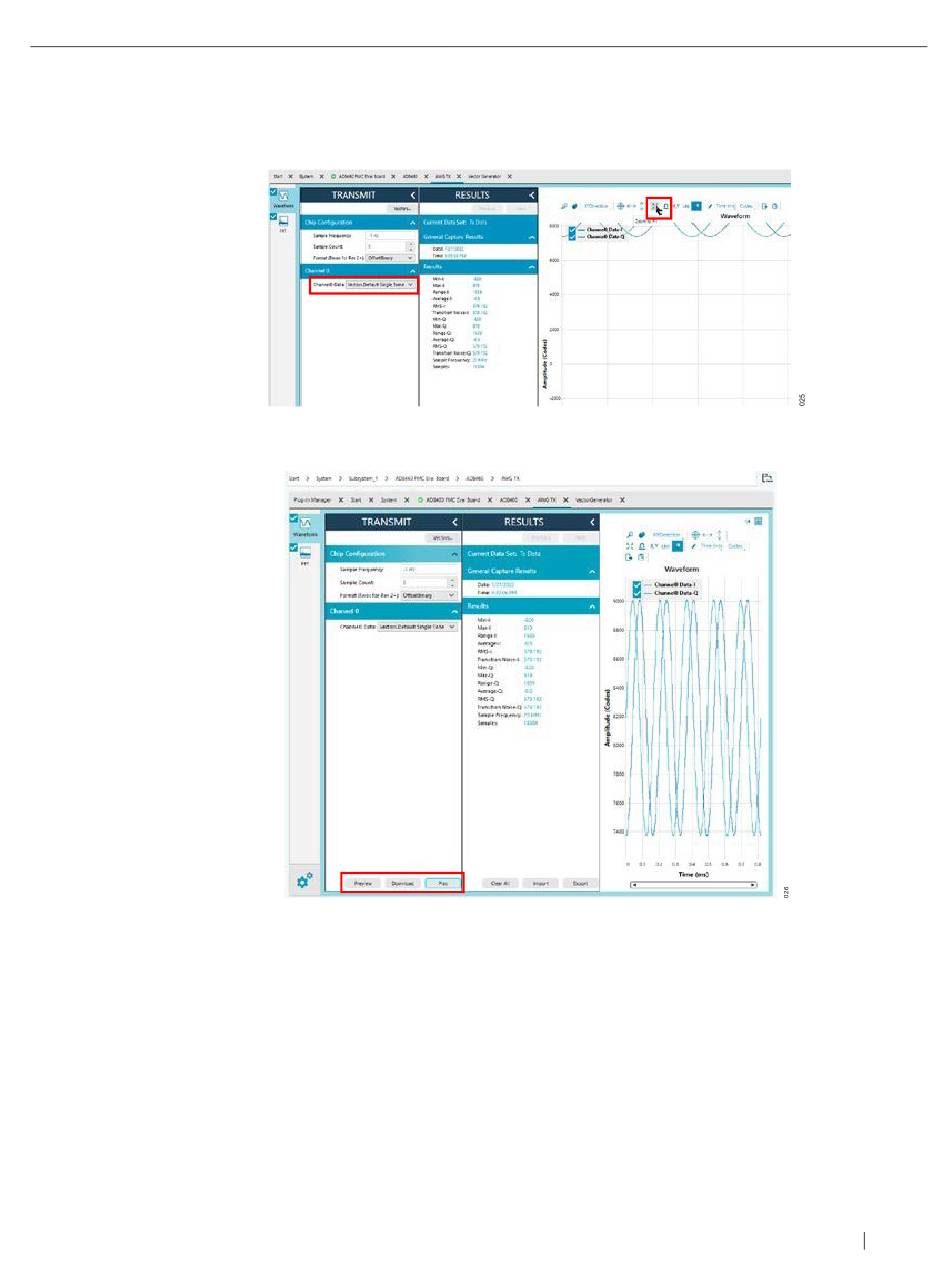

Figure 27. Vector Selection and Default Preview
Figure 28. Full Preview of Selected Vector
AD8460
B
Figure 28.
Figure 28. Refer to item 2 in the Known
Rev.0 16 of 31
