PARALLEL
INPUTS
(DB0 TO DB13)
SPI
Using the Top Bar
Apply Changes: Apply all the values to the device and then read back all the values from the device to ensure consistency
with the GUI's indicators.
Read All: Read all hardware registers from the device.
Note that by clicking Read All, all software changes not applied to the device are removed.
Reset Chip: Reset the hardware to its default state.
Diff: Performs no action in case of the AD8460 plugin.
Software Defaults: Shows software default values. This can be helpful in reverting to software defaults. These changes
can be applied to the hardware by clicking Apply Changes.
Note that by clicking Read All, all software changes not applied to the device are removed.
Memory Map Side-By-Side: Shows the memory map of the AD8460 side by side with the chip plugin. This can be useful
in seeing what changes to the plugin bind with which hardware register.
Using Macros
macros to save the previous states of the evaluation process. Access macros from the left sidebar under Tools
Use
(Figure 20). Macros can also be saved as a script and run again.
Perform the following actions from the Macro Tools:
(Figure 21) Toolbar from left to right:
Record/Stop: Record/stop recording commands.
analog.com
SYNC

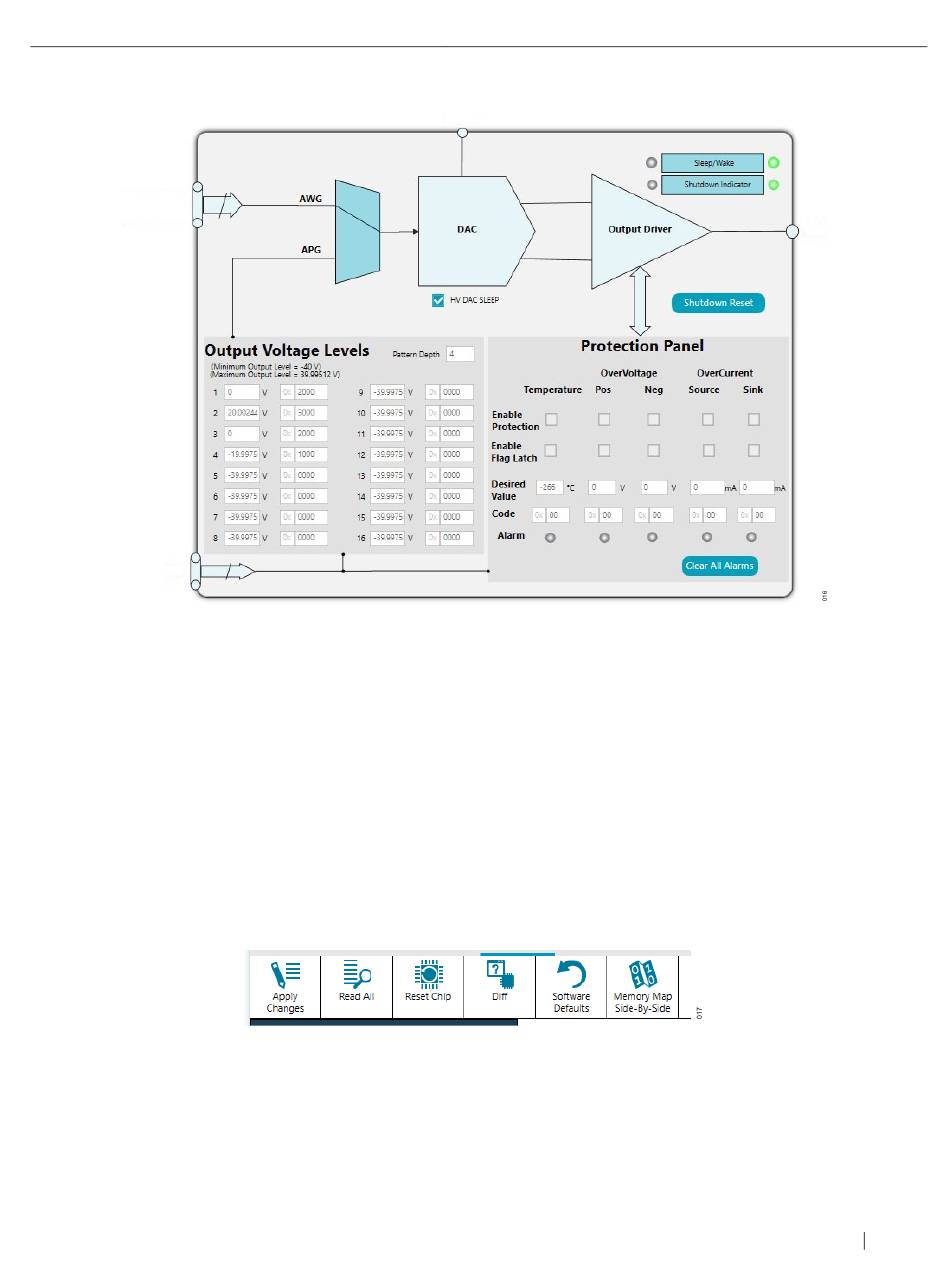

Figure 18. AD8460 Plugin Chip View Block Diagram
